Electronic Test
Electronic test is a category focused on evaluating the functionality and performance of electronic devices. This includes testing methods such as automated testing, manual testing, and simulation to ensure that electronic components meet quality standards and specifications. Electronic test equipment like oscilloscopes, multimeters, and signal generators are commonly used to measure and analyze electronic signals. This category covers a wide range of industries including telecommunications, automotive, aerospace, and consumer electronics. Whether testing PCBs, integrated circuits, or electronic systems, Electronic Test plays a crucial role in verifying the proper operation and reliability of electronic devices.
-

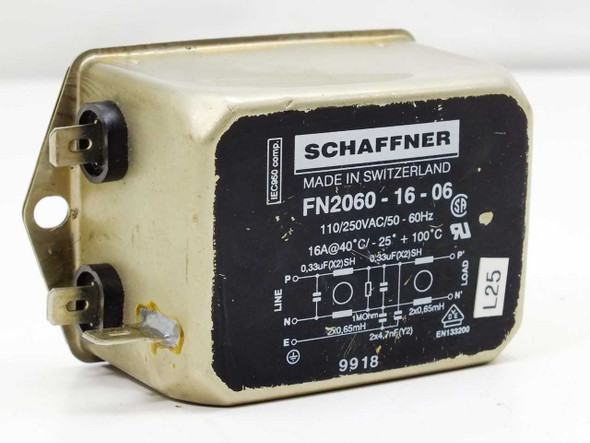

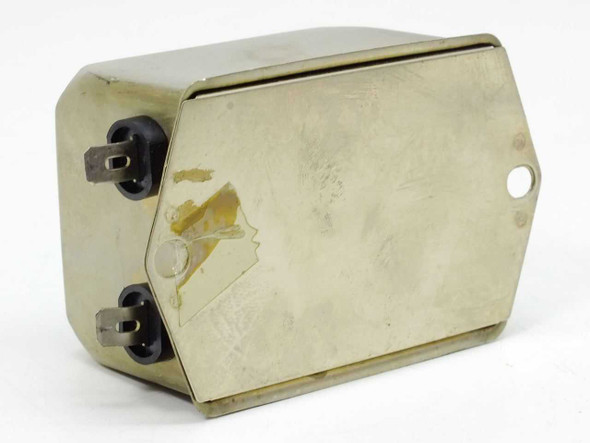

Schaffner FN2060-16-06 EMI Line Filter 110/250VAC 16A 50-60Hz IEC EN133200
Schaffner
$25.00Was: $50.00Schaffner FN2060-16-06 EMI Line Filter 110/250VAC 16A 50-60Hz IEC EN133200The Schaffner FN2060-16-06 is a single-phase EMI/RFI mains line filter rated for 110/250VAC at up to 16 amps continuous (at 40°C). Manufactured in Switzerland to IEC and EN...46231- SKU:
- 46231
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Schaffner
- Model:
- FN2060-16-06
- MPN:
- FN2060-16-06
- Type:
- EMI / RFI Mains Line Filter
- SKU:
- 46231
- Voltage Rating:
- 110/250VAC
- Current Rating:
- 16A
- Frequency:
- 50-60Hz
- Phase:
- Single Phase
- Filter Topology:
- Two-stage LC, 0.33µF + 0.33µF, 2x0.65mH, 2x4.7nF (Y2)
- Leakage Resistance:
- 1MOhm
- Standards Compliance:
- IEC 60950, EN133200, UL Listed
- Country/Region of Manufacture:
- Switzerland
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; no additional accessories included.
- Form Factor:
- Chassis Mount / Panel Mount
- Connector / Terminals:
- Quick-connect (faston) blade terminals
- Condition Notes:
- Schaffner FN2060-16-06 EMI line filter in good used condition. Inspected and pulled from a working environment. Label clean and legible; chassis shows light scuffing and adhesive residue on rear. Terminals intact.
$25.00Was: $50.00 -
Keithley M1142 Voltage Signal Conditioner RS-485 +/-10V 0006 10-Pin Made in USA
Keithley
$65.00Was: $125.00Keithley M1142 Voltage Signal Conditioner RS-485 +/-10V 0006 10-Pin Made in USAThe Keithley M1142 is a compact voltage signal conditioner module designed for use in industrial data acquisition and PLC systems. It accepts analog voltage inputs in the...46229- SKU:
- 46229
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 0.45 LBS
- Brand:
- Keithley
- Model:
- M1142
- MPN:
- M1142
- Type:
- Voltage Signal Conditioner
- SKU:
- 46229
- Condition:
- Used – Pulled from Working Environment
- Signal Type:
- Voltage
- Voltage Range:
- +/-10V
- Interface:
- RS-485
- Connector Type:
- 10-Pin
- Configuration Code:
- 0006
- CE Certified:
- Yes
- Country/Region of Manufacture:
- United States
- Form Factor:
- Module
- Compatible With:
- Keithley KPCI, MetraByte, PLC data acquisition systems
- Seller Notes:
- Unit only; pulled from working environment, inspected.
- Condition Notes:
- Keithley M1142 Voltage Signal Conditioner, used, inspected, pulled from a working environment. Housing intact with minor scuffs. Label clean, 10-pin connector and studs present, no visible damage.
$65.00Was: $125.00 -
Huntington Electric FSE-1000 HE11005 10 Ohm 5P Wirewound Resistor w/ Holder
Huntington Electric
$28.00Was: $60.00Huntington Electric FSE-1000 HE11005 10 Ohm 5P Wirewound Resistor w/ HolderThe Huntington Electric FSE-1000 is a tubular wirewound power resistor rated at 10 ohms with a 5% tolerance, identified by part number HE11005. It is mounted in a steel chassis...46182- SKU:
- 46182
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Huntington Electric
- Model:
- FSE-1000
- MPN:
- HE11005
- Type:
- Wirewound Power Resistor
- SKU:
- 46182
- Resistance:
- 10 Ohm
- Tolerance:
- 5%
- Construction:
- Tubular Wirewound
- Mounting:
- Chassis Mount with Steel Holder/Bracket
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Includes steel mounting holder with bracket feet
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Huntington Electric FSE-1000 HE11005 10 Ohm 5P wirewound resistor. Tested and in working order. Steel mounting holder included. Light surface wear on bracket; markings fully legible.
$28.00Was: $60.00 -

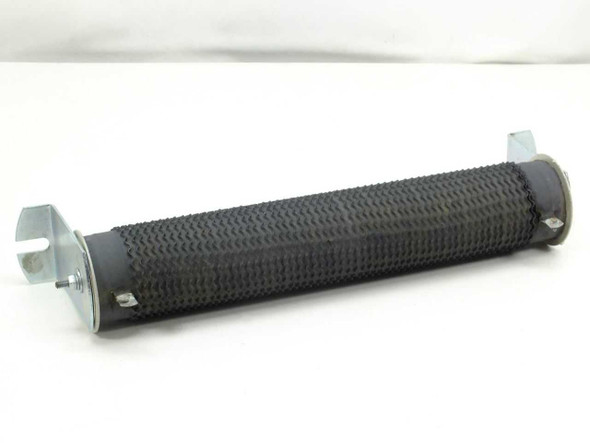

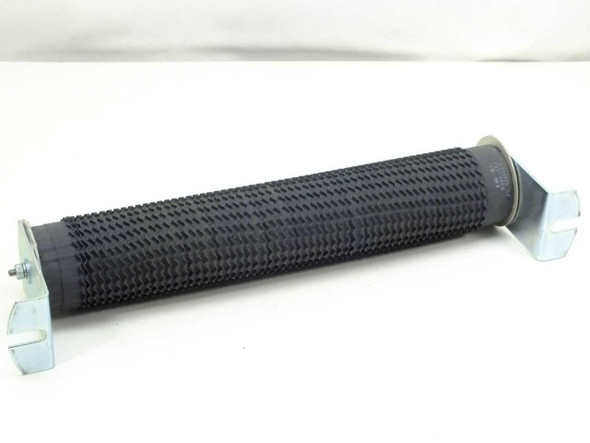

FST-1000 HE11035 10 Ohm Wire Wound Tubular Power Resistor Chassis Mount
Electrical
$50.00Was: $100.00FST-1000 HE11035 10 Ohm Wire Wound Tubular Power Resistor Chassis MountWire wound tubular power resistor rated at 10 ohms. Designed for use in industrial power control and drive systems where dissipation and current handling are required.Specifications...46180- SKU:
- 46180
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Unbranded
- Model:
- FST-1000
- MPN:
- HE11035
- Secondary Model:
- HE11035 5P
- Type:
- Tubular Wire Wound Power Resistor
- SKU:
- 46180
- Resistance:
- 10 Ohm
- Construction:
- Wire Wound
- Form Factor:
- Tubular / Chassis Mount
- Mounting Style:
- Chassis Mount with Bracket
- Condition:
- Used – Inspected and Pulled from Working Environment
- Seller Notes:
- Unit includes chassis mount brackets on both ends
- Compatible With:
- Industrial power control and drive systems
- Condition Notes:
- FST-1000 HE11035 10 Ohm tubular power resistor. Inspected, good used condition. Wire wound body intact, chassis mount brackets secure, label legible. Minor surface soiling and light bracket oxidation. No damage.
$50.00Was: $100.00 -

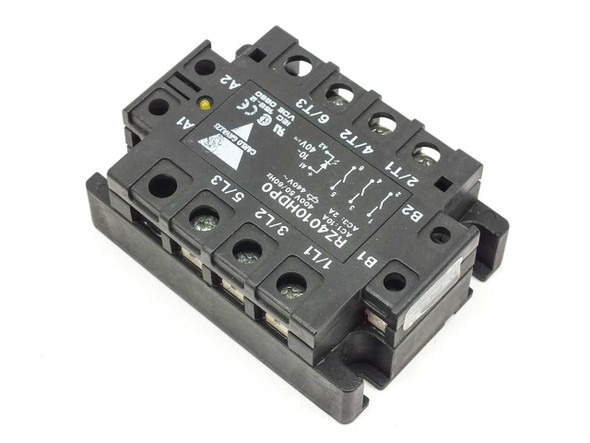

Carlo Gavazzi RZ4010HDP0 3-Phase Solid State Relay Block 10A 400V 50-60Hz
Carlo Gavazzi
$40.00Was: $80.00Carlo Gavazzi RZ4010HDP0 3-Phase Solid State Relay Block 10A 400V 50-60HzThree-phase solid state relay block for switching AC loads in industrial control applications. Accepts DC control voltage and switches three-phase AC power without mechanical...46143- SKU:
- 46143
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Carlo Gavazzi
- Model:
- RZ4010HDP0
- MPN:
- RZ4010HDP0
- Type:
- 3-Phase Solid State Relay Block
- SKU:
- 46143
- Phase:
- Three Phase
- Voltage Rating:
- 400V AC
- Current Rating (AC1):
- 10A
- Current Rating (AC3):
- 2A
- Frequency:
- 50/60Hz
- Control Voltage:
- 10-40V DC
- Load Voltage:
- 440V AC (max)
- Number of Poles:
- 3
- Terminal Designations:
- 1/L1, 3/L2, 5/L3 (input); 2/T1, 4/T2, 6/T3 (output)
- Certifications:
- UL, CE, VDE 0660, IEC 158-2
- Mounting:
- DIN Rail / Panel Mount
- Seller Notes:
- Includes mounting base/socket. Screws included.
- Country/Region of Manufacture:
- Italy
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- Carlo Gavazzi RZ4010HDP0 3-Phase SSR Block, 10A 400V. Used, inspected, pulled from a working environment. Good condition. Mounting base and screws included.
$40.00Was: $80.00 -
Varian M.E.D. 01-000531 3-Gang Tapped Inductor Klystron HV Power Supply CMC
Varian M.E.D.
$300.00Was: $600.00Varian M.E.D. 01-000531 3-Gang Tapped Inductor Klystron HV Power Supply CMC 1379AThree-gang tapped inductor assembly pulled from a high-voltage klystron power supply. Functions as a filter/choke in klystron HV power conditioning circuits, handling...46113- SKU:
- 46113
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 25.00 LBS
- Brand:
- Varian M.E.D.
- Model:
- 01-000531
- MPN:
- 01-000531
- Secondary Model:
- CMC 1379A
- Type:
- 3-Gang Tapped Inductor Assembly
- SKU:
- 46113
- Seller Notes:
- Pulled from a high-voltage klystron power supply. Sold as a single assembly.
- Application:
- High-voltage klystron power supply filter/choke
- Voltage Rating:
- 3.6–9.2 KV DC (source supply output range)
- Number of Cores / Gangs:
- 3
- Winding Configuration:
- Tapped (multiple tap points on terminal strip)
- Terminal Strip:
- Numbered terminal strip, approximately 20 positions per side
- Reference / Drawing Number:
- 738-8448
- Serial Number:
- 252
- Condition:
- Used – Pulled from Working Environment
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Varian M.E.D. 01-000531 3-gang tapped inductor removed from a high-voltage klystron power supply. Good used condition — cores intact, terminal strip complete. Shows paint loss, surface oxidation, and industrial grime. No core damage visible.
$300.00Was: $600.00 -
Varian 01-000531-00A High Voltage Power Supply Inductor Set of 3 Klystron HV
Varian
$150.00Was: $300.00Varian 01-000531-00A High Voltage Power Supply Inductor Set of 3 Klystron HVSet of three connected inductors for high voltage klystron power supply circuits. Designed to handle DC voltages in the 3.6–9.2 KV range.Specifications & What's...46109- SKU:
- 46109
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 25.00 LBS
- Brand:
- Varian
- Model:
- 01-000531-00A
- MPN:
- 01-000531-00A
- Secondary Model:
- CMC 1379A
- SKU:
- 46109
- Type:
- High Voltage Power Supply Inductor
- Quantity in Set:
- 3 (connected set)
- Application:
- High Voltage Klystron Power Supply
- Voltage Range:
- 3.6–9.2 KV DC
- Configuration:
- Connected Set of 3
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Set of 3 connected inductors; removed from Varian high voltage klystron power supply
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Varian 01-000531-00A HV power supply inductors, set of 3, removed from a klystron power supply (3.6–9.2 KV DC). Cores and terminals intact; wiring shows typical removal wear. No additional specs available.
$150.00Was: $300.00 -

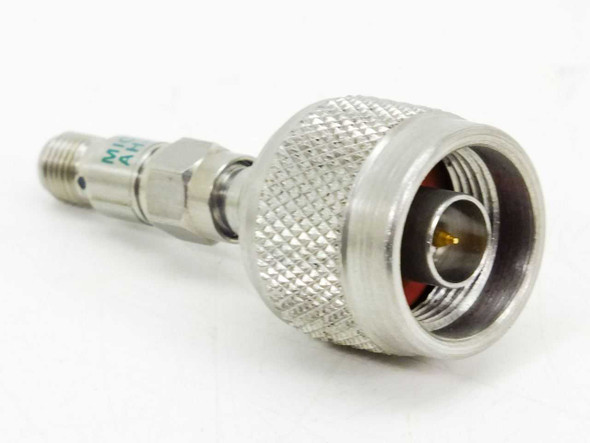

Microlab FXR AH-06F 6dB RF Coaxial Attenuator N Male to SMA Female Adapter
Microlab FXR
$15.00Was: $30.00Microlab FXR AH-06F 6dB RF Coaxial Attenuator N Male to SMA Female Adapter Fixed coaxial RF attenuator that reduces signal power by 6dB. Designed for inline installation between RF/microwave test equipment, transmission lines, and antennas to manage...46105- SKU:
- 46105
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Microlab FXR
- Model:
- AH-06F
- MPN:
- AH-06F
- Type:
- Fixed Coaxial RF Attenuator
- SKU:
- 46105
- Attenuation:
- 6 dB
- Connector 1 (Input):
- N-Type Male
- Connector 2 (Output):
- SMA Female
- Form Factor:
- In-Line / Inline Adapter
- Seller Notes:
- Attenuator only. No accessories included.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Microlab FXR AH-06F 6dB RF attenuator. Inspected and in good used condition. Light handling wear; connectors clean and intact. No damage observed.
$15.00Was: $30.00
