Description

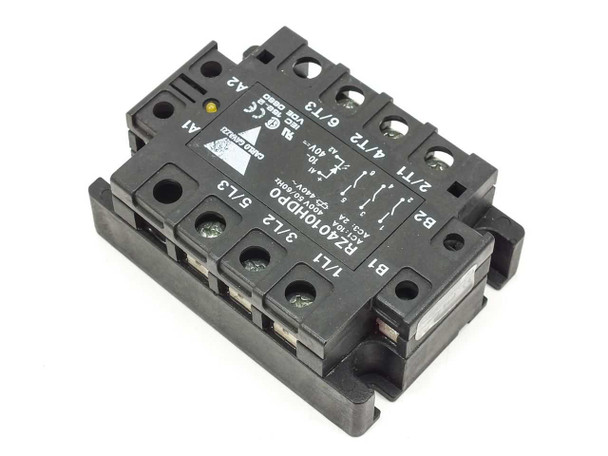

Carlo Gavazzi RZ4010HDP0 3-Phase Solid State Relay Block 10A 400V 50-60Hz
Three-phase solid state relay block for switching AC loads in industrial control applications. Accepts DC control voltage and switches three-phase AC power without mechanical contacts.
Specifications & What's Included
- Voltage Rating: 400V AC (max 440V)
- Current Rating: 10A AC1, 2A AC3
- Control Voltage: 10-40V DC
- Frequency: 50/60Hz
- Three poles with terminal designations 1/L1, 3/L2, 5/L3 (input); 2/T1, 4/T2, 6/T3 (output)
- DIN rail/panel mount
- Certifications: UL, CE, VDE 0660, IEC 158-2
- Includes mounting base/socket and screws
Applications
Solid state relay blocks are used in three-phase motor control, HVAC systems, industrial automation, and power distribution equipment. They eliminate arcing and contact wear by using semiconductor switching. Common in retrofits of older control panels and as replacements in PLC-based automation systems where DC signal control of AC loads is required.
Condition: Used
This Carlo Gavazzi RZ4010HDP0 3-Phase Solid State Relay Block has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The housing and terminals show normal wear consistent with industrial service. The mounting base and screws are included. Please view our photos and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Carlo Gavazzi RZ4010HDP0 3-Phase Solid State Relay Block has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The housing and terminals show normal wear consistent with industrial service. The mounting base and screws are included. Please view our photos and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Carlo Gavazzi |
Model: |
RZ4010HDP0 |
MPN: |
RZ4010HDP0 |
Type: |
3-Phase Solid State Relay Block |
SKU: |
46143 |
Phase: |
Three Phase |
Voltage Rating: |
400V AC |
Current Rating (AC1): |
10A |
Current Rating (AC3): |
2A |
Frequency: |
50/60Hz |
Control Voltage: |
10-40V DC |
Load Voltage: |
440V AC (max) |
Number of Poles: |
3 |
Terminal Designations: |
1/L1, 3/L2, 5/L3 (input); 2/T1, 4/T2, 6/T3 (output) |
Certifications: |
UL, CE, VDE 0660, IEC 158-2 |
Mounting: |
DIN Rail / Panel Mount |
Seller Notes: |
Includes mounting base/socket. Screws included. |
Country/Region of Manufacture: |
Italy |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
Carlo Gavazzi RZ4010HDP0 3-Phase SSR Block, 10A 400V. Used, inspected, pulled from a working environment. Good condition. Mounting base and screws included. |
