Magnecraft W6110DSX-1 Solid State Relay 120VAC 10A Output 3-32VDC Input
The Magnecraft W6110DSX-1 is a single-phase solid state relay (SSR) manufactured by Magnecraft Electric Co. of Chicago, Illinois. It accepts a low-voltage DC control signal (3–32 VDC) to switch a 120 VAC AC load at up to 10 amps, with no moving parts and no mechanical contact wear. The unit is UL Listed and CSA Certified under file number LR32053.
Specifications & What's Included
- Model: W6110DSX-1
- Manufacturer: Magnecraft Electric Co., Chicago, Illinois, USA
- Type: Solid State Relay (SSR)
- Output: 120 VAC, 10.0 A
- Input (Control): 3–32 VDC
- General use / incandescent lamp load rating: 8 A
- Motor load rating: 4.5 FLA

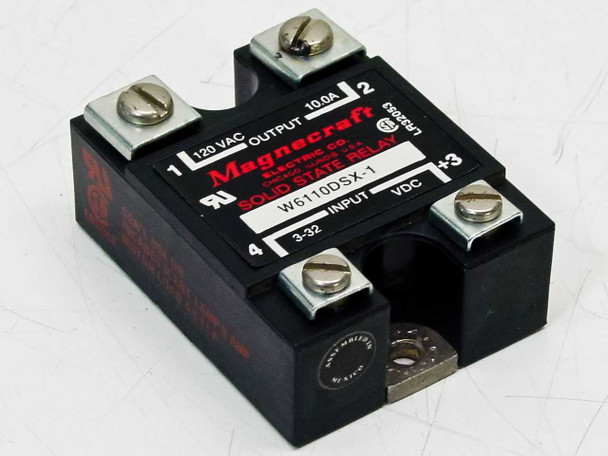

- Mounting: Panel mount with screw terminals; four numbered terminals (1, 2, 3, 4)
- Certifications: UL Listed, CSA Certified (File No. LR32053)

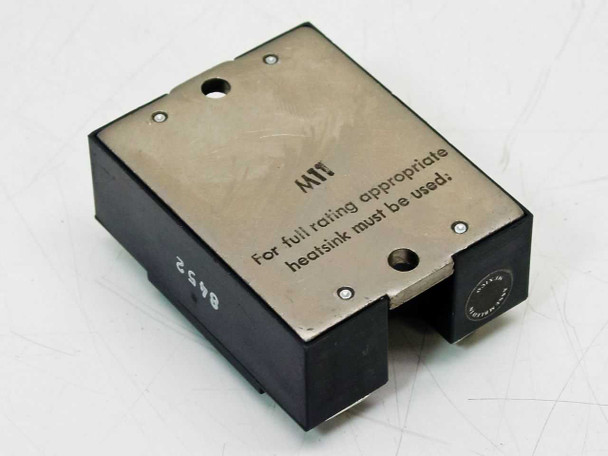

- Heatsink: Required for full current rating operation (heatsink not included)
- Phase: Single phase
- What's included: Relay only — no heatsink, no accessories
Applications
Solid state relays like the W6110DSX-1 are standard components in industrial automation and control systems, used wherever a low-power DC signal needs to switch or control an AC load without mechanical contacts. Common applications include temperature controllers, programmable logic controllers (PLCs), machine tool controls, lighting control panels, HVAC equipment, and general-purpose industrial panel wiring. The DC-input/AC-output configuration makes these relays well-suited for interfacing microcontroller or PLC outputs directly with line-voltage loads. Magnecraft Electric has been a recognized name in relay manufacturing since the mid-20th century; the W6110 series represents a straightforward, panel-mount SSR design widely used in North American industrial and OEM equipment. Because solid state relays have no moving parts, they offer silent switching, longer service life, and faster cycle times compared to electromechanical relays in similar roles.
This Magnecraft W6110DSX-1 Solid State Relay has been inspected and is in good used condition. It was pulled from a working environment where it was in active service. The housing and terminals show typical light wear consistent with prior installation. All four screw terminals are present and intact. Note that no heatsink is included — per the label on the unit, a heatsink is required for full current rating operation. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Magnecraft |
Model: |
W6110DSX-1 |
MPN: |
W6110DSX-1 |
Type: |
Solid State Relay (SSR) |
SKU: |
38613 |
Output Voltage: |
120 VAC |
Output Current: |
10.0 A |
Input Voltage: |
3-32 VDC |
Control Type: |
DC Control |
Load Type: |
AC Load |
General Use Rating: |
8 A |
Incandescent Lamp Rating: |
8 A |
Motor Load Rating: |
4.5 FLA |
Certifications: |
UL Listed, CSA Certified |
UL File Number: |
LR32053 |
Manufacturer: |
Magnecraft Electric Co., Chicago, Illinois, USA |
Country/Region of Manufacture: |
United States |
Form Factor: |
Panel Mount / DIN Rail Compatible |
Mounting: |
Screw terminal, panel mount |
Heatsink Required: |
Yes — required for full current rating |
Phase: |
Single Phase |
Seller Notes: |
Relay only. No heatsink included. |
Condition Notes: |
Magnecraft W6110DSX-1 Solid State Relay inspected and in good used condition. Pulled from a working environment. Terminals intact, typical light wear. No heatsink included — required for full rating. Please contact us with any questions. |
