Magnecraft

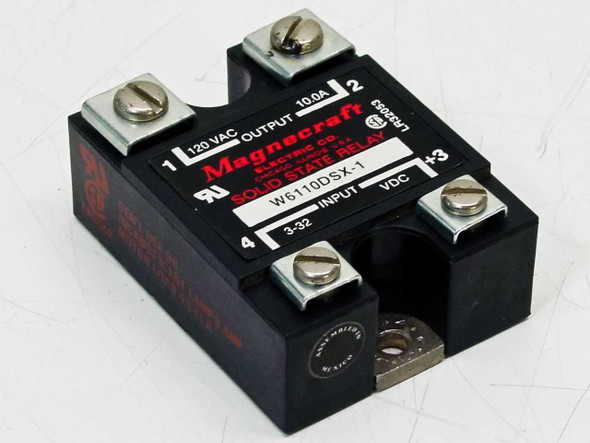

Magnecraft W6110DSX-1 Solid State Relay 120VAC 10A Output 3-32VDC Input

Magnecraft

SKU:

38613

Availability:

Usually ships within 1-2 business days.

Weight:

1.00 LBS

Brand:

Magnecraft

Model:

W6110DSX-1

MPN:

W6110DSX-1

Type:

Solid State Relay (SSR)

SKU:

38613

Output Voltage:

120 VAC

Output Current:

10.0 A

Input Voltage:

3-32 VDC

Control Type:

DC Control

Load Type:

AC Load

General Use Rating:

8 A

Incandescent Lamp Rating:

8 A

Motor Load Rating:

4.5 FLA

Certifications:

UL Listed, CSA Certified

UL File Number:

LR32053

Manufacturer:

Magnecraft Electric Co., Chicago, Illinois, USA

Country/Region of Manufacture:

United States

Form Factor:

Panel Mount / DIN Rail Compatible

Mounting:

Screw terminal, panel mount

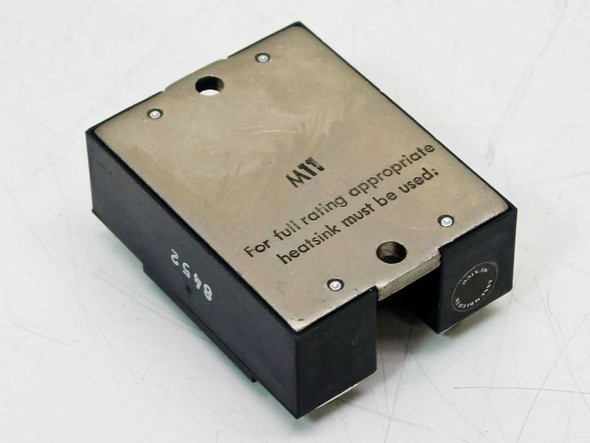

Heatsink Required:

Yes — required for full current rating

Phase:

Single Phase

Seller Notes:

Relay only. No heatsink included.

Condition Notes:

Magnecraft W6110DSX-1 Solid State Relay inspected and in good used condition. Pulled from a working environment. Terminals intact, typical light wear. No heatsink included — required for full rating. Please contact us with any questions.
