Omron G3PA-210B-VD Solid State Relay 10A 5-24VDC Input 24-240VAC 50/60Hz

(No reviews yet) Write a Review
SKU:
47795
MPN:
G3PA-210B-VD
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • Omron G3PA-210B-VD Solid State Relay mounted on heatsink base — front-left angle view showing label and wiring leads
  • Omron G3PA-210B-VD Solid State Relay — front face view showing model label, 10A rating, 24-240VAC and 5-24VDC specs, UL and CE marks
  • Omron G3PA-210B-VD Solid State Relay — rear view showing aluminum heatsink fins and HOT SURFACE warning label
  • Omron G3PA-210B-VD Solid State Relay — front view of heatsink base showing cooling fin detail

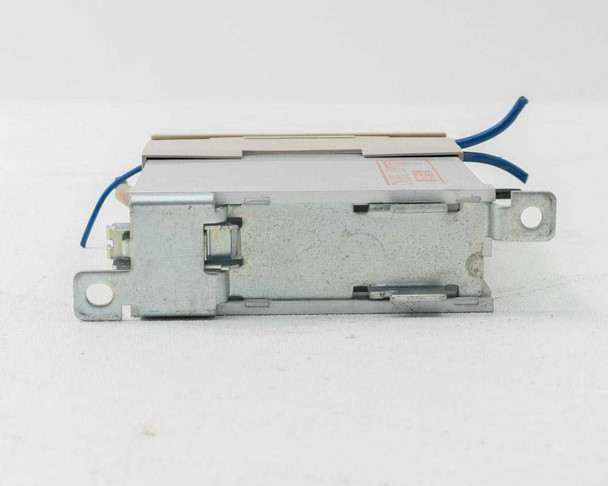

  • Omron G3PA-210B-VD Solid State Relay — side profile view showing mounting bracket and relay body thickness

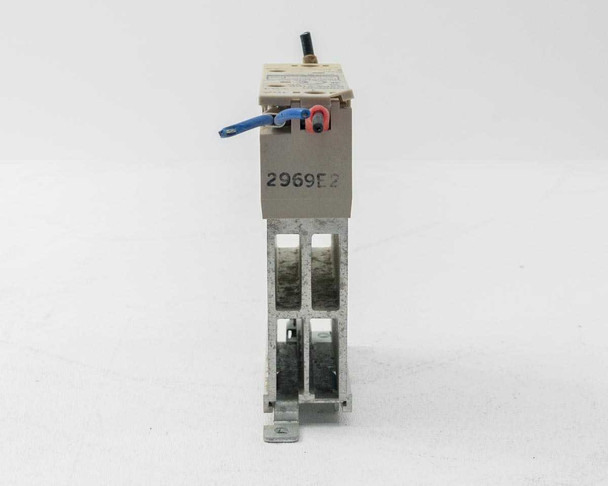

  • Omron G3PA-210B-VD Solid State Relay — opposite side view showing heatsink fins and internal asset tag
  • Omron G3PA-210B-VD Solid State Relay — end-on view showing heatsink fin spacing and mounting foot detail
$15.00
Was: $30.00
Current Stock: 2

Sold Out

Description

Omron G3PA-210B-VD Solid State Relay 10A 5-24VDC Input 24-240VAC 50/60Hz

This is a solid state relay (SSR) that switches AC loads using a low-voltage DC control signal. It operates without moving parts, using semiconductor switching instead of mechanical contacts.

Specifications & What's Included

  • Input: 5-24VDC
  • Output: 24-240VAC, 50/60Hz
  • Load Current: 10A maximum
  • Switching Type: Zero-cross switching
  • Certifications: UL, CE
  • Includes heatsink base and attached wiring leads

Applications

G3PA series relays are commonly used in industrial control systems, telecom equipment, HVAC systems, and process automation where AC load switching is required. The low DC control voltage allows direct integration with PLC outputs, industrial controllers, and low-voltage signal circuits. Zero-cross switching reduces EMI and extends load life by switching at AC zero-crossing points.

Condition: Used
This Omron G3PA-210B-VD Solid State Relay has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use. The unit includes its heatsink base and attached wiring leads as shown in the photos. The relay body and heatsink show light surface wear consistent with normal service use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Omron
Model:
G3PA-210B-VD
MPN:
G3PA-210B-VD
Type:
Solid State Relay (SSR)
SKU:
47795
Input Voltage:
5-24VDC
Output Voltage:
24-240VAC
Load Current:
10A
Frequency:
50/60Hz
Output Type:
AC
Switching Type:
Zero-cross switching
Series:
G3PA
Country/Region of Manufacture:
Japan
Certifications:
UL, CE
Form Factor:
Panel/DIN mount with heatsink
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only, includes attached wiring leads and heatsink base as shown.
Condition Notes:
Omron G3PA-210B-VD Solid State Relay in good used condition. Pulled from a working environment. Includes heatsink base and wiring leads. Shows light surface wear. Please contact us with any questions.
