Description
Schaffner FN2060-16-06 EMI Line Filter 110/250VAC 16A 50-60Hz IEC EN133200
The Schaffner FN2060-16-06 is a single-phase EMI/RFI mains line filter rated for 110/250VAC at up to 16 amps continuous (at 40°C). Manufactured in Switzerland to IEC and EN standards, this passive filter is designed to suppress conducted electromagnetic interference on the AC power line, protecting sensitive equipment from noise originating on the mains and preventing equipment-generated noise from being conducted back onto the line.
Specifications & What's Included
- Model: Schaffner FN2060-16-06
- Voltage: 110/250VAC
- Current: 16A @ 40°C
- Frequency: 50–60Hz
- Operating Temperature: -25°C to +100°C
- Filter topology: Two-stage LC network — 0.33µF (X2) line capacitors, 2x0.65mH inductors, 2x4.7nF (Y2) ground capacitors, 0.33µF (X2) load-side capacitors
- Leakage resistance: 1MΩ
- Terminals: Quick-connect (faston) blade terminals, LINE and LOAD sides
- Standards: IEC 60950 compliant, EN133200, UL Listed (SR mark visible on label)
- Country of manufacture: Switzerland
- Date code: 9918 (week 18, 1999)
- Unit only — no additional accessories included
Applications
Single-phase EMI mains filters like the Schaffner FN2060 series are standard components in industrial machinery, lab and test equipment, power supplies, variable-frequency drives (VFDs), motor drives, and medical and semiconductor processing equipment — anywhere that equipment must meet conducted-emissions limits or needs protection from mains-borne noise. Schaffner is a well-regarded Swiss manufacturer specializing in EMC components, and the FN2060 series has been widely used in OEM equipment builds and industrial installations requiring IEC 60950 compliance. This filter installs inline on the AC input of the equipment being protected, suppressing both differential-mode and common-mode interference across the 50–60Hz mains frequency range. It remains a current and actively useful component type, compatible with any single-phase 110V or 250V AC system requiring 16A or less.

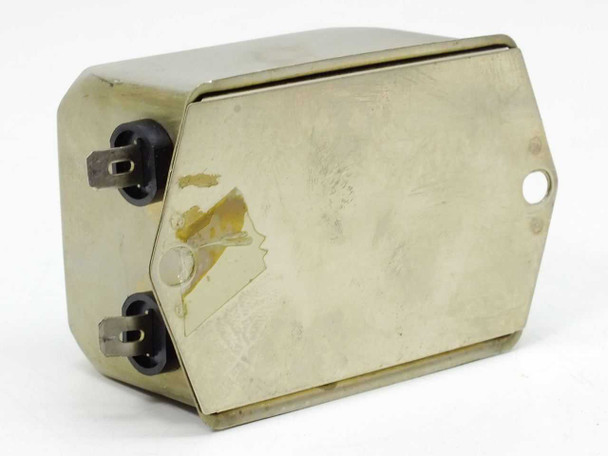

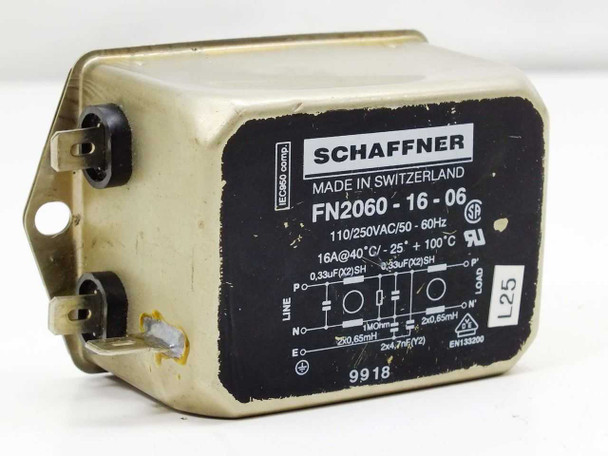

This Schaffner FN2060-16-06 EMI line filter has been inspected and is in good used condition. It was pulled from a working environment where it was previously in service. The label on the unit is clean and fully legible. The rear of the housing shows some adhesive residue from a removed label, and the chassis has light scuffing and surface marks consistent with normal use — no cracks, corrosion, or damage to the housing or terminals. The blade terminals are intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Schaffner |
Model: |
FN2060-16-06 |
MPN: |
FN2060-16-06 |
Type: |
EMI / RFI Mains Line Filter |
SKU: |
46231 |
Voltage Rating: |
110/250VAC |
Current Rating: |
16A |
Frequency: |
50-60Hz |
Phase: |
Single Phase |
Filter Topology: |
Two-stage LC, 0.33µF + 0.33µF, 2x0.65mH, 2x4.7nF (Y2) |
Leakage Resistance: |
1MOhm |
Standards Compliance: |
IEC 60950, EN133200, UL Listed |
Country/Region of Manufacture: |
Switzerland |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; no additional accessories included. |
Form Factor: |
Chassis Mount / Panel Mount |
Connector / Terminals: |
Quick-connect (faston) blade terminals |
Condition Notes: |
Schaffner FN2060-16-06 EMI line filter in good used condition. Inspected and pulled from a working environment. Label clean and legible; chassis shows light scuffing and adhesive residue on rear. Terminals intact. |
