Description
Schaffner FN2070-10-06 10A EMI Line Filter 110/250VAC 50-60Hz IEC960 Single Phase
Single-phase EMI line filter designed to suppress electromagnetic interference on AC power lines. Features a 2-stage LC filter topology with common-mode chokes for attenuation of conducted emissions across 50–60Hz industrial and telecom applications.
Specifications & What's Included
- Voltage Rating: 110/250VAC
- Current Rating: 10A @ 40°C
- Operating Temperature: –25°C to +85°C

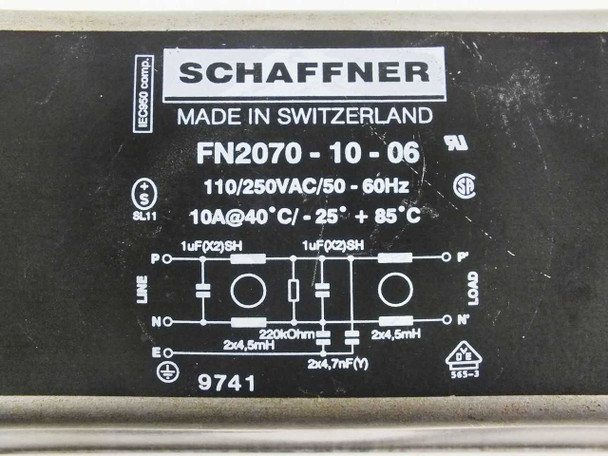

- Inductance: 2×4.5mH (line/neutral)
- Capacitance: 1µF×2 (line-side), 1µF×2 (load-side), 2×4.7nF (Y-cap)
- Leakage Resistance: 220kΩ
- Standards: IEC960, UL, CE certified

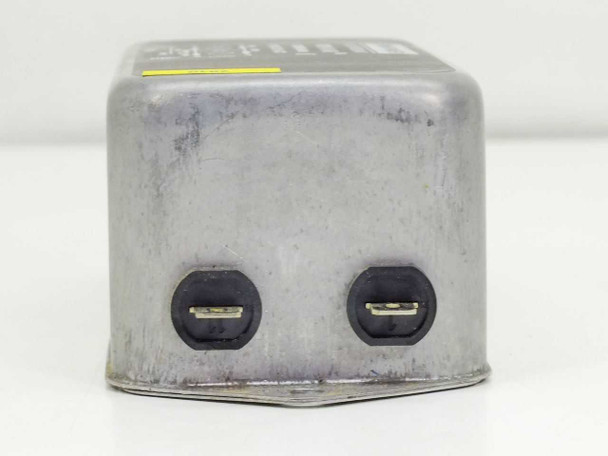

- Connector: Faston/Quick-Connect blade terminals
- Form Factor: Chassis/panel mount
- Filter only; no mounting hardware included
Applications
Used in industrial control systems, telecom equipment, and switching power supplies where EMI suppression on incoming AC mains is required. Common in telecom cabinets, industrial test equipment, and data center PDUs. Suits environments requiring IEC960 compliance and conducted emissions filtering for single-phase equipment operating at 10A or lower.
Condition: Used

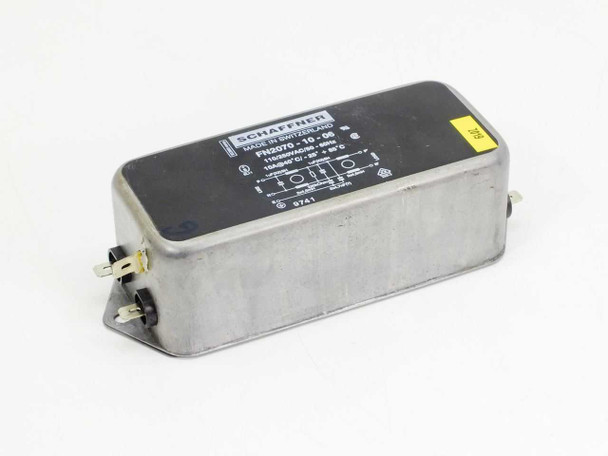

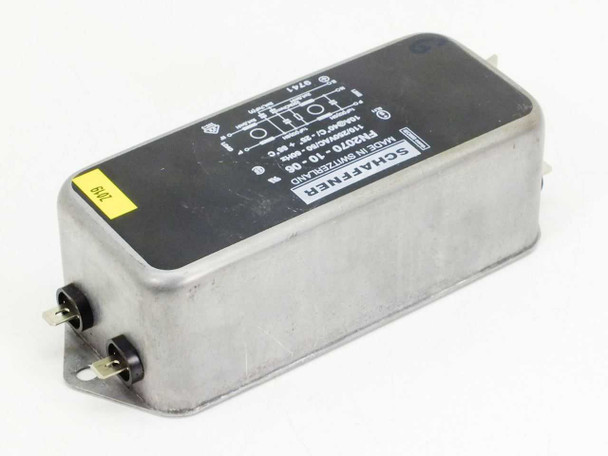

This Schaffner FN2070-10-06 10A EMI line filter has been inspected and is in good used condition. It was pulled from a working environment where it was previously in service. The metal housing shows light surface scuffing and minor wear consistent with normal use, but there is no cracking, corrosion on the terminals, or damage to the body. The quick-connect blade terminals appear clean and intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Schaffner FN2070-10-06 10A EMI line filter has been inspected and is in good used condition. It was pulled from a working environment where it was previously in service. The metal housing shows light surface scuffing and minor wear consistent with normal use, but there is no cracking, corrosion on the terminals, or damage to the body. The quick-connect blade terminals appear clean and intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Schaffner |
Model: |
FN2070-10-06 |
MPN: |
FN2070-10-06 |
Type: |
Single-Phase EMI Line Filter |
SKU: |
46000 |
Voltage Rating: |
110/250VAC |
Current Rating: |
10A |
Frequency: |
50-60Hz |
Phase: |
Single Phase |
Standards Compliance: |
IEC960 Compatible |
Certifications: |
UL, CE |
Topology: |
2-stage LC filter with common-mode chokes |
Inductance: |
2x4.5mH (line/neutral) |
Capacitance: |
1uF x2 (line-side), 1uF x2 (load-side), 2x4.7nF (Y-cap) |
Leakage Resistance: |
220kOhm |
Connector Type: |
Faston / Quick-Connect Blade Terminals |
Country/Region of Manufacture: |
Switzerland |
Form Factor: |
Chassis Mount / Panel Mount |
Seller Notes: |
Filter only; no mounting hardware included. |
Condition Notes: |
Schaffner FN2070-10-06 10A EMI line filter in good used condition. Pulled from a working environment. Housing shows light surface wear. Terminals are clean and intact. No damage noted. |
