Timonta FSW 2-65-6/0.5 EMI Suppression Filter 250V 6A 50/60Hz Single Phase
The Timonta FSW 2-65-6/0.5 is a single-phase EMI/RFI suppression filter rated for 250V AC at 6 amperes, 50/60Hz. Manufactured by Timonta AG of Mendrisio, Switzerland, this compact metal-chassis filter is designed to attenuate conducted electromagnetic interference on AC power lines, protecting sensitive equipment from line-borne noise and reducing emissions generated by the connected load back onto the mains.
Specifications & What's Included
- Model: FSW 2-65-6/0.5
- Manufacturer: Timonta AG, CH-6850 Mendrisio, Switzerland
- Voltage rating: 250V AC
- Current rating: 6A
- Frequency: 50/60Hz
- Phase: Single phase
- Maximum operating temperature: 45°C
- Inductance: 2 × 0.8 mH (common-mode choke)
- X capacitors (line-to-line): 2 × 0.1 µF
- Y capacitors (line-to-ground): 2 × 1500 pF
- Y capacitors (neutral-to-ground): 2 × 1000 pF
- Connection type: Faston / quick-connect tab terminals
- Enclosure: Metal aluminum chassis
- Circuit schematic printed on housing
- Includes: Filter unit only
Applications
Single-phase EMI/RFI suppression filters like the Timonta FSW 2-65-6/0.5 are standard components in industrial electronics, laboratory instruments, medical equipment power inputs, variable-speed motor drives, switching power supplies, and any application where conducted interference on the AC mains must be suppressed. The combination of common-mode chokes and X/Y capacitors attenuates both differential-mode and common-mode noise across a broad frequency range, helping equipment meet CE, FCC, and VDE emissions standards. Timonta AG is a Swiss manufacturer with a long history of producing high-quality passive EMI filters for industrial and OEM applications. These filters are typically mounted inside equipment enclosures or panels, inline on the AC input before the main power supply, and are found across a wide range of European and internationally manufactured industrial and scientific equipment dating from the 1980s onward.

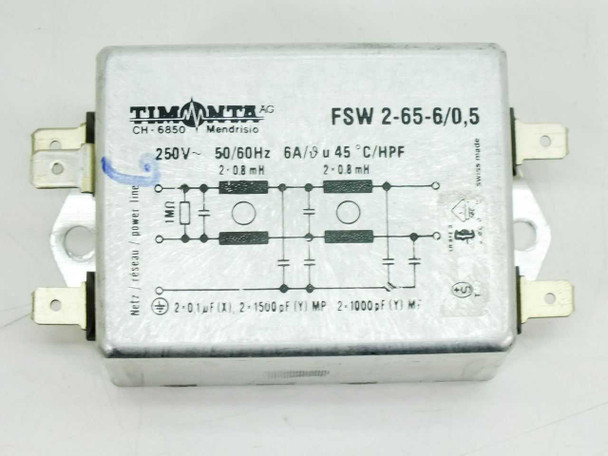

This Timonta FSW 2-65-6/0.5 EMI suppression filter has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The metal chassis shows typical light handling wear consistent with service use, but there is no damage, corrosion, or broken terminals visible. The quick-connect tab terminals are intact and the label and schematic on the housing are fully legible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Timonta |
Model: |
FSW 2-65-6/0.5 |
MPN: |
FSW 2-65-6/0.5 |
Type: |
EMI/RFI Suppression Filter |
SKU: |
46021 |
Voltage Rating: |
250V AC |
Current Rating: |
6A |
Frequency: |
50/60Hz |
Phase: |
Single Phase |
Temperature Rating: |
45°C |
Inductance: |
2 x 0.8 mH |
X Capacitance: |
2 x 0.1 µF (X) |
Y Capacitance (line): |
2 x 1500 pF (Y) |
Y Capacitance (neutral): |
2 x 1000 pF (Y) |
Connection Type: |
Faston / Quick-Connect Tab Terminals |
Enclosure: |
Metal (aluminum chassis) |
Country/Region of Manufacture: |
Switzerland |
Manufacturer Location: |
Timonta AG, CH-6850 Mendrisio |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; pulled from working environment, inspected, good condition. |
Condition Notes: |
Timonta FSW 2-65-6/0.5 EMI suppression filter. Pulled from a working environment. Inspected and in good used condition. Metal chassis shows light wear; terminals intact, label fully legible. No damage or corrosion. |
