Description

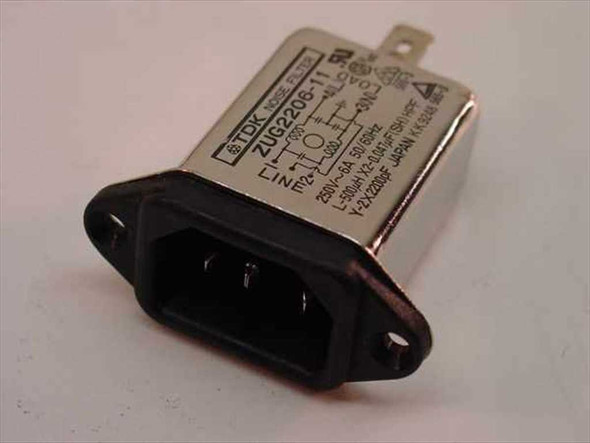

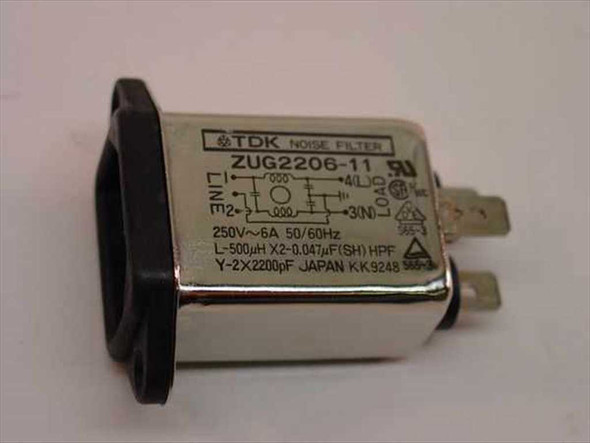

TDK ZAC2206-11 Inline Noise Filter 250V 6A 50/60Hz EMI RFI Line Filter Japan
This is an inline EMI/RFI noise filter designed to suppress electromagnetic interference and radio frequency interference on power lines. The unit operates at 250V AC, 6A and supports both 50Hz and 60Hz frequencies.
Specifications & What's Included
- Model: ZAC2206-11 | Voltage: 250V AC | Current: 6A
- Frequency: 50/60Hz | Test Voltage: 2.5kV AC
- Inductance: 4 x 1.8mH | Resistance: 2 x 2MΩ
- Capacitance (X2): 3 x 0.1µF | Capacitance (Y): 2 x 4700pF
- Configuration: High-Pass Filter | Connection: Screw terminal (stud)
- Certifications: UL Listed, CSA Listed
- Form Factor: Inline / Panel Mount
- Unit only; no additional accessories included
Applications
Inline noise filters like this are used in industrial equipment, telecommunications systems, medical devices, and power distribution applications where EMI/RFI suppression is required. The high-pass filter configuration allows signal frequencies to pass while attenuating unwanted noise. This filter is suitable for equipment operating on standard AC mains in 50Hz and 60Hz regions.
Condition: Used
This TDK ZAC2206-11 Inline Noise Filter has been inspected and is in good used condition. It was pulled from a working environment where it was previously in service. The metal housing shows light surface wear and minor scuffing consistent with normal use, but there is no cracking, corrosion on the terminals, or significant damage. All screw stud terminals are intact and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This TDK ZAC2206-11 Inline Noise Filter has been inspected and is in good used condition. It was pulled from a working environment where it was previously in service. The metal housing shows light surface wear and minor scuffing consistent with normal use, but there is no cracking, corrosion on the terminals, or significant damage. All screw stud terminals are intact and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
TDK |
Model: |
ZAC2206-11 |
MPN: |
ZAC2206-11 |
Type: |
Inline EMI/RFI Noise Filter |
SKU: |
47902 |
Voltage Rating: |
250V AC |
Current Rating: |
6A |
Frequency: |
50/60Hz |
Test Voltage: |
2.5kV AC |
Inductance: |
L: 4 x 1.8mH |
Resistance: |
R: 2 x 2MΩ |
Capacitance (X2): |
X2: 3 x 0.1µF (SH) |
Capacitance (Y): |
Y: 2 x 4700pF |
Filter Configuration: |
HPF (High-Pass Filter) |
Connection Type: |
Screw terminal (stud) |
Certifications: |
UL Listed, CSA Listed |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Inline / Panel Mount |
Power Requirements: |
250V AC, 50/60Hz |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; no additional accessories included. |
Condition Notes: |
TDK ZAC2206-11 Inline Noise Filter inspected and in good used condition. Pulled from a working environment. Light surface wear on housing; all stud terminals intact. Please contact us with any questions. |
