Electronic Test
Electronic test is a category focused on evaluating the functionality and performance of electronic devices. This includes testing methods such as automated testing, manual testing, and simulation to ensure that electronic components meet quality standards and specifications. Electronic test equipment like oscilloscopes, multimeters, and signal generators are commonly used to measure and analyze electronic signals. This category covers a wide range of industries including telecommunications, automotive, aerospace, and consumer electronics. Whether testing PCBs, integrated circuits, or electronic systems, Electronic Test plays a crucial role in verifying the proper operation and reliability of electronic devices.
-

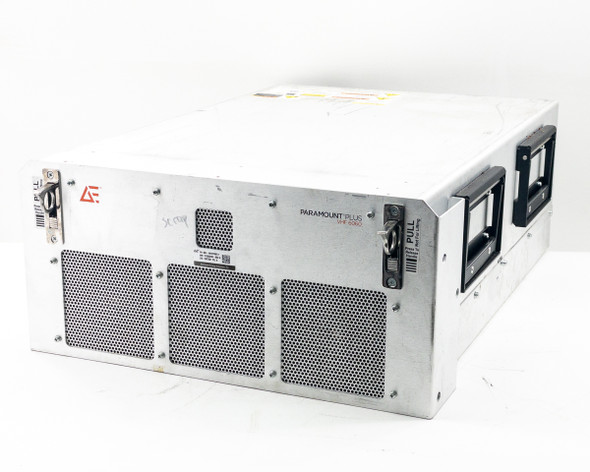

Advanced Energy Paramount Plus 6060 VHF RF Generator 31550260-663
Advanced Energy
$15,000.00Was: $30,000.00Advanced Energy Paramount Plus 6060 VHF RF Generator 31550260-663 The Advanced Energy Paramount Plus 6060 is an industrial VHF RF power generator designed for plasma-based semiconductor manufacturing, wafer processing, and materials processing...53327- SKU:
- 53327
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 100.00 LBS
- Brand:
- Advanced Energy Industries
- Model:
- Paramount Plus 6060
- Secondary Model:
- 660-189197R100
- MPN:
- 31550260-663
- SKU:
- 53327
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes part numbers 31550260-663 and 660-189197R100. No power supply, cables, or accessories included unless noted separately.
- Form Factor:
- Benchtop / Integrated RF Generator
- Country of Manufacture:
- United States
- Power Requirements:
- 200–208V AC, Three Phase, 50–60 Hz, 40A maximum
- Cooling:
- Water-cooled (facility water connection required; disconnect before servicing)
- Max Water Pressure:
- 6.9 Bar / 690 kPa
- RF Type:
- VHF (Very High Frequency) RF Power Generator
- Application:
- Plasma deposition, wafer processing, ion implantation, semiconductor manufacturing
- Certifications:
- CE, RoHS Compliant, CSA (C/US)
- Date Code:
- 08/2015
- Radiation Warning:
- Non-ionizing radiation present. No user-serviceable parts. Do not remove cover.
- Phase:
- Three Phase
- Voltage Rating:
- 200-208V AC
- Current Rating:
- 40A Maximum
- Frequency:
- 50-60 Hz
- Condition Notes:
- This Advanced Energy Paramount Plus 6060 VHF RF Generator was professionally pulled from a working production environment where it was in operational service.
- Frequency Band:
- VHF (Very High Frequency)
- Water Cooling Pressure Rating:
- 6.9 bar / 690 kPa
- Compatible With:
- Plasma process chambers, CVD/PECVD systems, RIE tools, RF delivery systems
- Secondary Reference:
- 660-189197R100
- Product Type:
- VHF RF Power Generator
- Power Input:
- Three-phase AC
- Maximum Input Current:
- 40A
- Thermal Management:
- Integrated water cooling
- Compatible Systems:
- RF delivery systems, impedance-matching networks, plasma process chambers
- Type:
- VHF RF Power Generator
- Country/Region of Manufacture:
- United States
- Compatible With (2):
- Impedance matching networks, RF delivery networks
$15,000.00Was: $30,000.00 -
Advanced Energy Navigator II 3155999-175 RF Match Network 13.56 MHz Plasma
Advanced Energy
$5,000.00Was: $10,000.00Advanced Energy Navigator II 3155999-175 RF Match Network 13.56 MHz Plasma RF impedance matching network for 13.56 MHz plasma systems. Standalone benchtop module that interfaces with Advanced Energy RF generators to optimize power delivery during plasma...53326- SKU:
- 53326
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 26.00 LBS
- Brand:
- Advanced Energy
- Model:
- Navigator II
- MPN:
- 3155999-175
- Secondary Model / Part Number:
- 1335752
- SKU:
- 53326
- Condition:
- Used – Inspected
- Seller Notes:
- Unit only; inspected. Pulled from a working semiconductor process environment.
- Country of Manufacture:
- China
- Form Factor:
- Benchtop / Standalone Module
- Frequency:
- 13.56 MHz
- Application:
- RF Impedance Matching – Plasma Etch / CVD / PVD
- Hardware Revision:
- Rev A
- Interface – Configuration:
- DIP Switch (Configuration Header)
- Interface – Host:
- DB-9 (J1) + RJ-45 EtherCAT (Act/In/Link)
- Interface – Service:
- RJ-45 Ethernet (Out/Link/Error)
- Interface – RF Input:
- Coaxial RF IN (J2)
- Interface – Pulse Sync In:
- SMA / BNC (J5)
- Interface – Interlock:
- DB-9 (J4)
- Interface – DC Power:
- Circular Power Input Connector
- Status Indicators:
- Power, Tuned, Fault LEDs
- Network Protocol:
- EtherCAT
- Compatible With:
- Advanced Energy RF Generators, Plasma Etch / CVD Systems
- Condition Notes:
- Advanced Energy Navigator II 3155999-175 RF Match Network, 13.56 MHz — used, inspected. Pulled from an active semiconductor process environment. Chassis shows light surface wear. All I/O connectors present and intact.
$5,000.00Was: $10,000.00 -
RFPP RF5S 7510313010 RF Generator 500W 13.56MHz 208VAC Semiconductor Plasma Etch
RFPP RF Power Products
$2,000.00Was: $4,000.00RFPP RF5S 7510313010 RF Generator 500W 13.56MHz 208VAC Semiconductor Plasma Etch RF power generator designed for semiconductor plasma processing applications. Benchtop unit manufactured in 1996 by RF Power Products Inc. Specifications & What's...53324- SKU:
- 53324
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 55.00 LBS
- Brand:
- RFPP (RF Power Products Inc)
- Model:
- RF5S
- MPN:
- 7510313010
- Secondary Model:
- 490-0580
- SKU:
- 53324
- Seller Notes:
- Sold AS-IS for parts or repair. Does not power on.
- Country of Manufacture:
- USA
- Form Factor:
- Benchtop
- Power Requirements:
- 198-240VAC, 50/60Hz
- Output Frequency:
- 13.56 MHz
- Power Rating:
- 500 Watts
- Interface Type:
- RS232C / RS485, Analog Interface
- RF Output Connector:
- N-Type (RF OUT)
- Additional Connectors:
- CEX IN, CEX OUT, J1
- Application:
- Plasma Etch, CVD, Semiconductor Processing
- Date of Manufacture:
- 03/96
- Condition Notes:
- RFPP RF5S 7510313010 RF Generator 500W 13.56MHz 208VAC. Powers on, operates as designed. Gold chassis shows lab wear, scuffing, handling marks. Front panel intact. All connectors present and functional. Internal components intact.
$2,000.00Was: $4,000.00 -

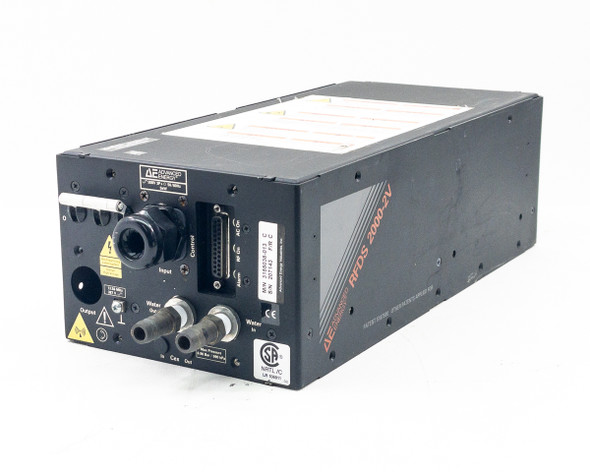

Advanced Energy RFDS 2000-2V RF Generator 3155038-013 13.56MHz 5kW 208V 3P
Advanced Energy
$2,500.00Was: $5,000.00Advanced Energy RFDS 2000-2V RF Generator 3155038-013 13.56MHz 5kW 208V 3P RF power generator for semiconductor processing applications. Operates at 13.56 MHz with 5 kW output power, water-cooled design. Specifications & What's Included Input: 208V,...53323- SKU:
- 53323
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 32.00 LBS
- Brand:
- Advanced Energy
- Model:
- RFDS 2000-2V
- MPN:
- 3155038-013
- SKU:
- 53323
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold AS-IS for parts or repair. Not tested. Unit only — no cables included.
- Form Factor:
- Benchtop / Enclosed Module
- Power Requirements:
- 208V, 3-Phase, 50/60Hz, 5kW
- Output Frequency:
- 13.56 MHz
- Power Rating:
- 5 kW
- Voltage Rating:
- 208V
- Phase:
- Three Phase
- Frequency:
- 50/60 Hz
- Output Voltage:
- 387V (labeled on output panel)
- Cooling Method:
- Water Cooled
- Max Water Pressure:
- 6.90 Bar / 690 kPa
- Control Interface:
- D-Sub (DB-25 style) Control Connector
- Input Connector:
- High-current multi-pin circular connector
- Output Connector:
- Coaxial RF output port
- Status Indicators:
- AC On, RF On, Alarm LED indicators
- Certifications:
- CSA NRTL/C, CE, LR 106911
- Application:
- Plasma etch, CVD, PVD, semiconductor processing
- Country of Manufacture:
- USA
- Hardware Revision:
- C
- Compatible With:
- Plasma etch and deposition systems using 13.56 MHz RF
- Condition Notes:
- Advanced Energy RFDS 2000-2V RF Generator 3155038-013 sold AS-IS for parts or repair. Pulled from working environment; not tested at our facility. No functionality guarantee. Cosmetically good. Contact us with questions.
$2,500.00Was: $5,000.00 -

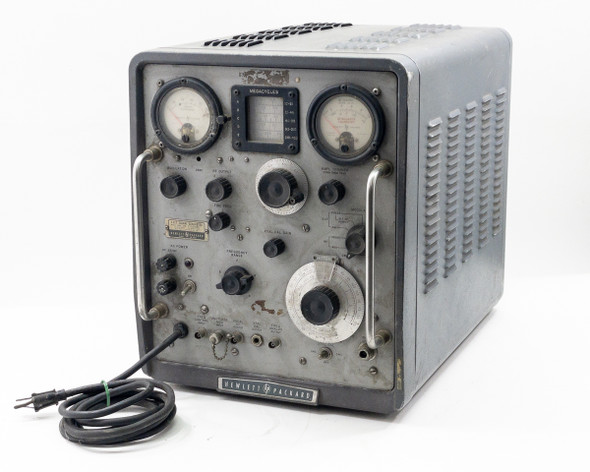

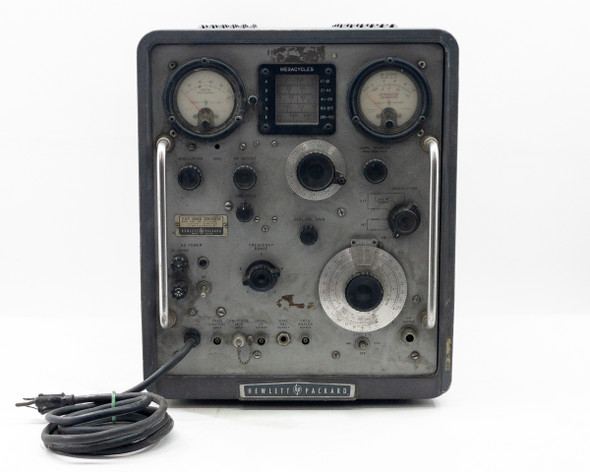

HP 608F VHF Signal Generator 10-455 MHz 115/230V 50-400Hz Hewlett Packard
Hewlett Packard
$450.00Was: $900.00HP 608F VHF Signal Generator 10-455 MHz 115/230V 50-400Hz Hewlett Packard Benchtop VHF RF signal generator covering 10 MHz to 455 MHz across five frequency bands. Generates continuously adjustable output from 0.1 µV to 0.5 V into 50 Ω with AM modulation...53310- SKU:
- 53310
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 45.00 LBS
- Brand:
- Hewlett Packard
- Model:
- 608F
- MPN:
- 608F
- SKU:
- 53310
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts or repair. Powers up; connectors and controls need cleaning.
- Country of Manufacture:
- United States
- Form Factor:
- Benchtop
- Power Requirements:
- 115/230 VAC ±10%, 50–400 Hz, DC 0.25A
- Measurement Type:
- VHF RF Signal Generation
- Frequency Range:
- 10 MHz to 455 MHz (5 bands)
- Frequency Bands:
- 10-21, 21-44, 44-95, 95-210, 210-455 MHz
- Output Level:
- 0.1 µV to 0.5 V into 50 Ω (continuously adjustable)
- Output Impedance:
- 50 Ω, SWR 1.2 (return loss 20.8 dB)
- Modulation:
- AM internal 400 Hz or 1000 Hz; external AM or pulse
- Modulation Depth:
- 0–95%
- Frequency Accuracy:
- 1% with fine adjustment
- Crystal Calibrator:
- 1 MHz and 5 MHz
- Compatible With:
- HP 8708A Synchronizer
- Application:
- Receiver alignment, antenna testing, RF calibration, lab use
- Condition Notes:
- Hewlett Packard 608F VHF Signal Generator (10-455 MHz, 115/230V, 50-400Hz) — tested and confirmed to power on at our facility. The unit is fully functional and operational.
$450.00Was: $900.00 -

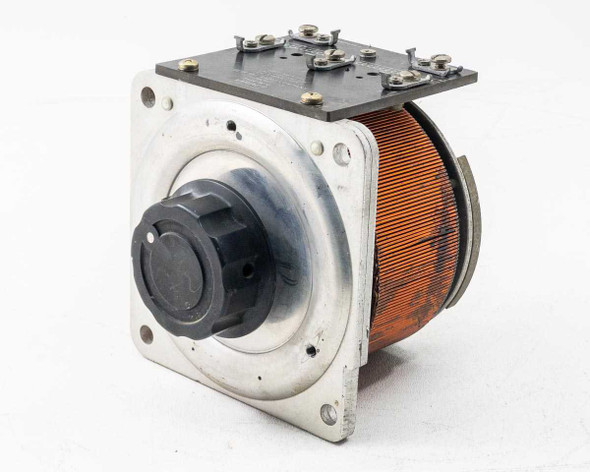

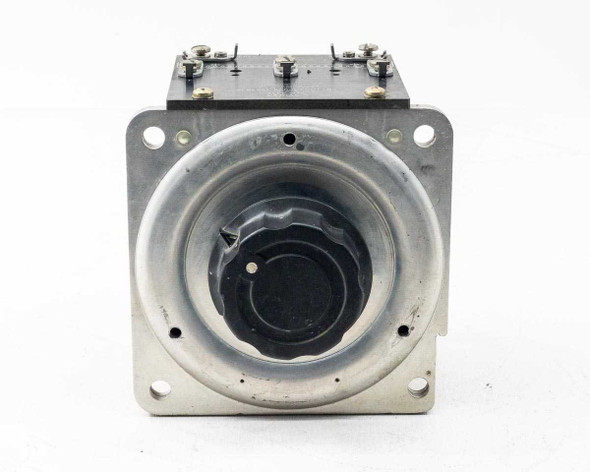

General Radio W10 Variac Variable Autotransformer 120V 10A 50-60Hz Panel
General Radio Company
$175.00Was: $500.00General Radio W10 Variac Variable Autotransformer 120V 10A 50-60Hz Panel The General Radio Company W10 is a panel-mount variable autotransformer — commonly known by the Variac trade name — designed to provide continuously adjustable AC output voltage...53217- SKU:
- 53217
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 16.00 LBS
- Brand:
- General Radio Company
- Model:
- W10
- MPN:
- W10
- Type:
- Variable Autotransformer (Variac)
- SKU:
- 53217
- Condition:
- Used – Pulled from Working Environment
- Input Voltage:
- 120V AC
- Current Rating:
- 10 Amperes
- Frequency:
- 50-60 Hz
- Phase:
- Single Phase
- Output Voltage:
- 0-120V AC (variable)
- Form Factor:
- Panel Mount
- Terminal Configuration:
- 5 screw terminals on top plate
- Winding Style:
- Toroidal
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Unit only — no enclosure or mounting hardware included.
- Condition Notes:
- This General Radio Company W10 Variac Variable Autotransformer has been inspected and is in good used condition. The unit was pulled from a working environment where it was previously in service.
$175.00Was: $500.00 -

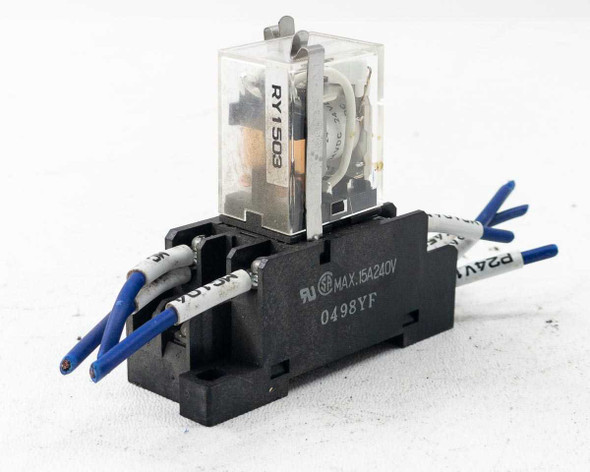

Omron LY2N-D2 General Purpose Relay 2PDT 10A 24VDC w/ PTF08A Socket Base
Omron
$20.00Was: $40.00Omron LY2N-D2 General Purpose Relay 2PDT 10A 24VDC w/ PTF08A Socket Base A 2PDT general purpose relay rated for 10A at 24VDC coil voltage. The relay switches up to 110VAC/240VAC loads and mounts via the included Omron PTF08A socket base with wired leads...53214- SKU:
- 53214
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Omron
- Model:
- LY2N-D2
- MPN:
- LY2N-D2
- Type:
- General Purpose Relay
- SKU:
- 53214
- Coil Voltage:
- 24V DC
- Contact Configuration:
- 2PDT (Double Pole Double Throw)
- Contact Rating (Amps):
- 10A
- Contact Voltage Rating:
- 110VAC / 240VAC
- Socket / Base Model:
- Omron PTF08A
- Number of Poles:
- 2
- Case Style:
- Transparent
- Indicator:
- LED operation indicator
- Mounting:
- Socket / DIN Rail via PTF08A base
- Socket Rating:
- Max 15A 240V
- Certifications:
- UL, CE
- Country/Region of Manufacture:
- Japan
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes relay and matching Omron PTF08A socket base with wired leads
- Condition Notes:
- This Omron LY2N-D2 General Purpose Relay with PTF08A socket base was removed from a large industrial controller system and is in good used condition. The transparent relay case is intact and the internal coil assembly is visible and undamaged.
$20.00Was: $40.00 -

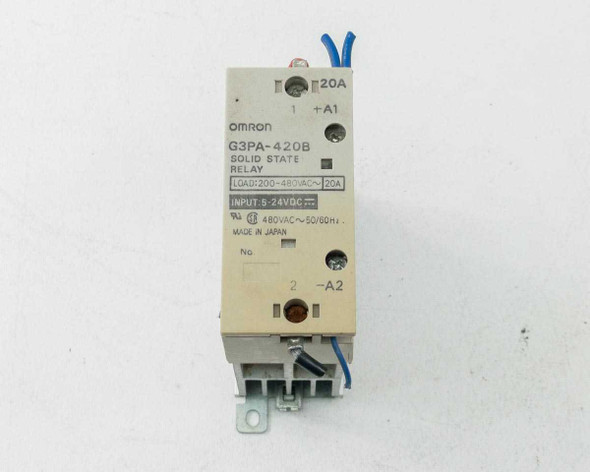

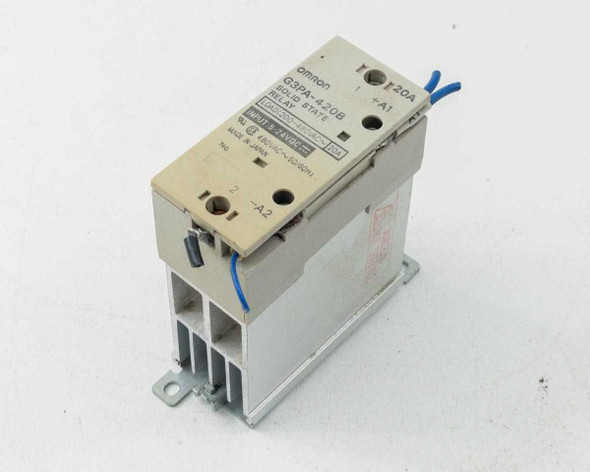

Omron G3PA-420B Solid State Relay 20A 200-480VAC 24VDC Input 50-60Hz SSR
Omron
$50.00Was: $100.00Omron G3PA-420B Solid State Relay 20A 200-480VAC 24VDC Input 50-60Hz SSR Solid state relay (SSR) with integrated aluminum heat sink for switching AC loads. Operates on 3-32VDC control input and handles 20A at 200-480VAC output with zero-cross switching...53207- SKU:
- 53207
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Omron
- Model:
- G3PA-420B
- MPN:
- G3PA-420B
- Type:
- Solid State Relay (SSR)
- SKU:
- 53207
- Load Voltage:
- 200-480VAC
- Load Current:
- 20A
- Control Input Voltage:
- 3-32VDC
- Frequency:
- 50/60Hz
- Switching Type:
- Zero-Cross (AC Output)
- Relay Series:
- G3PA
- Heat Sink:
- Integrated aluminum heat sink included
- Mounting:
- Panel Mount / DIN Rail compatible
- Country/Region of Manufacture:
- Japan
- Certifications:
- UL, CE
- Seller Notes:
- Unit includes integrated heat sink as shown in photos.
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- This Omron G3PA-420B Solid State Relay was removed from a large industrial controller system and is in good used condition. The relay module and integrated aluminum heat sink are intact with no visible damage.
$50.00Was: $100.00
