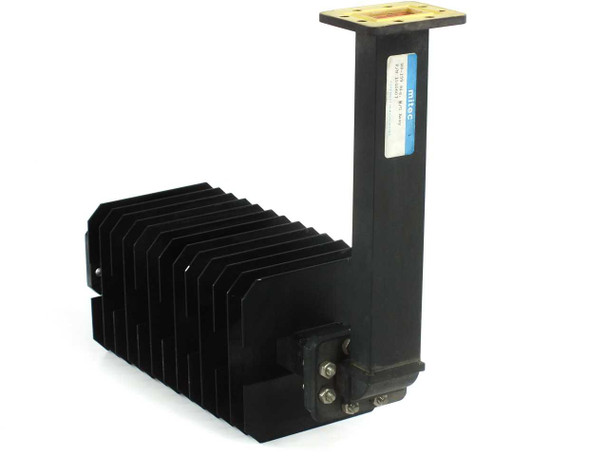

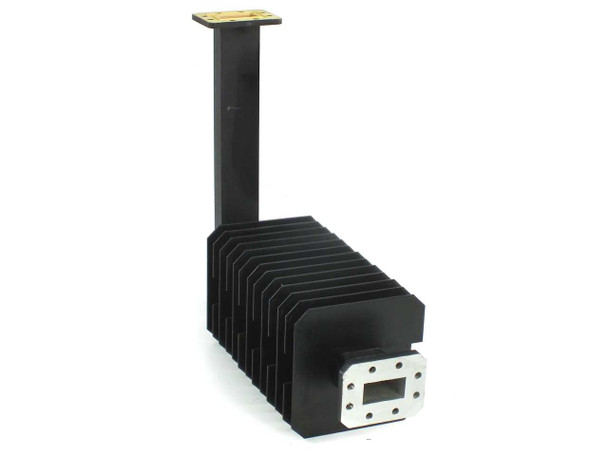

Mitec WR-159 1000W F-Band C-Band Waveguide Dummy Load Extender P/N 1510607
Rigid waveguide dummy load extender rated for 1000 watts. Extends RF power absorption capacity for TWTA transmitter testing applications. WR-159 rectangular waveguide flange connection.
Specifications & What's Included
- Model: WR-159 Rigid Waveguide Assembly
- Power Rating: 1000 watts
- Frequency Band: F-Band / C-Band compatible
- Port Dimensions: 40.386 x 20.193 mm
- Load Extender Dimensions: 13" x 5" x 5"
- Overall Dimensions: 16" x 14" x 5"
- Flange Type: Rectangular waveguide (WR-159)
- Manufactured in Canada
- Unit only; C-Band to F-Band transition adapter not included
Applications
Used in RF power load extension and TWTA transmitter testing for C-Band systems. Compatible with C-Band TWTA transmitters when used with appropriate WR-159 transition adapters. Dummy loads are standard test equipment in transmitter validation and RF system commissioning.
Condition: Used
This Mitec WR-159 Waveguide Dummy Load Extender (P/N 1510607) was tested good at our facility during C-Band TWTA transmitter testing. We used a C-Band to F-Band transition adapter to match port sizes during testing — that adapter is not included with this unit. The unit shows typical wear consistent with prior use in a professional RF testing environment. Please view our photo set and contact us if you have any questions.
This Mitec WR-159 Waveguide Dummy Load Extender (P/N 1510607) was tested good at our facility during C-Band TWTA transmitter testing. We used a C-Band to F-Band transition adapter to match port sizes during testing — that adapter is not included with this unit. The unit shows typical wear consistent with prior use in a professional RF testing environment. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Mitec |
Model: |
WR-159 Rigid Waveguide Assembly |
MPN: |
1510607 |
Type: |
Waveguide Dummy Load Extender |
SKU: |
52448 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Unit only; C-Band to F-Band transition adapter not included |
Waveguide Size: |
WR-159 |
Frequency Band: |
F-Band / C-Band Compatible |
Power Rating: |
1000 Watts |
Port Dimensions: |
40.386 x 20.193 mm |
Load Extender Dimensions: |
13" x 5" x 5" |
Overall Dimensions: |
16" x 14" x 5" |
Flange Type: |
Rectangular waveguide flange (WR-159) |
Application: |
TWTA transmitter testing, RF power load extension |
Compatible With: |
C-Band TWTA transmitters (with WR-159 transition) |
Country/Region of Manufacture: |
Canada |
Condition Notes: |
Mitec WR-159 1000W waveguide dummy load extender, P/N 1510607. Tested good at our facility during C-Band TWTA transmitter testing. C-Band to F-Band transition adapter not included. Typical wear from prior use. |
