Altronix ALTV1224DC2 16-Output 12/24VDC CCTV Camera Power Supply BC300
This is a 16-channel regulated power supply designed to distribute 12VDC or 24VDC power to multiple CCTV cameras and related equipment. The unit delivers filtered, electronically regulated output with individual fuse protection on each channel.
Specifications & What's Included
- 16 selectable output channels (12VDC or 24VDC)
- 0.375A per device, 3.5A maximum per output
- 6A continuous total output current
- Input: 115VAC, 50/60 Hz
- Individual fuse protection per output
- LED indicators for AC input and DC output status
- BC300 metal lockable enclosure with wall/surface mount design
- Operating temperature range: 0°C to 49°C
- Maintains camera synchronization
- RoHS compliant, manufactured in USA
Applications
This supply type is commonly used in multi-camera CCTV installations requiring centralized power distribution. It supports both analog and digital camera systems, DVR setups, and mixed surveillance networks. The selectable voltage output accommodates various camera models and PTZ equipment specifications. Typical installations include retail security systems, building surveillance, and access control camera arrays where multiple cameras operate from a single power source.

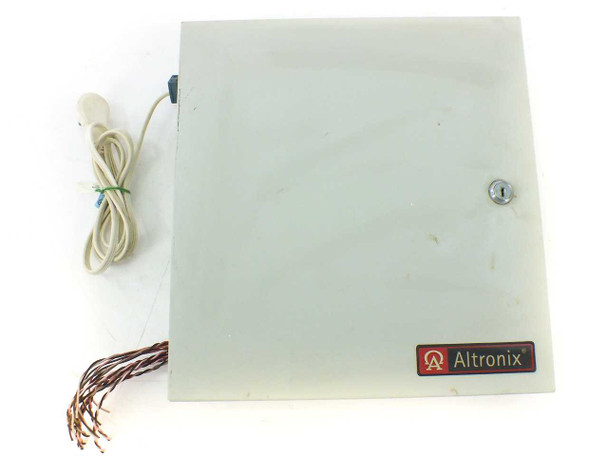

This Altronix ALTV1224DC2 CCTV Camera Power Supply has been powered and tested at our facility and is in good working order — all 16 output terminals were measured at 13.2 VDC with the unit connected to 115 VAC wall power. The BC300 metal enclosure shows typical light surface wear consistent with normal use. The internal PD16W fuse distribution board and main power PCB are clean and intact, with all fuses present. The AC power cord is attached and output wire leads are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Altronix |
Model: |
ALTV1224DC2 |
MPN: |
ALTV1224DC2 |
Type: |
CCTV Camera & Accessory Power Supply |
SKU: |
52718 |
Number of Outputs: |
16 |
Output Voltage: |
12VDC or 24VDC (selectable) |
Output Current per Port: |
0.375A per device, 3.5A max per output |
Total Output Current: |
6A continuous |
Input Voltage: |
115VAC, 50/60 Hz |
Input Current: |
2.55A |
AC Input VA Requirement: |
293.25 VA |
Fuse Protection: |
Yes — individual fuse per output |
Output Regulation: |
Filtered and electronically regulated |
Enclosure: |
BC300 metal lockable enclosure |
Indicators: |
AC input and DC output LED indicators |
Power Switch: |
ON/OFF switch included |
Camera Synchronization: |
Yes — maintains camera sync |
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
Relative Humidity: |
85% ±5% |
BTU/Hr (12VDC): |
37 BTU/Hr |
BTU/Hr (24VDC): |
75 BTU/Hr |
Distribution Board: |
PD16W internal fuse distribution board |
RoHS Compliant: |
Yes |
Country/Region of Manufacture: |
United States |
Form Factor: |
Wall/Surface Mount Metal Enclosure |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Unit only — no additional accessories. AC power cord attached. |
Condition Notes: |
Altronix ALTV1224DC2 CCTV power supply tested and working — all 16 output terminals confirmed at 13.2 VDC on 115 VAC. BC300 enclosure shows light surface wear. Internal boards clean, all fuses present. AC cord attached. |
