Miteq

Miteq U-9453 C-Band Upconverter 70/140 MHz IF to 5.85-6.65 GHz RF Satcom

(No reviews yet) Write a Review
SKU:
52451
MPN:
U-9453
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
31.00 LBS
Shipping:
Calculated at Checkout

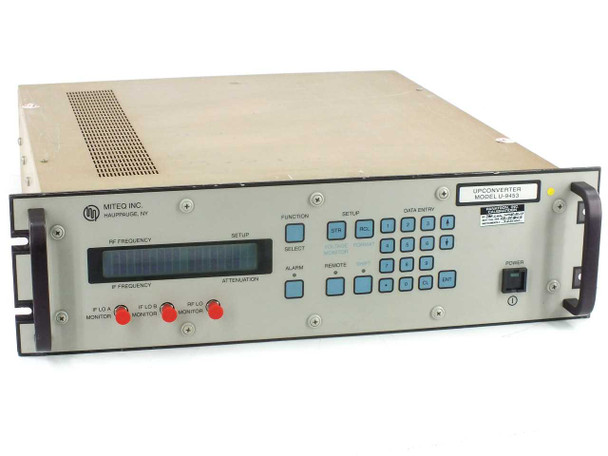

  • Miteq U-9453 C-Band upconverter – front panel view showing LCD display, keypad, and IF/RF frequency monitors

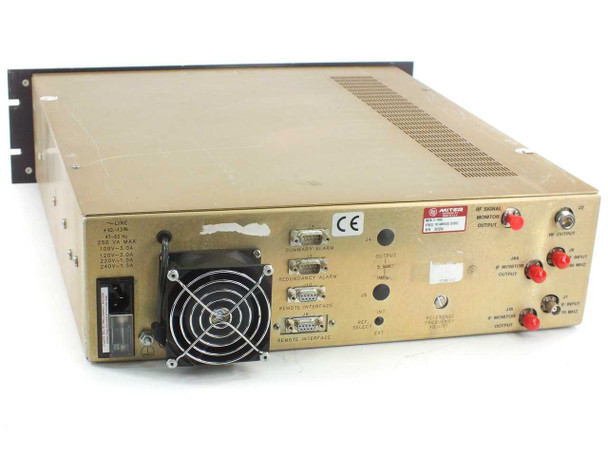

  • Miteq U-9453 upconverter – rear panel view showing RF output, IF input ports, DB9 alarm and remote interface connectors, and cooling fan
  • Miteq U-9453 front panel close-up showing RF Frequency and IF Frequency LCD display with IF LO A, IF LO B, and RF LO monitor ports

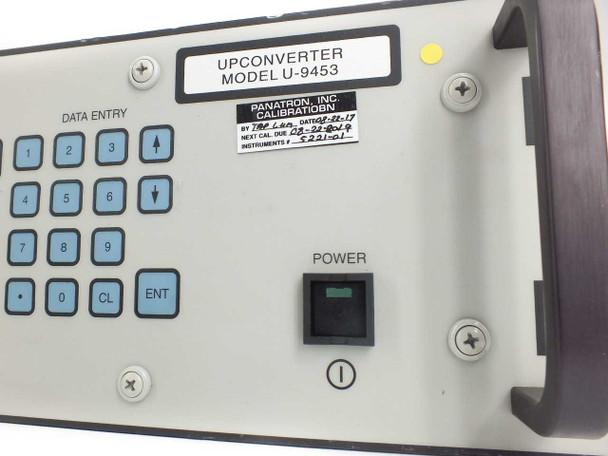

  • Miteq U-9453 upconverter – data entry keypad and power switch detail with Panatron Inc. calibration label

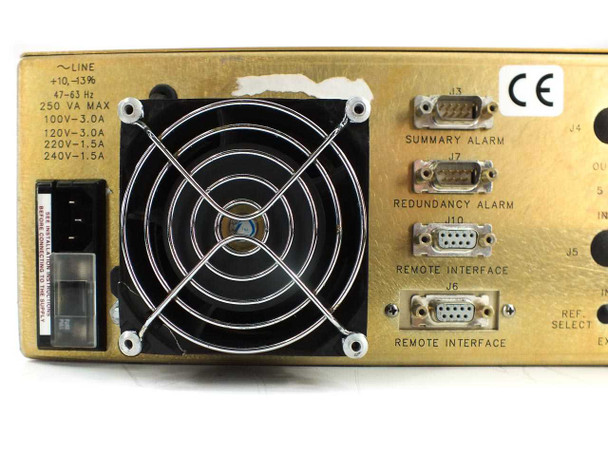

  • Miteq U-9453 rear panel detail showing power input rating plate (100-240V, 250 VA max), cooling fan, and alarm/remote interface DB9 connectors

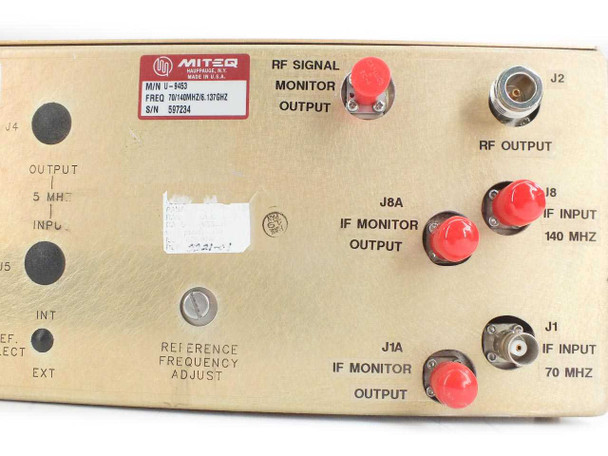

  • Miteq U-9453 rear panel right section showing RF Signal Monitor, RF Output, IF Monitor outputs, IF Input 70 MHz (J1), IF Input 140 MHz (J8), and reference frequency adjust
  • Miteq U-9453 identification label showing M/N U-9453, FREQ 70/140MHz/6.137GHz, S/N 597234, Made in USA
$1,800.00
Was: $3,600.00
Current Stock: 1

Sold Out

Description

Miteq U-9453 C-Band Upconverter 70/140 MHz IF to 5.85-6.65 GHz RF Satcom

C-Band RF upconverter for satellite earth station uplink applications. Converts 70 MHz or 140 MHz intermediate frequency signals to 5.85–6.65 GHz RF output for C-Band satcom transmission.

Specifications & What's Included

  • IF Input: 70 MHz / 140 MHz selectable
  • RF Output: 5.85–6.65 GHz
  • LO Frequency: 6.137 GHz
  • Power: 100–120V AC 3.0A or 220–240V AC 1.5A (47–63 Hz)
  • Rackmount: 29" W × 24" D × 5" H
  • Front panel LCD + keypad; remote interface; alarm outputs
  • SMA/Type-N RF connectors; BNC monitor outputs

Applications

The U-9453 is used in satellite earth stations for uplink signal conversion. C-Band upconverters are standard equipment in fixed and transportable VSAT hubs, teleport facilities, and broadcast uplink stations where IF baseband signals require conversion to C-Band RF frequencies for transmission to satellites. This unit supports redundancy monitoring and remote control typical of carrier-grade satcom infrastructure.

Condition: Used
This Miteq U-9453 C-Band upconverter has been tested at our facility and is in good working condition. Cosmetically, the unit is in very good shape — the front panel, keypad, and LCD display are clean and show only light signs of use. The gold-anodized chassis shows minor surface scuffs typical of a racked instrument. All front-panel controls, monitor ports, and connectors appear intact. A Panatron Inc. calibration label is visible on the front panel. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Miteq
Model:
U-9453
MPN:
U-9453
Type:
C-Band RF Upconverter
SKU:
52451
Frequency Band:
C-Band
IF Input Frequency:
70 MHz / 140 MHz
RF Output Frequency Range:
5.85 - 6.65 GHz
LO Frequency:
6.137 GHz
Power Requirements:
100-120V AC 3.0A / 220-240V AC 1.5A, 47-63 Hz
Power Consumption:
250 VA Max
Form Factor:
Rackmount
Dimensions:
29" W x 24" D x 5" H
Interface / Connectors:
SMA/Type-N RF ports, DB9 remote interface, BNC monitors
Control / Interface:
Front panel keypad + LCD display; remote interface (x2)
Alarm Outputs:
Summary Alarm, Redundancy Alarm (DB9)
Reference:
Internal / External selectable
Monitor Outputs:
IF LO A, IF LO B, RF LO, RF Signal, IF Monitor (70 MHz), IF Monitor (140 MHz)
Condition:
Used – Inspected and Tested
Seller Notes:
Unit only; tested working at our facility, good cosmetic condition
Country/Region of Manufacture:
United States
Application:
Satellite Earth Station Uplink, C-Band Satcom Transmission
Condition Notes:
Miteq U-9453 C-Band upconverter. Tested at our facility and in good working condition. Cosmetically very good — light surface wear only. All connectors and controls intact. Please view photos and contact us with questions.
View AllClose
