Miteq U-8153/38152 C-Band Upconverter Dual Conversion 70 MHz IF 6 GHz Satcom

(No reviews yet) Write a Review
SKU:
49618
MPN:
U-8153 / 38152
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
37.00 LBS
Shipping:
Calculated at Checkout
  • Miteq U-8153/38152 C-Band Upconverter – front panel view showing Gain Adjust, Alarms, Remote, and Frequency Select controls with RF Monitor port
  • Miteq U-8153/38152 C-Band Upconverter – rear three-quarter view showing AC power inlet, cooling fan, remote interface connectors, and RF output port

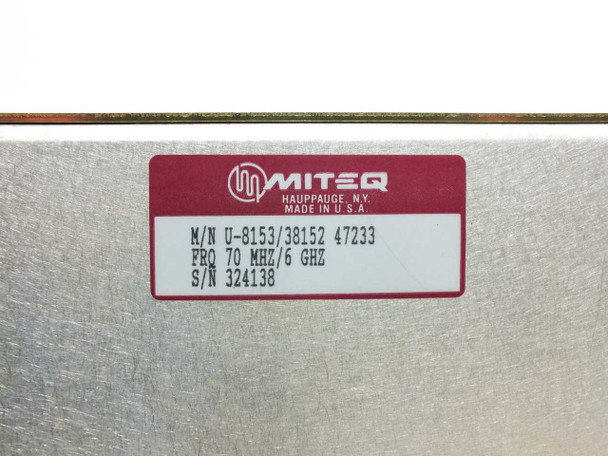

  • Miteq U-8153/38152 rating label – shows M/N U-8153/38152 47233, FRQ 70 MHz/6 GHz, S/N 324138, Made in U.S.A.
  • Miteq U-8153/38152 C-Band Upconverter – front panel full view with UPCONVERTER model label and Miteq Inc. Hauppauge NY branding

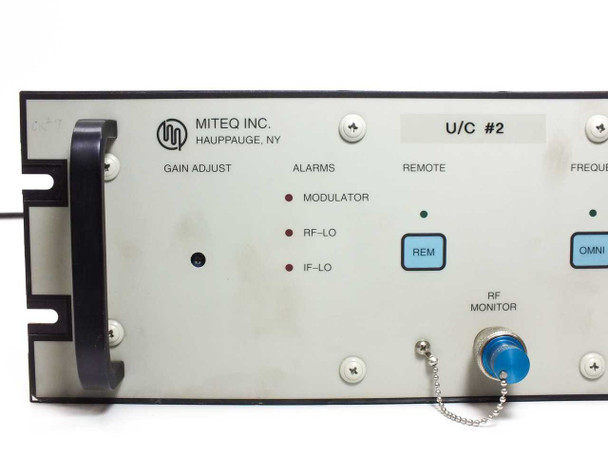

  • Miteq U-8153/38152 front panel close-up – Alarms section showing Modulator, RF-LO, IF-LO LEDs; Remote REM button; RF Monitor BNC port
  • Miteq U-8153/38152 front panel detail – Frequency Select section with OMNI and DISH pushbuttons, 1 kHz Monitor and 1 kHz Adjust ports
  • Miteq U-8153/38152 right side panel – UPCONVERTER MODEL U-8153/38152 label, HCI Capital and PanAmSat asset tags, Power LED indicator

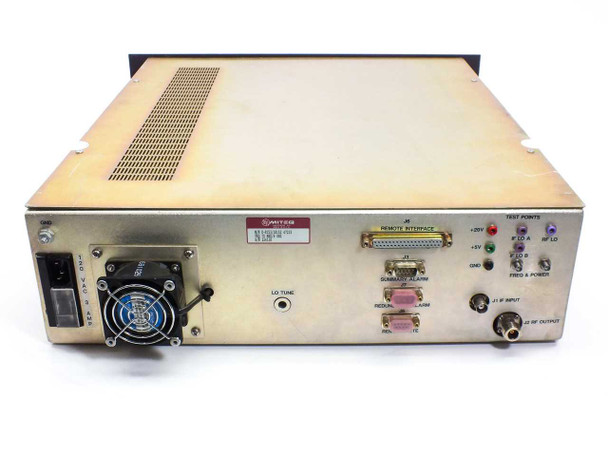

  • Miteq U-8153/38152 rear panel angled view – showing J6 Remote Interface D-Sub, J3 Summary Alarm, J7 Redundancy Alarm, J8 Remote Mute, J1 IF Input, J2 RF Output, and test points
  • Miteq U-8153/38152 left side panel – 120 VAC 3A power inlet with circuit breaker, cooling fan, LO Tune port, and Miteq rating label

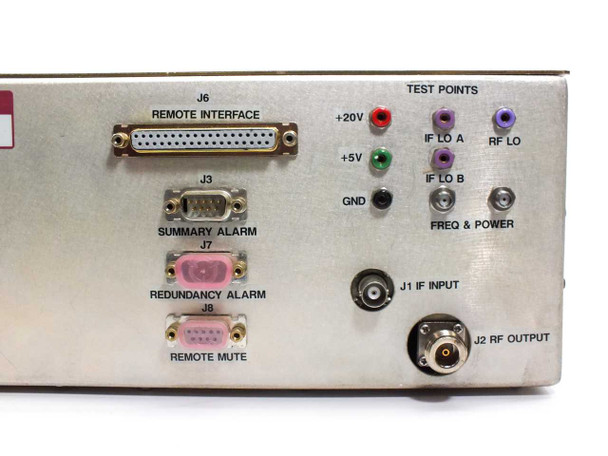

  • Miteq U-8153/38152 rear panel close-up – J6 Remote Interface (25-pin D-Sub), J3 Summary Alarm, J7 Redundancy Alarm, J8 Remote Mute, J1 IF Input BNC, J2 RF Output, and labeled test points (+20V, +5V, GND, IF LO A, IF LO B, RF LO, Freq & Power)
  • Miteq U-8153 / 38152 C-Band Upconverter Dual Conversion 5.845~6.425 GHz
  • Miteq U-8153 / 38152 C-Band Upconverter Dual Conversion 5.845~6.425 GHz
  • Miteq U-8153 / 38152 C-Band Upconverter Dual Conversion 5.845~6.425 GHz
  • Miteq U-8153 / 38152 C-Band Upconverter Dual Conversion 5.845~6.425 GHz
$575.00
Was: $1,200.00
Current Stock: 2

Sold Out

Description

Miteq U-8153/38152 C-Band Upconverter Dual Conversion 70 MHz IF 6 GHz Satcom

C-Band satellite upconverter performing dual conversion from 70 MHz intermediate frequency to 5.845–6.425 GHz RF output. Converts baseband signals for transmission on C-Band satellite links.

Specifications & What's Included

  • Model: U-8153/38152 (MPN: U-8153/38152 47233)
  • Conversion Type: Dual Conversion
  • IF Input: 70 MHz (BNC/N-type connector, rear panel)
  • RF Output: 5.845–6.425 GHz (C-Band transmit)
  • Remote Control: RS-232 D-Sub 25-pin interface
  • Alarms: Modulator, RF-LO, IF-LO indicators; Summary and Redundancy outputs
  • Power: 120 VAC, 3A
  • Form Factor: Rackmount
  • Manufacturer: Miteq, Hauppauge, NY

Applications

Used in satellite earth stations and teleport facilities for uplink transmission. Converts IF baseband signals to C-Band RF for modulated satellite transmission. Commonly deployed in VSAT networks, broadcast uplinks, and redundant satellite communication systems requiring dual-conversion architecture.

Condition: Used
This Miteq U-8153/38152 C-Band Upconverter has been inspected and is in good used condition. It was pulled from a working satellite earth station environment where it was actively in use and functional. The chassis shows normal surface wear consistent with rack-mounted service use. The front panel controls, LED indicators, and connectors are all intact and undamaged. The rear panel connectors — including the D-Sub remote interface, alarm outputs, IF input, and RF output — are present and in good condition. The cooling fan and power inlet are intact on the left side panel. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Miteq
Model:
U-8153/38152
MPN:
U-8153/38152 47233
Secondary Model:
38152
Type:
C-Band Satellite Upconverter
SKU:
49618
Conversion Type:
Dual Conversion
IF Input Frequency:
70 MHz
RF Output Frequency Range:
5.845 – 6.425 GHz
Frequency Band:
C-Band (Transmit)
IF Input Connector:
J1 IF Input (BNC/N-type, rear panel)
RF Output Connector:
J2 RF Output (rear panel)
Remote Interface:
J6 Remote Interface (D-Sub 25-pin), RS-232 remote
Alarm Outputs:
Summary Alarm (J3), Redundancy Alarm (J7), Remote Mute (J8)
Front Panel Alarms:
Modulator, RF-LO, IF-LO LED indicators
Front Panel Controls:
Gain Adjust, Remote (REM), Frequency Select (OMNI/DISH)
Front Panel Monitors:
RF Monitor port, 1 kHz Monitor, 1 kHz Adjust, Deviation Adjust
Rear Panel Test Points:
+20V, +5V, GND, IF LO A, IF LO B, RF LO, Freq & Power
LO Tune:
LO Tune port on rear panel
Power Requirements:
120 VAC, 3A
Form Factor:
Rackmount
Country/Region of Manufacture:
United States
Manufacturer Location:
Hauppauge, NY
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; pulled from working satellite earth station environment
Condition Notes:
Miteq U-8153/38152 C-Band Upconverter in good used condition. Pulled from a working satellite earth station where it was in active use and functional. Normal rack-service wear. All connectors and panel controls intact.
