Xunlight
-

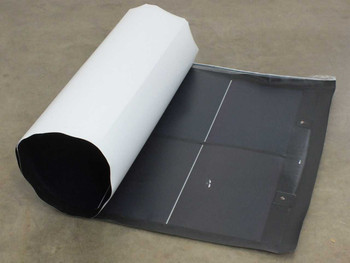

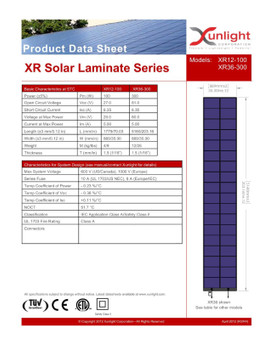

Xunlight XRD12-100 100W Flexible Amorphous Solar Panel 12V Off-Grid 37x70in
Xunlight
$125.00Was: $250.00Xunlight XRD12-100 100W Flexible Amorphous Solar Panel 12V Off-Grid 37x70inThe Xunlight XRD12-100 is a 100-watt flexible amorphous silicon solar panel from Xunlight Corporation's XR Solar Laminate...52401- SKU:
- 52401
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 15.00 LBS
- Brand:
- Xunlight
- Model:
- XRD12-100
- MPN:
- XRD12-100
- Type:
- Flexible Amorphous Silicon Solar Panel
- SKU:
- 52401
- Series:
- XR Solar Laminate Series
- Power Output:
- 100 Watts (Pmax)
- Open Circuit Voltage (Voc):
- 27.0 V
- Voltage at Max Power (Vmp):
- 20.0 V
- Short Circuit Current (Isc):
- 6.35 A
- Current at Max Power (Imp):
- 5.00 A
- Max System Voltage:
- 600 V (US/Canada), 1000 V (Europe)
- Series Fuse Rating:
- 10 A (UL 1703/US NEC), 8 A (Europe/IEC)
- NOCT:
- 51.7°C
- Temp Coefficient of Power:
- -0.23 %/°C
- Temp Coefficient of Voc:
- -0.38 %/°C
- Temp Coefficient of Isc:
- +0.11 %/°C
- Classification:
- IEC Application Class A / Safety Class II
- UL 1703 Fire Rating:
- Class A
- Solar Cell Technology:
- Amorphous Silicon (a-Si)
- Encapsulation:
- EVA and ETFE over stainless steel substrate
- Panel Dimensions:
- 37 in W x 70 in L (approx.; untrimmed, may vary)
- Panel Length (mm):
- 1779 mm (±3 mm / 0.12 in)
- Panel Width (mm):
- 889 mm (±3 mm / 0.12 in)
- Thickness:
- 1.5 mm (1/16 in)
- Flexibility:
- Flexible and rollable
- Connection Type:
- Metal solder tabs + MC4 J-Box (included)
- Application:
- 12V Off-Grid Battery Charging
- Grid Compatibility:
- Off-grid only — not for grid-tie use
- Country/Region of Manufacture:
- United States
- Manufacturer Years Active:
- Made in Ohio USA, 2012–2015
- Certifications:
- TUV, CE, ETL, Safety Class II
- Seller Notes:
- Includes free MC4 J-Box. Metal solder tabs on top for wire connection.
- Condition Notes:
- Xunlight XRD12-100 100W Flexible Amorphous Solar Panel — new old stock, unused and uninstalled. Made in Ohio USA 2012–2015. Includes MC4 J-Box. Multiple units available; unit shipped may vary from photo.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$125.00Was: $250.00 -
Xunlight XSS11-35 35W Flexible Amorphous Solar Panel 12V Battery Charging
Xunlight
$40.00Was: $50.00Xunlight XSS11-35 35W Flexible Amorphous Solar Panel 12V Battery ChargingFlexible amorphous thin-film solar panel rated for 35W output at 12V. Designed for direct battery charging applications in...52111- SKU:
- 52111
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Xunlight
- Model:
- XSS11-35
- MPN:
- XSS11-35
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- SKU:
- 52111
- Power Output:
- 35W (35 Watts)
- Solar Cell Technology:
- Amorphous Silicon (a-Si) Thin-Film
- Panel Flexibility:
- Flexible / Rollable
- Recommended Battery Voltage:
- 12V
- Application:
- Battery Charging, RV, Marine, Off-Grid
- Form Factor:
- Flexible / Rollable Panel
- Condition:
- Used – Inspected
- Seller Notes:
- Panel only; no charge controller or mounting hardware included.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Xunlight XSS11-35 35W flexible amorphous solar panel in used condition. Shows cell discoloration across surface typical of age and sun exposure. Flexible backing intact. Not electrically tested. Please review photos closely before purchasing.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$40.00Was: $50.00 -

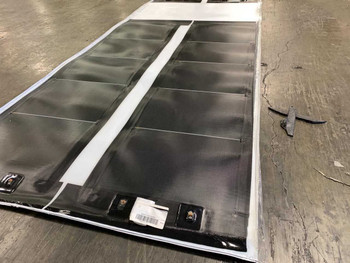

Xunlight XRS5-42 42W Flexible Amorphous Solar Panel 42 Watt Battery Charging
Xunlight
$60.00Was: $125.00Xunlight XRS5-42 42W Flexible Amorphous Solar Panel 42 Watt Battery ChargingThe Xunlight XRS5-42 is a 42-watt flexible amorphous silicon thin-film solar panel designed for battery charging and...52109- SKU:
- 52109
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 12.00 LBS
- Brand:
- Xunlight
- Model:
- XRS5-42
- MPN:
- XRS5-42
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- SKU:
- 52109
- Power Output:
- 42 Watts
- Solar Cell Technology:
- Amorphous Silicon (Thin Film)
- Flexibility:
- Flexible
- Application:
- Battery Charging, Off-Grid, Portable Power
- Cables Included:
- No
- Sold As:
- Individually (trimmed from sheet before shipping)
- Condition:
- New
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Sold individually; trimmed from large sheet prior to shipping. No cables included.
- Condition Notes:
- New Xunlight XRS5-42 42W flexible amorphous solar panels. Sold individually; trimmed from the large uncut sheet before shipping. No cables included. Photos show the full 6-panel sheet prior to trimming.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$60.00Was: $125.00 -

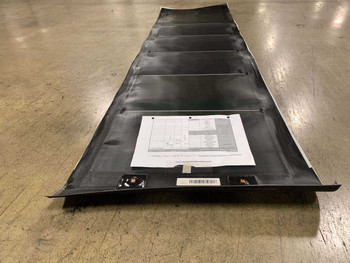

Xunlight XRS6-50 50W Flexible Amorphous Solar Panel 12V Battery Charging w/ MC4
Xunlight
$60.00Was: $125.00Xunlight XRS6-50 50W Flexible Amorphous Solar Panel 12V Battery Charging w/ MC4The Xunlight XRS6-50 is a 50-watt flexible amorphous silicon solar panel designed for 12V battery charging applications...52106- SKU:
- 52106
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 12.00 LBS
- Brand:
- Xunlight
- Model:
- XRS6-50
- MPN:
- XRS6-50
- Type:
- Flexible Amorphous Solar Panel
- SKU:
- 52106
- Power Output:
- 50W
- Solar Cell Technology:
- Amorphous Silicon (Thin Film)
- Panel Flexibility:
- Flexible
- Application:
- 12V Battery Charging
- Connector Type:
- MC4
- Compatible With:
- RV, Marine, Off-Grid, Portable Power Systems
- Condition:
- Open Box – Partially finished; no factory cables
- Seller Notes:
- Includes free MC4 cable set with J-box on every order
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Xunlight XRS6-50 50W Flexible Amorphous Solar Panel. Open box, brand new, never installed. Partially finished — no factory cables. Free MC4 cable set with J-box included with every order.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$60.00Was: $125.00 -

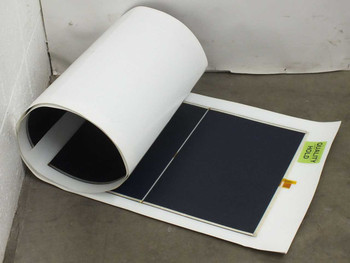

Xunlight XLS8-52 52W 12V Flexible Amorphous Solar Panel ETFE RV Boat Off-Grid
Xunlight
$70.00Was: $150.00Xunlight XLS8-52 52W 12V Flexible Amorphous Solar Panel ETFE RV Boat Off-GridThe Xunlight XLS8-52 is a 52-watt, 12-volt nominal flexible amorphous silicon solar panel built with an ETFE (ethylene...52105- SKU:
- 52105
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 10.00 LBS
- Brand:
- Xunlight
- Model:
- XLS8-52
- MPN:
- XLS8-52
- SKU:
- 52105
- Type:
- Flexible Amorphous Solar Panel
- Power Output:
- 52 Watts
- Nominal Voltage:
- 12V
- Maximum Power Voltage (Vmp):
- 13V
- Maximum Power Current (Imp):
- 4A
- Open Circuit Voltage (Voc):
- 16V
- Short Circuit Current (Isc):
- 4A
- Cell Technology:
- Amorphous Silicon (Thin Film)
- Top Sheet Material:
- ETFE (No Glass)
- Panel Dimensions:
- 79 x 15.5 inches (untrimmed)
- Flexibility:
- Flexible / Rollable
- Connection Type:
- MC4 (cable set included)
- Output Connector:
- Exposed metal tabs + MC4 J-Box cable set
- Application:
- Battery Charging, RV, Boat, Van, Off-Grid
- Country/Region of Manufacture:
- United States
- Condition:
- New – Factory Second (cosmetic issues, untrimmed)
- Seller Notes:
- Factory second, untrimmed panels; includes free MC4 cable set with J-Box
- Panel Grade:
- Factory Second
- Trim Status:
- Untrimmed – allows DIY grommet/fastener placement
- Condition Notes:
- Xunlight XLS8-52 52W flexible amorphous solar panel — factory second, never sold by manufacturer. Untrimmed with cosmetic issues; physically intact. Includes free MC4 cable set with J-Box. Made in Ohio USA. Contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$70.00Was: $150.00 -

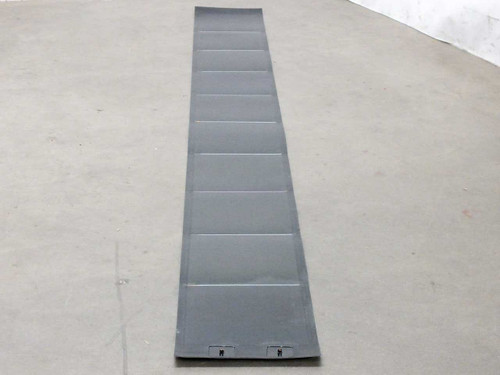

Xunlight XNS10-55 Flexible Amorphous Solar Panel 55W 15V Battery Charging
Xunlight
$69.00Was: $150.00Xunlight XNS10-55 Flexible Amorphous Solar Panel 55W 15V Battery ChargingThe Xunlight XNS10-55 is a flexible, rollable thin-film amorphous silicon solar panel rated at 55 watts and 15 volts DC...52104- SKU:
- 52104
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 7.00 LBS
- Brand:
- Xunlight
- Model:
- XNS10-55
- MPN:
- XNS10-55
- SKU:
- 52104
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- Power Output:
- 55 Watts
- Load Voltage:
- 15V DC
- Load Current:
- 3.6A
- Open Circuit Voltage (Voc):
- 20V DC
- Short Circuit Current (Isc):
- 4.7A
- Number of Cells:
- 10
- Cell Dimensions:
- 10.75" L x 10.25" W
- Panel Dimensions:
- 116" L x 12" W (9.6 ft long)
- Rolled Diameter:
- Approx. 12 inches
- Connector Type:
- Metal Tabs
- Cell Technology:
- Amorphous Silicon (Thin Film)
- Application:
- Battery Charging, Off-Grid Solar
- Country/Region of Manufacture:
- United States
- Condition:
- New – Factory Second (minor cosmetic blemishes)
- Seller Notes:
- Factory second — new/unused with minor cosmetic blemishes. Metal tab connectors; no cables included.
- Condition Notes:
- Xunlight XNS10-55 Flexible Solar Panel — new, unused factory second from Xunlight's Toledo, OH facility. Minor cosmetic blemishes from manufacturing only; no functional defect. Metal tab connectors; no cables included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$69.00Was: $150.00 -
Xunlight XRS8-64 64W Flexible Amorphous Solar Panel 8-Cell 91x17.75in
Xunlight
Xunlight XRS8-64 64W Flexible Amorphous Solar Panel 8-Cell 91x17.75inA flexible amorphous silicon solar panel designed for portable and off-grid power generation. The rollable form factor allows...52103- SKU:
- 52103
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 10.00 LBS
- Brand:
- Xunlight
- Model:
- XRS8-64
- MPN:
- XRS8-64
- Type:
- Flexible Amorphous Solar Panel
- SKU:
- 52103
- Power Output:
- 64W (64 Watts)
- Cell Technology:
- Amorphous Silicon (Thin Film)
- Number of Cells:
- 8
- Dimensions:
- 91 x 17.75 inches
- Rolled Diameter:
- 12 inches (approximate)
- Form Factor:
- Flexible / Rollable
- Application:
- Battery Charging, Off-Grid, RV, Marine, Portable
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Panel only; wire leads visible. Cell/border color may vary from photos.
- Condition:
- Used – Inspected
- Condition Notes:
- Xunlight XRS8-64 64W Flexible Amorphous Solar Panel in used condition. Inspected; shows typical wear. Cell/border color may vary from photos. Wire leads present. Contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
-

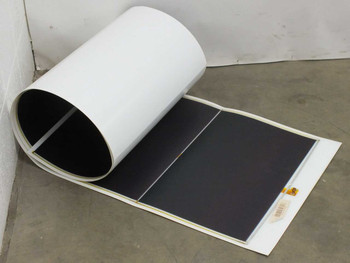

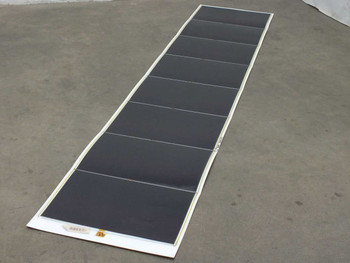

Xunlight XRS8-66 66W Flexible Amorphous Solar Panel RV Camping 91x17.75in
Xunlight
$80.00Was: $150.00Xunlight XRS8-66 66W Flexible Amorphous Solar Panel RV Camping 91x17.75inFlexible thin-film amorphous silicon solar panel rated at 66W peak power output. The rollable design and lightweight...52102- SKU:
- 52102
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 15.00 LBS
- Brand:
- Xunlight
- Model:
- XRS8-66
- MPN:
- XRS8-66
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- SKU:
- 52102
- Seller Notes:
- Includes MC4 cables with J-Box for DIY installation. Metal tab connections.
- Country/Region of Manufacture:
- United States
- Power Output:
- 66W (Pmax)
- Peak Power Voltage (Vpmax):
- 12.8V
- Peak Power Current (Ipmax):
- 5.0A
- Open Circuit Voltage (Voc):
- 18V
- Short Circuit Current (Isc):
- 6.35A
- Dimensions:
- 91 x 17.75 inches (7.5 feet long)
- Rolled-Up Diameter:
- Approx. 12 inches
- Number of Solar Cells:
- 8 cells (11 x 17 inches each)
- Connector Type:
- Metal Tabs (exposed copper, MC4 J-Box included)
- Solar Cell Technology:
- Amorphous Silicon (Thin-Film)
- Form Factor:
- Flexible / Rollable
- Application:
- RV, Camping, Off-Grid Battery Charging
- Condition:
- New – Factory Second (minor cosmetic blemishes)
- Condition Notes:
- Xunlight XRS8-66 66W Flexible Solar Panel — new factory second from Xunlight, Toledo OH. Minor cosmetic blemishes from manufacturing; electrical performance unaffected. Metal tab connections; MC4 J-Box cables included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$80.00Was: $150.00 -
Xunlight XUS10-71 71W 12V Flexible Amorphous Solar Panel RV Boat w/ MC4 Cables
Xunlight
$80.00Was: $150.00Xunlight XUS10-71 71W 12V Flexible Amorphous Solar Panel RV Boat w/ MC4 CablesThe Xunlight XUS10-71 is a rollable, flexible amorphous thin-film solar panel rated at 71 watts and 12 volts nominal...52101- SKU:
- 52101
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 7.00 LBS
- Brand:
- Xunlight
- Model:
- XUS10-71
- MPN:
- XUS10-71
- Type:
- Flexible Amorphous Solar Panel
- SKU:
- 52101
- Power Output:
- 71 Watts
- Nominal Voltage:
- 12V
- MPPT Voltage:
- 16V
- Open Circuit Voltage:
- 21V
- Current (Amps):
- 4A +/- @ 16V MPPT
- Number of Solar Cells:
- 10
- Connector Type:
- Metal Tabs (MC4 J-Box cables included)
- Panel Dimensions:
- 116 x 15.5 inches (9.6 feet long)
- Rolled Diameter:
- Approximately 10 inches
- Panel Technology:
- Amorphous Thin Film
- Flexibility:
- Flexible / Rollable
- Adhesive Backing:
- No
- Country/Region of Manufacture:
- United States
- Compatible With:
- RV, Trailer, Boat, Van, Off-Grid Battery Charging
- Seller Notes:
- Includes free MC4 junction box with cables for DIY installation
- Condition:
- New – Factory Seconds (minor cosmetic issues)
- Condition Notes:
- Xunlight XUS10-71 71W flexible solar panels — new factory seconds from Xunlight Solar Ohio. Minor cosmetic issues only; panels are new and unused. MC4 junction box with cables included. Cell color/border may vary.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$80.00Was: $150.00 -
Xunlight XLS12-78 78W 19.2V Flexible Amorphous Solar Panel 120x16 Metal Tabs
Xunlight
$80.00Was: $150.00Xunlight XLS12-78 78W 19.2V Flexible Amorphous Solar Panel 120x16 Metal TabsFlexible amorphous thin-film solar panel rated at 78W peak power. The rollable design allows deployment in confined spaces...52099- SKU:
- 52099
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 12.00 LBS
- Brand:
- Xunlight
- Model:
- XLS12-78
- MPN:
- XLS12-78
- SKU:
- 52099
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- Peak Power (Pmax):
- 78 Watts
- Peak Power Voltage (Vpmax):
- 19.2 V
- Peak Power Current (Ipmax):
- 4.09 A
- Open Circuit Voltage (Voc):
- 26.4 V
- Short Circuit Current (Isc):
- 5.1 A
- Number of Solar Cells:
- 12
- Cell Dimensions:
- 9.125" L x 13.125" W (approx.)
- Panel Dimensions:
- 120 x 16.25 inches (10 x 1.35 ft)
- Rolled-Up Diameter:
- 12 inches (approx.)
- Connector Type:
- Metal Copper Tabs
- Solar Cell Technology:
- Amorphous Silicon (Thin Film)
- Form Factor:
- Flexible / Rollable
- What's Included:
- Panel, MC4 DIY J-Box cable set
- Application:
- Battery Charging, Off-Grid, DIY Solar
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Factory Second (minor cosmetic blemishes)
- Seller Notes:
- Factory second from Xunlight Toledo OH; minor cosmetic blemishes only. MC4 J-Box included.
- Condition Notes:
- New factory second from Xunlight Toledo OH. Minor cosmetic blemishes from manufacturing — no effect on electrical output. Cell/border color may vary from photos. Border dimensions may vary; panel is un-trimmed. Includes free MC4 DIY J-Box cable set.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$80.00Was: $150.00 -
Xunlight XRS10-83 83W 16V Flexible Amorphous Solar Panel RV Boat 118in Long
Xunlight
$85.00Was: $175.00Xunlight XRS10-83 83W 16V Flexible Amorphous Solar Panel RV Boat 118in LongThe Xunlight XRS10-83 is an 83-watt flexible amorphous thin-film solar laminate made in Toledo, Ohio by Xunlight Corporation...52098- SKU:
- 52098
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 9.00 LBS
- Datasheet:
- Solar Laminate Datasheet
- Brand:
- Xunlight
- Model:
- XRS10-83
- MPN:
- XRS10-83
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- SKU:
- 52098
- Power Output:
- 83W (±5%)
- Voltage at Max Power (Vm):
- 16.67V
- Current at Max Power (Im):
- 5.00A
- Open Circuit Voltage (Voc):
- 22.5V
- Short Circuit Current (Isc):
- 6.35A
- Max System Voltage:
- 600V
- Series Fuse Rating:
- 10A
- Number of Solar Cells:
- 10
- Panel Length:
- 118 in (2944 mm) — dimensions vary +/- 3 in
- Panel Width:
- 19 in (454 mm) — dimensions vary +/- 3 in
- Rolled Diameter (approx):
- 12 in
- Thickness:
- 1.5 mm (1/16 in)
- Top Sheet Material:
- ETFE (no glass)
- Connector Type:
- Copper solder tabs / quick disconnect
- Solar Cell Technology:
- Amorphous Silicon (Thin Film)
- NOCT:
- 51.7°C
- Temp Coefficient of Power:
- -0.23 %/°C
- Temp Coefficient of Voc:
- -0.38 %/°C
- Temp Coefficient of Isc:
- +0.12 %/°C
- Fire Rating:
- Class A
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Factory Second, Cosmetic Issues
- Seller Notes:
- No cables included. Copper solder tabs for DIY wiring. Factory second — cosmetic issues, untrimmed edges.
- Compatible With:
- RV, boat, van, trailer, off-grid battery charging
- Application:
- Battery charging, off-grid solar, portable power
- Condition Notes:
- Xunlight XRS10-83 83W flexible solar panel — factory second with cosmetic issues. Untrimmed edges; dimensions vary ±3 in. No cables included; copper solder tabs for DIY wiring. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$85.00Was: $175.00 -
Xunlight XSD38-123 123W 30V Flexible Rollable Amorphous Solar Panel MC4 USA
Xunlight
$150.00Was: $275.00Xunlight XSD38-123 123W 30V Flexible Rollable Amorphous Solar Panel MC4 USAThe Xunlight XSD38-123 is a 123-watt flexible amorphous thin-film solar panel measuring 2.5 feet wide by 8.3 feet long — a...52095- SKU:
- 52095
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 13.00 LBS
- Brand:
- Xunlight
- Model:
- XSD38-123
- MPN:
- XSD38-123
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- SKU:
- 52095
- Rated Power:
- 123 Watts
- Peak Power Voltage (Vmp):
- 33.0V
- Peak Power Current (Imp):
- 3.7A
- Open Circuit Voltage (Voc):
- 42V DC
- Short Circuit Current (Isc):
- 3.7A
- Number of Solar Cells:
- 38
- Cell Technology:
- Amorphous Silicon (Thin Film)
- Panel Dimensions:
- 30.25 in W x 100 in L (2.5 ft x 8.3 ft)
- Rolled-Up Diameter:
- Less than 12 inches
- Connector Type:
- Helios M4 (MC4-compatible)
- Adhesive Backing:
- No — non-adhesive, portable
- Country/Region of Manufacture:
- United States
- Solar Cell Dimensions:
- 13.75 in Wide x 4.75 in Long each
- Form Factor:
- Flexible / Rollable
- Compatible With:
- RV, boat, van, trailer, portable solar generator
- Seller Notes:
- New old stock from Xunlight warehouse. Includes Helios M4 output cable. No adhesive backing. Minor cosmetic variation possible.
- Condition Notes:
- This Xunlight XSD38-123 123W Flexible Amorphous Solar Panel is new old stock (NOS) sourced directly from Xunlight's US warehouse. These panels were manufactured at Xunlight's factory in Ohio before the company closed in 2016 and have been in storage
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $275.00 -
Xunlight XUS19-134 134W 29V Amorphous Flexible Solar Panel RV Boat Camping
Xunlight
$130.00Was: $250.00Xunlight XUS19-134 134W 29V Amorphous Flexible Solar Panel RV Boat CampingThe Xunlight XUS19-134 is a 134-watt rollable thin-film solar panel built around amorphous silicon cells deposited on a...52093- SKU:
- 52093
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 20.00 LBS
- Brand:
- Xunlight
- Model:
- XUS19-134
- MPN:
- XUS19-134
- SKU:
- 52093
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- Country/Region of Manufacture:
- United States
- Power Output:
- 134 Watts
- Voltage at Maximum Power (Vmp):
- 29V
- Current at Maximum Power (Imp):
- 4.6A
- Solar Cell Technology:
- Amorphous Silicon (a-Si)
- Top Sheet Material:
- ETFE (Ethylene Tetrafluoroethylene)
- Encapsulant:
- EVA (Ethylene-Vinyl Acetate)
- Cell Substrate:
- Stainless Steel
- Connector Type:
- MC4
- Flexibility:
- Rollable — rolls to approx. 12 inches diameter
- Backing:
- No peel-and-stick backing
- Application:
- RV, Boat, Camping, Van, Trailer Battery Charging
- Seller Notes:
- Includes MC4 cable set. Cosmetic seconds with lamination blemishes; never used.
- Compatible With:
- 12V/24V battery charging systems, RV, boat, van, trailer
- Condition Notes:
- Xunlight XUS19-134 134W 29V solar panel, factory cosmetic second, never used. Edge delamination/bubbling on ETFE corners. Cell surface and tabs intact. Non-functional cosmetic marks only.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$130.00Was: $250.00 -
Xunlight XRS18-150 150W 30V Flexible Amorphous Solar Panel RV Boat 17-Ft
Xunlight
$140.00Was: $275.00Xunlight XRS18-150 150W 30V Flexible Amorphous Solar Panel RV Boat 17-FtThe Xunlight XRS18-150 is a 150-watt flexible amorphous silicon solar laminate panel measuring approximately 17 feet long and...52090- SKU:
- 52090
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 18.00 LBS
- Datasheet:
- Solar Laminate Datasheet
- Brand:
- Xunlight
- Model:
- XRS18-150
- MPN:
- XRS18-150
- Type:
- Flexible Amorphous Silicon Solar Panel
- SKU:
- 52090
- Power Output:
- 150W (Pmax)
- Voltage at Max Power (Vm):
- 30.0 V
- Open Circuit Voltage (Voc):
- 40.50 V
- Short Circuit Current (Isc):
- 6.35 A
- Current at Max Power (Im):
- 5.00 A
- Length:
- 5198 mm / 204.6 in (approx. 17 ft)
- Width:
- 454 mm / 17.9 in
- Thickness:
- 1.5 mm (1/16 in)
- Max System Voltage:
- 600 V
- Series Fuse Rating:
- 10 A
- NOCT:
- 51.7°C
- Fire Rating:
- Class A
- Cell Technology:
- Amorphous Silicon (a-Si)
- Encapsulant:
- EVA and ETFE
- Substrate:
- Stainless Steel
- Temp Coefficient of Power:
- -0.23 %/°C
- Temp Coefficient of Voc:
- -0.38 %/°C
- Temp Coefficient of Isc:
- +0.12 %/°C
- Connector Type:
- MC4 (loose pair included, unattached)
- Adhesive Backing:
- No
- Output Cables:
- No cables attached; exposed metal tabs for DIY J-Box wiring
- Country/Region of Manufacture:
- United States
- Manufacturing Period:
- 2012–2015
- Compatible With:
- RV, boat, trailer, van, off-grid battery charging systems
- Application:
- Off-grid solar, RV, marine, portable battery charging
- Form Factor:
- Flexible Laminate / Roll
- Condition:
- New – Factory 2nd (cosmetic issues only)
- Seller Notes:
- Includes 1 pair of loose MC4 male/female connectors. No J-Box or wiring included.
- Condition Notes:
- Xunlight XRS18-150 150W flexible solar panel — new, unused factory 2nd with cosmetic blemishes only. Electrically unaffected. Includes 1 loose MC4 connector pair. No J-Box, cables, or adhesive backing included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$140.00Was: $275.00 -
Xunlight XRS19-158 158W 42Voc Flexible Amorphous Solar Panel RV Boat MC4
Xunlight
$124.00Was: $225.00Xunlight XRS19-158 158W 42Voc Flexible Amorphous Solar Panel RV Boat MC4The Xunlight XRS19-158 is a rollable, flexible amorphous thin-film solar panel made in Toledo, Ohio by Xunlight Corporation. It...52089- SKU:
- 52089
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 15.00 LBS
- Datasheet:

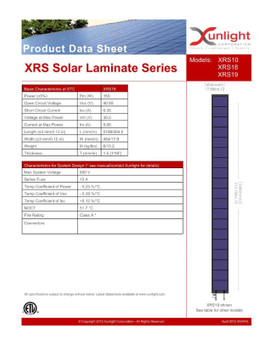

- Solar Laminate Datasheet
- Brand:
- Xunlight
- Model:
- XRS19-158
- MPN:
- XRS19-158
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- SKU:
- 52089
- Power Output:
- 158 Watts (STC)
- Open Circuit Voltage (Voc):
- 42.0 V
- Short Circuit Current (Isc):
- 6.35 A
- Voltage at Max Power (Vmp):
- 31.7 V
- Current at Max Power (Imp):
- 5.00 A
- Cell Technology:
- Amorphous Silicon (a-Si) Thin Film
- Number of Solar Cells:
- 19
- Panel Dimensions:
- 18" wide x 215.75" long (approx. 18 ft)

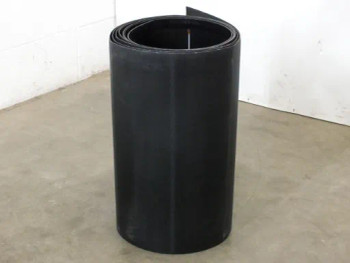

- Rolled-Up Diameter:
- 12 inches (approximate)
- Backing:
- None — no adhesive backing
- Connector Type:
- Copper tabs / MC4 (cables included)
- What's Included:
- Solar panel + MC4 cables with junction box (J-Box)
- Country/Region of Manufacture:
- United States (Toledo, Ohio)
- Application:
- RV, boat, van, camping, portable off-grid battery charging
- Seller Notes:
- Includes free MC4 cables with J-Box for DIY installation
- Compatible With:
- 12V/24V battery systems; RV, trailer, boat, van
- Form Factor:
- Rollable / Flexible Laminate
- Condition Notes:
- These Xunlight XRS19-158 158W flexible amorphous solar panels are new and unused, but were graded as cosmetic seconds at the Xunlight factory in Ohio before it closed in 2016.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$124.00Was: $225.00
