Description
Xunlight XUS19-134 134W 29V Amorphous Flexible Solar Panel RV Boat Camping
The Xunlight XUS19-134 is a 134-watt rollable thin-film solar panel built around amorphous silicon cells deposited on a stainless steel substrate. Unlike rigid crystalline panels, it flexes and rolls to approximately 12 inches in diameter, making it practical for curved surfaces and portable off-grid applications. These panels were manufactured in Ohio at the Xunlight Corporation facility between 2012 and 2015, before Xunlight ceased operations in 2016.
Specifications & What's Included
- Model: XUS19-134
- Peak Power Output: 134 Watts
- Voltage at Maximum Power (Vmp): 29V
- Current at Maximum Power (Imp): 4.6A
- Solar Cell Technology: Amorphous Silicon (a-Si) thin film
- Cell Substrate: Stainless steel flexible foil
- Top Sheet: High-grade ETFE (Ethylene Tetrafluoroethylene)
- Encapsulant: EVA (Ethylene-Vinyl Acetate)

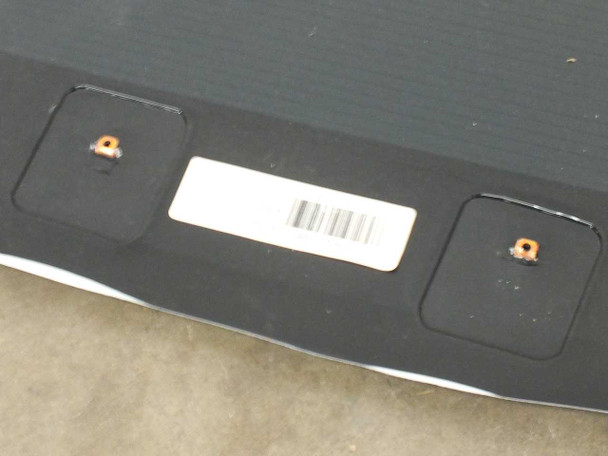

- Output Connectors: MC4 (two ports at one end)
- No peel-and-stick adhesive backing — lighter and easier to roll

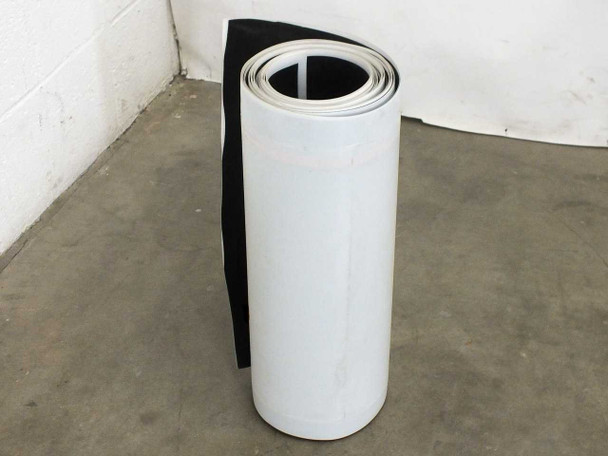

- Rollable to approximately 12 inches in diameter
- Made in Ohio, USA (2012–2015)
- Includes: MC4 cable set for DIY wiring
- Condition: New, unused — cosmetic seconds with minor lamination blemishes
Applications
Amorphous silicon thin-film panels like the Xunlight XUS19-134 are used for portable and off-grid battery charging where flexibility and light weight matter more than peak efficiency per square foot. They are well suited for charging 12V or 24V battery banks on RVs, trailers, boats, vans, and remote cabins. Amorphous silicon technology also performs better than crystalline silicon in diffuse or low-light conditions — it generates some output on overcast days where a rigid panel might produce little. Because these panels have no rigid frame or glass, they can be laid or strapped onto curved surfaces (an RV roof, a boat deck, a vehicle roof rack) and rolled up for transport or storage. The MC4 connectors are the standard for solar wiring and work directly with common charge controllers and combiner boxes. Xunlight was a pioneer in roll-to-roll amorphous silicon deposition on stainless steel, and these panels represent the last of their Ohio-made production run — this specific flexible form factor is no longer being manufactured.

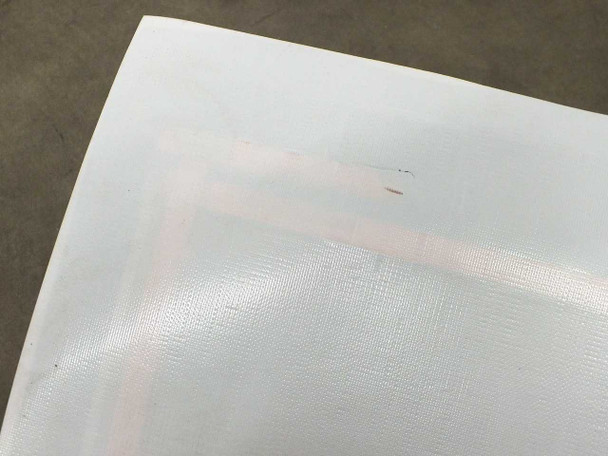

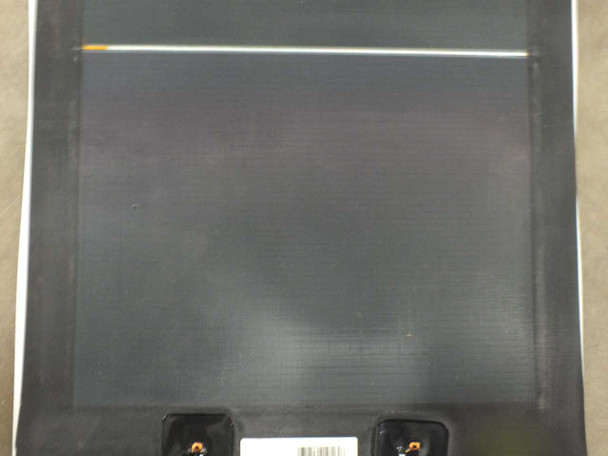

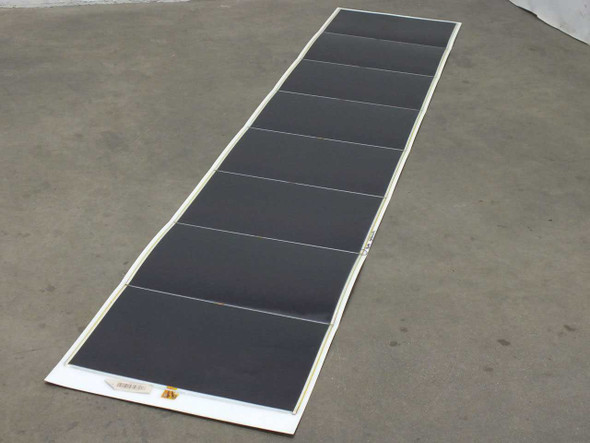

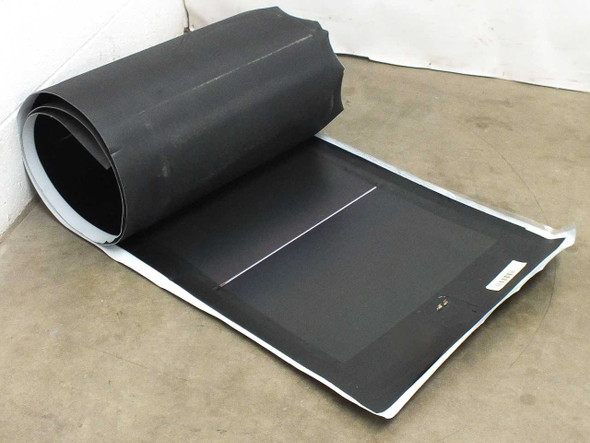

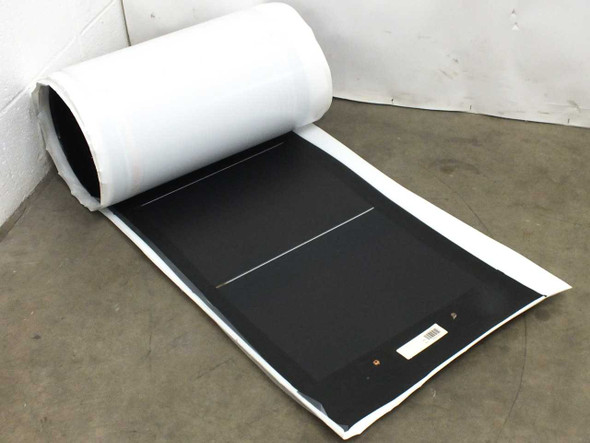

Xunlight XUS19-134 134W 29V amorphous flexible solar panel. Factory-classified as a cosmetic second from Xunlight's Ohio facility due to minor lamination blemishes from manufacturing. Never used. The panels show some edge delamination or bubbling on the ETFE top sheet at the corners, which is typical of the cosmetic seconds grade. The amorphous cell surface and solder point tabs are intact and clean. These cosmetic issues do not affect electrical function. See photos for details of the cosmetic marks. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Xunlight |
Model: |
XUS19-134 |
MPN: |
XUS19-134 |
SKU: |
52093 |
Type: |
Flexible Amorphous Thin-Film Solar Panel |
Country/Region of Manufacture: |
United States |
Power Output: |
134 Watts |
Voltage at Maximum Power (Vmp): |
29V |
Current at Maximum Power (Imp): |
4.6A |
Solar Cell Technology: |
Amorphous Silicon (a-Si) |
Top Sheet Material: |
ETFE (Ethylene Tetrafluoroethylene) |
Encapsulant: |
EVA (Ethylene-Vinyl Acetate) |
Cell Substrate: |
Stainless Steel |
Connector Type: |
MC4 |
Flexibility: |
Rollable — rolls to approx. 12 inches diameter |
Backing: |
No peel-and-stick backing |
Application: |
RV, Boat, Camping, Van, Trailer Battery Charging |
Seller Notes: |
Includes MC4 cable set. Cosmetic seconds with lamination blemishes; never used. |
Compatible With: |
12V/24V battery charging systems, RV, boat, van, trailer |
Condition Notes: |
Xunlight XUS19-134 134W 29V solar panel, factory cosmetic second, never used. Edge delamination/bubbling on ETFE corners. Cell surface and tabs intact. Non-functional cosmetic marks only. |
