Description
Xunlight XLS8-52 52W 12V Flexible Amorphous Solar Panel ETFE RV Boat Off-Grid
The Xunlight XLS8-52 is a 52-watt, 12-volt nominal flexible amorphous silicon solar panel built with an ETFE (ethylene tetrafluoroethylene) top sheet in place of conventional glass. The rollable, lightweight design makes it practical for curved or irregular mounting surfaces where a rigid panel would not work. These panels are factory seconds produced at the Xunlight facility in Ohio before the company closed in 2016 — they were never sold by the manufacturer and have not been in service.
Specifications & What's Included
- Model: Xunlight XLS8-52
- Cell technology: Amorphous silicon (thin film)
- Top sheet: ETFE (no glass)
- Maximum power output: 52W
- Maximum power voltage (Vmp): 13V
- Maximum power current (Imp): 4A
- Open circuit voltage (Voc): 16V
- Short circuit current (Isc): 4A
- Nominal system voltage: 12V
- Overall dimensions: 79 x 15.5 inches (untrimmed)
- Panel status: Factory second — untrimmed, with cosmetic issues
- Output connection: Exposed metal tabs (pre-wired leads not attached)
- Includes: Free MC4 cable set with J-Box for DIY installation
- Country of manufacture: United States (Ohio)
Applications
Flexible amorphous silicon solar panels are designed for applications where weight, thickness, and surface conformability matter more than peak efficiency per square foot. Amorphous silicon cells perform relatively well in low-light and diffuse-light conditions compared to crystalline silicon, making them a common choice for mobile and recreational power systems. Typical uses include 12-volt battery charging on RVs, trailers, boats, van conversions, and off-grid cabins. The untrimmed edges on these factory-second panels leave extra material along the border, which gives you room to punch your own grommets, add tie-down points, or route fasteners through the panel perimeter without cutting into the active cell area — a practical advantage for custom DIY installations. Xunlight was an Ohio-based thin-film solar manufacturer active in the mid-to-late 2000s through 2016; these panels represent one of the few remaining stocks of their domestic thin-film production.

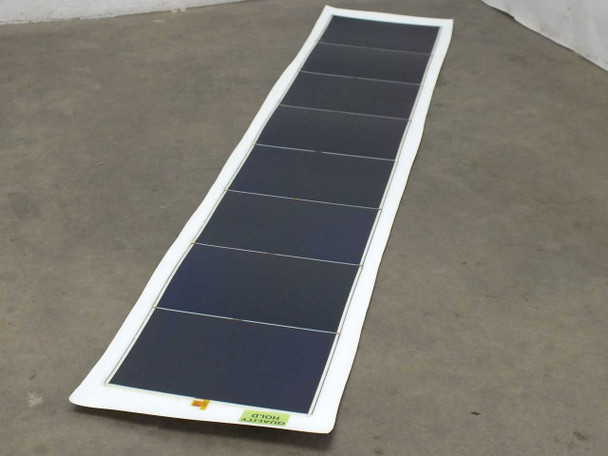

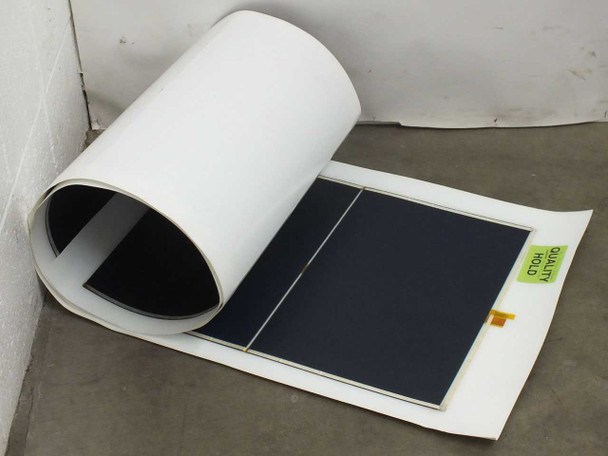

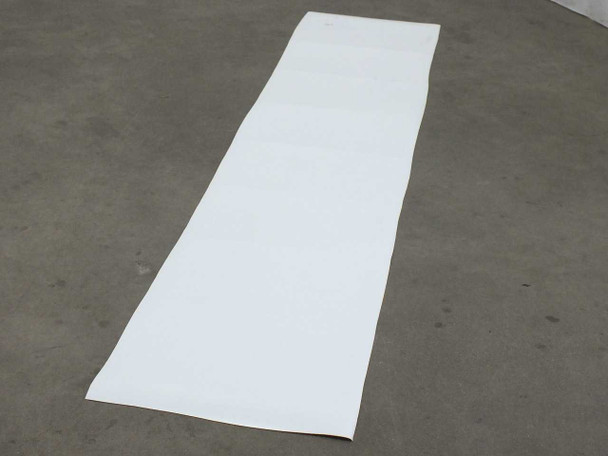

These Xunlight XLS8-52 52W flexible amorphous solar panels are factory seconds that were never sold by the manufacturer before the Xunlight facility closed in 2016. As factory seconds, they have cosmetic issues and have not been trimmed to final dimensions — the untrimmed edges are visible in the photos. The cosmetic issues are surface-level; the panels are otherwise in good physical shape. The untrimmed border actually gives you extra material to add your own grommets, tie-downs, or side penetrations for custom mounting. A "Quality Hold" label is visible in the photos, consistent with the factory-second status. Each panel includes a free MC4 cable set with J-Box for DIY installation — the exposed metal tabs are ready to connect. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Xunlight |
Model: |
XLS8-52 |
MPN: |
XLS8-52 |
SKU: |
52105 |
Type: |
Flexible Amorphous Solar Panel |
Power Output: |
52 Watts |
Nominal Voltage: |
12V |
Maximum Power Voltage (Vmp): |
13V |
Maximum Power Current (Imp): |
4A |
Open Circuit Voltage (Voc): |
16V |
Short Circuit Current (Isc): |
4A |
Cell Technology: |
Amorphous Silicon (Thin Film) |
Top Sheet Material: |
ETFE (No Glass) |
Panel Dimensions: |
79 x 15.5 inches (untrimmed) |
Flexibility: |
Flexible / Rollable |
Connection Type: |
MC4 (cable set included) |
Output Connector: |
Exposed metal tabs + MC4 J-Box cable set |
Application: |
Battery Charging, RV, Boat, Van, Off-Grid |
Country/Region of Manufacture: |
United States |
Condition: |
New – Factory Second (cosmetic issues, untrimmed) |
Seller Notes: |
Factory second, untrimmed panels; includes free MC4 cable set with J-Box |
Panel Grade: |
Factory Second |
Trim Status: |
Untrimmed – allows DIY grommet/fastener placement |
Condition Notes: |
Xunlight XLS8-52 52W flexible amorphous solar panel — factory second, never sold by manufacturer. Untrimmed with cosmetic issues; physically intact. Includes free MC4 cable set with J-Box. Made in Ohio USA. Contact us with questions. |
