Uni-Solar PVL-128 128W Flexible Amorphous Solar Panels 24V Metal Roofing Qty 30

Uni-Solar PVL-128 128W Flexible Amorphous Solar Panels 24V Metal Roofing Qty 30

This is a carton of 30 Uni-Solar PVL-128 128-watt flexible amorphous silicon solar panels. The PVL-128 is a peel-and-stick, thin-film photovoltaic panel designed to bond directly to metal and membrane roofing surfaces without roof penetrations or mounting hardware. At 18 feet long and just over an inch wide in the flat profile, the panels ship coiled on a roll inside a single carton, ready to unroll and adhere.

Specifications & What's Included

• Model: Uni-Solar PVL-128
• Quantity: 30 panels (one carton)
• Maximum Power (Pmax): 128 W per panel
• Nominal Operating Voltage: 24 V
• Maximum Power Voltage (Vmpp): 33 V
• Maximum Power Current (Impp): 3.88 A
• Open Circuit Voltage (Voc): 47.6 V
• Short Circuit Current (Isc): 4.8 A
• Panel dimensions: 18 ft long x 1.29 ft wide (216 in x 15.5 in) x 0.2 in thick
• Cell technology: Amorphous silicon (a-Si) thin film
• Integrated bypass diodes — limits power loss to less than 4.5% when a cell is shaded or soiled
• Mounting: Adhesive peel-and-stick — no roof penetrations or additional hardware required
• Compatible roofing surfaces: metal (standing seam, corrugated), TPO, EPDM, and other membrane systems

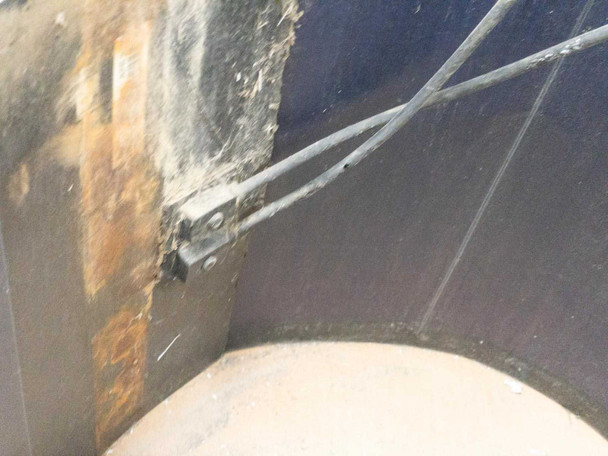

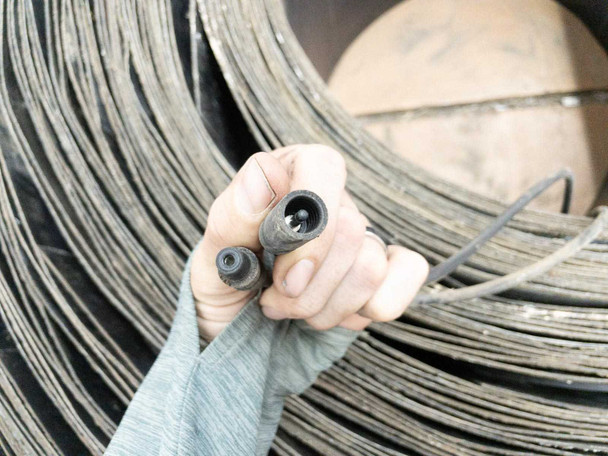

• Connector type: Uni-Solar proprietary connectors present at panel ends (visible in photos)

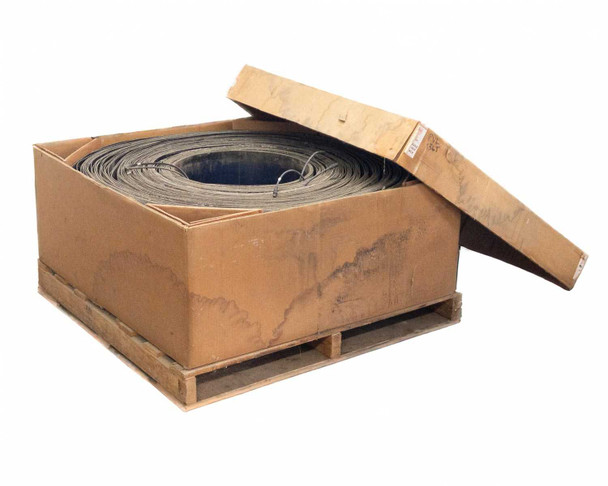

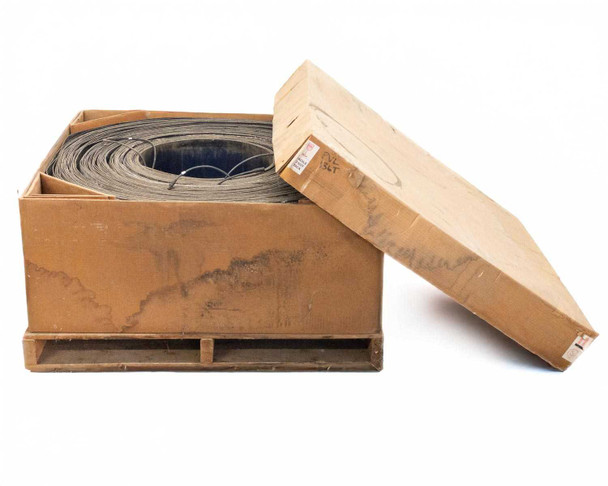

• Panels ship coiled on roll inside a single cardboard carton on pallet

Applications

The Uni-Solar PVL series is a line of building-integrated photovoltaic (BIPV) panels developed by United Solar Ovonic, a Michigan-based thin-film solar manufacturer. The PVL-128 was designed specifically for low-slope commercial and industrial roofing, where traditional glass-framed crystalline silicon panels cannot be used due to added structural load or the risk of roof penetrations voiding waterproofing warranties. The adhesive backing bonds the panel directly to standing-seam metal roofs or single-ply membrane systems, making it a common choice for retrofit solar on warehouses, distribution centers, and large commercial buildings. Amorphous silicon thin-film technology performs better than crystalline silicon in diffuse and low-angle light conditions, which gives these panels a production advantage on overcast days and in early morning or late afternoon hours. The PVL-128 is still used in commercial BIPV installations, off-grid applications, and custom solar projects where flexibility and light weight are priorities. Installers and integrators working with legacy Uni-Solar systems also source these panels for replacements and expansions.
