Solar Manufacturing Equipment
Solar Manufacturing Equipment refers to machinery and tools used in the production of solar panels, cells, and related components. This equipment is essential for the efficient and precise manufacturing of solar products, ensuring high quality and performance. Key tools in this category include solar cell testers, tabbers and stringers, laminators, and edge trimmers. These machines are designed to streamline the production process and increase output capacity, making them indispensable for solar manufacturers. Investing in reliable and advanced Solar Manufacturing Equipment is crucial for companies looking to stay competitive in the rapidly growing solar energy industry.
-
Preco Coil Slitter Stainless Steel Foil Cutting Machine 480V 3Ph Tidland
Preco
$29,000.00Was: $58,000.00Preco Coil Slitter Stainless Steel Foil Cutting Machine 480V 3Ph Tidland Floor-standing industrial coil slitter designed for precision cutting of stainless steel foil and thin metal sheets. Features six knife stations with pneumatic control and Tidland...51991- SKU:
- 51991
- Availability:
- This is a large industrial machine — please contact us for freight shipping arrangements before purchasing.
- Weight:
- 1,111.00 LBS
- Brand:
- Preco
- Model:
- SLITTER
- MPN:
- SLITTER
- SKU:
- 51991
- Condition:
- Used – Inspected, Missing Components (see notes)
- Seller Notes:
- Touch screen (AB 2711PC-T6M20D) and one rack module missing
- Country of Manufacture:
- United States
- Form Factor:
- Floor Standing / Industrial Machine
- Power Requirements:
- 480V, 3-Phase, 60Hz, 12A Full Load
- Voltage Rating:
- 480V
- Phase:
- 3-Phase
- Frequency:
- 60Hz
- Full Load Amperage:
- 12 Amps
- Application:
- Stainless Steel Foil Slitting, Solar Cell Manufacturing
- Slitter Type:
- Coil Slitter / Converting Machine
- Number of Knife Stations:
- 6
- Knife Type:
- Tidland Bottom Knife Ring Slitter, Performance Series Class II
- Knife Control:
- Pneumatic
- Roller Diameter (Main):
- 26 inches (orange and internal black rollers)
- Roller Diameter (Front Small):
- 14.5 inches (white portion, front large roller)
- Wind / Rewind:
- Included
- Control System:
- Allen-Bradley PLC (SLC series)
- Touch Screen Model:
- AB 2711PC-T6M20D (missing — requires reconnection)
- Drive Type:
- Allen-Bradley PowerFlex VFDs (multiple axes)
- Material Handled:
- Stainless Steel Foil / Thin Metal Sheet
- Original Application:
- Flexible solar panel / solar cell foil cutting
- Original Price (New, 2009):
- $196,000
- Compatible With:
- Custom solar foil and thin metal converting applications
- Condition Notes:
- This Preco stainless steel foil coil slitter was originally built for solar cell manufacturing and most mechanical and electrical components remain intact.
$29,000.00Was: $58,000.00 -
Temptronic TPO4010A-3120-2 Thermostream Temp Forcing System -85°C to +225°C
Temptronic
$1,500.00Was: $3,000.00Temptronic TPO4010A-3120-2 Thermostream Temp Forcing System -85°C to +225°C Air-based temperature forcing system for thermal testing of electronic components and devices. Delivers controlled airstreams across a wide temperature range with 0.1°C...51950- SKU:
- 51950
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 423.00 LBS
- Brand:
- Temptronic
- Model:
- TPO4010A
- MPN:
- TPO4010A-3120-2
- SKU:
- 51950
- Type:
- Temperature Forcing Airstream System (Thermostream)
- Condition:
- As-Is / For Parts or Not Working
- Temperature Range (Min):
- -85°C (standard head, no arm); -80°C (with arm)
- Temperature Range (Max):
- +225°C
- Temperature Transition:
- 30 seconds from +125°C to -55°C
- Temperature Resolution:
- 0.1°C set and display resolution
- Temperature Control Mode:
- Air or direct DUT control
- Air Flow:
- 12 SCFM maximum, manual control
- DUT Sensors:
- Type T or Type K thermocouple inputs
- Handler Interface:
- Start-Test, End-of-Test, Stop-on-First-Fail signals
- User Interface:
- CRT monitor for data entry and display
- Voltage:
- 220V
- Frequency / Phase:
- 50/60 Hz, Single Phase
- Amperage:
- 20A
- Power Requirements:
- 220V AC, 50/60Hz, 20A, Single Phase
- Operation Modes:
- Local or remote operation (internal microcomputer)
- Form Factor:
- Freestanding Cabinet on Casters
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Unit is non-working; sold AS-IS for parts or repair. Flexible airstream hose and head arm included as visible.
- Application:
- Electronic device thermal characterization and temperature cycling
- Compatible With:
- IC handlers, semiconductor testers, ATE systems
- Condition Notes:
- Temptronic TPO4010A-3120-2 Thermostream is non-working, sold AS-IS for parts or repair only. Not tested, not guaranteed functional. Airstream hose and head arm present. Please contact us with questions.
$1,500.00Was: $3,000.00 -
Hydrofarm PS-24-20 Solar Soak System Nanosolar Nanocell 110-240VAC 24VDC 20A
Hydrofarm
$2,000.00Was: $4,000.00Hydrofarm PS-24-20 Solar Soak System Nanosolar Nanocell 110-240VAC 24VDC 20A Solar soak and burn-in test system for Nanosolar Nanocell solar cells. Complete integrated setup with power supply, thermal electric modules, lighting ballasts, compressor,...46871- SKU:
- 46871
- Availability:
- This item requires 2-pallet freight shipping. Please contact us for a freight quote before purchasing.
- Weight:
- 1,111.00 LBS
- Brand:
- Hydrofarm
- Model:
- PS-24-20
- MPN:
- PS-24-20
- Type:
- Solar Soak / Burn-In Test System
- SKU:
- 46871
- Input Voltage:
- 110-240VAC
- Input Frequency:
- 50/60Hz
- Output Voltage:
- 24VDC
- Output Current:
- 20A
- Compatible With:
- Nanosolar Nanocell solar cells
- Includes - Power Supply:
- TE Technology PS-24-20 (SN 1006, 2009-12-1)
- Includes - TE Module 1:
- TE Technology CP-200TT (SN 0027, 2008-12-15)
- Includes - TE Module 2:
- TE Technology CP-200HTTT (SN 0125, 2011-5-31)
- Includes - Air Compressor:
- Welch 2581B-24, 115V 60Hz 4.0A (SN 011200000721)
- Air Compressor Motor No.:
- Welch 608804AC025
- Includes - Ballasts:
- 2x Phantom PHE1THD Dimmable Digital Ballast 1000W
- Ballast Compatibility:
- 1000W HPS (S-52) or MH (M-47) lamps
- Luminaire Series:
- Hydrofarm RD Luminaire Series (1000W max)
- Includes - Monitor:
- LG LCD monitor (model not fully legible)
- Includes - Keyboard/Mouse:
- Dell keyboard and mouse
- Includes - Enclosure:
- Blue lockable cabinet on casters
- Includes - Frame/Rack:
- Aluminum extrusion open rack with lower shelf
- Country/Region of Manufacture:
- United States
- Shipping Method:
- 2-pallet freight required
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Complete system: power supply, TE modules, compressor, ballasts, monitor, keyboard, rack
- Condition Notes:
- Hydrofarm PS-24-20 Solar Soak System inspected, good used condition. Includes TE Technology modules (CP-200HTTT, CP-200TT), Welch compressor, 2x Phantom PHE1THD ballasts, LG monitor, Dell keyboard, cabinet, and rack. Freight shipping required.
$2,000.00Was: $4,000.00 -
Custom Blind Rivet Station SMC Norgren Intensifier Pump 30:1 Pneumatic Assembly
Custom
$750.00Was: $1,500.00Custom Blind Rivet Station SMC Norgren Intensifier Pump 30:1 Pneumatic AssemblyThis is a custom-built, floor-standing pneumatic blind rivet station housed in a dark green steel cabinet on an aluminum extrusion base frame. The station integrates a...48198- SKU:
- 48198
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 254.00 LBS
- Brand:
- Unbranded
- Model:
- Custom Blind Rivet Station
- MPN:
- TASQ-30-00-060
- Type:
- Pneumatic Blind Rivet Assembly Station
- SKU:
- 48198
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Includes all installed pneumatic components as described and shown in photos
- Drive Type:
- Air / Pneumatic
- Intensifier Pump Ratio:
- 30:1
- Intensifier Pump MPN:
- TASQ-30-00-060
- Filter/Regulator:
- SMC AW30-N03-8Z
- Inline Valve:
- Norgren V61R5D7AXP0900
- Pneumatic Valve:
- SMC NVM12 (4 units)
- High-Pressure Hose:
- Spir Star DPS221-384
- Form Factor:
- Floor Standing / Cabinet Enclosed
- Application:
- Blind Rivet Fastening / Pneumatic Assembly
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Custom blind rivet station inspected and in good condition. All pneumatic components present: SMC AW30-N03-8Z regulator, Norgren inline valve, TASQ-30-00-060 30:1 intensifier pump, SMC NVM12 valves, Spir Star hoses. Locking drawer with key included.
$750.00Was: $1,500.00 -

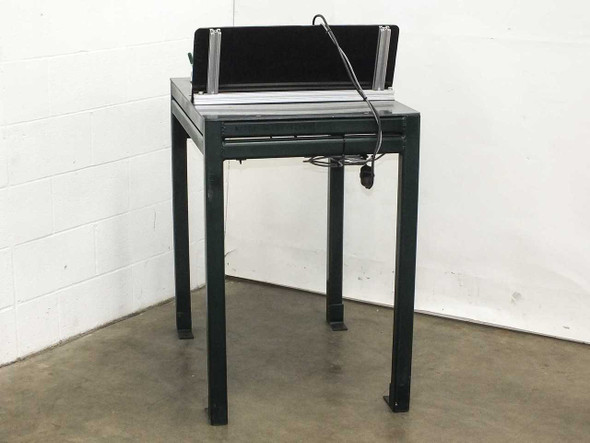

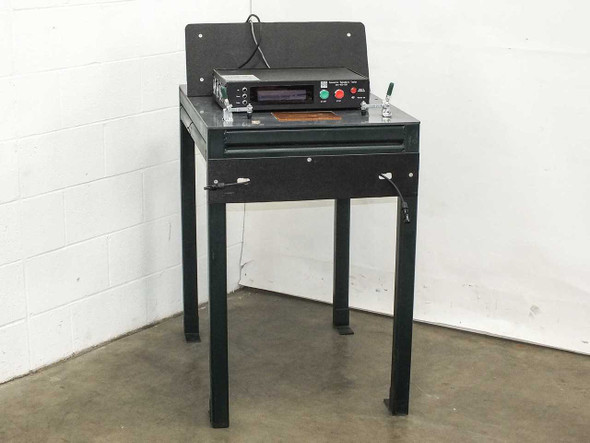

ECD Ovonics QA4-850-000 MC4 Solar Connector Reliability Tester 250V Uni-Solar
Uni-Solar
$600.00Was: $1,200.00ECD Ovonics QA4-850-000 MC4 Solar Connector Reliability Tester 250V Uni-Solar Benchtop vibration and continuity tester designed for MC4 solar connector qualification in photovoltaic manufacturing. Unit combines a 250V AC main controller with an...48199- SKU:
- 48199
- Availability:
- This item requires freight shipping — please contact us for a shipping quote before purchasing.
- Weight:
- 260.00 LBS
- Brand:
- ECD Ovonics
- Model:
- QA4-850-000
- MPN:
- QA4-850-000
- Type:
- MC4 Solar Connector Reliability Tester
- SKU:
- 48199
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes Netter Vibration NEA-5050 vibrator, orange MC4 test pad, Carr-Lane hold-down clamp, and MC4 cable harness. Requires freight shipping.
- Connector Type:
- MC4 (Multi-Contact 4mm Solar Connector)
- Interface / PC Comm:
- 9-Pin RS-232 Serial (DB-9), rear panel
- Power Requirements:
- 250V AC, 10A fuse (Mains)
- Vibration Unit:
- Netter Vibration NEA-5050
- Vibrator Voltage:
- 110-115V AC
- Vibrator Current:
- 0.46A
- Vibrator Power:
- 0.045 kW
- Vibrator Phase:
- Single Phase
- Vibrator Frequency:
- 50/60 Hz
- Vibrator Speed:
- 3000/3600 min-1
- Vibrator Force:
- 440/640 N
- Vibrator Duty Cycle:
- 100%
- Vibrator Protection Rating:
- IP65
- Vibrator Serial Number:
- 100049630
- Test Pad Color:
- Orange
- Test Pad Dimensions:
- 7" x 5.5"
- Tabletop Dimensions:
- 36" x 24"
- Overall Dimensions:
- 36.25" x 24" x 45" tall
- Front Panel Controls:
- START (green), STOP (red), Up/Down/Enter navigation buttons, LCD display
- Front Panel Indicators:
- TEST IN PROGRESS LED, Vibrator ON LED
- Clamp:
- Carr-Lane vertical hold-down toggle clamp
- Application:
- MC4 connector vibration/continuity reliability testing for solar panel production
- Compatible With:
- Uni-Solar solar panel production lines, MC4 photovoltaic connectors
- Country/Region of Manufacture:
- USA
- Form Factor:
- Benchtop / Free-standing workstation on steel stand
- Shipping Method:
- Freight shipping required
- Condition Notes:
- ECD Ovonics QA4-850-000 MC4 Solar Connector Tester sold as-is. Not powered or tested — no PC/software available for the rear 9-pin serial port. Appears physically complete with vibrator, test pad, and clamp. Freight shipping required.
$600.00Was: $1,200.00 -
Solar Panel Load Tester FIBOX Enclosure Ohmite 3-Ohm 225W Resistor Simpson 10A
Solar Panel
$110.00Was: $225.00Solar Panel Load Tester FIBOX Enclosure Ohmite 3-Ohm 225W Resistor Simpson 10A Shunt A portable load testing enclosure designed for solar panel and photovoltaic module evaluation. The unit combines a high-power resistor with precision current...49107- SKU:
- 49107
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 10.00 LBS
- Brand:
- Ohmite / Simpson Electric / FIBOX
- Model:
- D225K3R0E / 06704 / PC 5628 13 T
- MPN:
- D225K3R0E
- Secondary Model:
- 918-6704
- Type:
- Solar Panel Load Testing Enclosure
- SKU:
- 49107
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Includes Ohmite 3-ohm 225W resistor, Simpson 10A 50mV shunt, wiring, and NEMA twist-lock plug
- Resistor Brand:
- Ohmite
- Resistor Part Number:
- D225K3R0E
- Resistor Catalog Number:
- 0604
- Resistance:
- 3 Ohm
- Resistor Power Rating:
- 225 Watts
- Shunt Brand:
- Simpson Electric
- Shunt Model:
- 06704 / 918-6704
- Shunt Current Rating:
- 10 Amps
- Shunt Voltage Drop:
- 50 mV
- Enclosure Brand:
- FIBOX
- Enclosure Model:
- PC 5628 13 T
- Enclosure Material:
- Polycarbonate (PC Solid)
- Enclosure Dimensions:
- 22 x 10.9 x 5.1 inches
- Connector Type:
- NEMA Twist-Lock Plug
- Application:
- Solar Panel / PV Module Load Testing
- Compatible With:
- Photovoltaic (PV) solar panels and modules
- Country/Region of Manufacture:
- United States
- Form Factor:
- Portable Enclosure / Benchtop
- Condition Notes:
- This Solar Panel Load Tester (Ohmite 3-ohm 225W resistor, Simpson 10A 50mV shunt, FIBOX enclosure) has been inspected and is in good used condition. Enclosure, wiring, and components appear complete and undamaged.
$110.00Was: $225.00 -

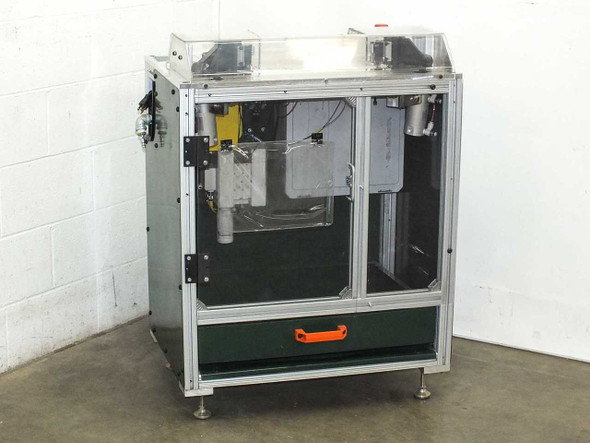

Uni-Solar MX1-711-000-5 Corner Trim Machine 14.5" Plastic Sheet Solar Panel
Uni-Solar
$600.00Was: $1,200.00Uni-Solar MX1-711-000-5 Corner Trim Machine 14.5" Plastic Sheet Solar Panel The Uni-Solar MX1-711-000-5 is a purpose-built pneumatic corner-cutting machine designed to trim the corners of 14.5"-wide plastic sheets used in the manufacturing of thin-film...47241- SKU:
- 47241
- Availability:
- Usually ships within 3-5 business days due to size — please contact us to arrange freight.
- Weight:
- 230.00 LBS
- Brand:
- Uni-Solar
- Model:
- MX1-711-000-5
- MPN:
- MX1-711-000-5
- Secondary Model:
- MX1-711-000
- SKU:
- 47241
- Type:
- Corner Trim Machine / Corner Cutting Machine
- Manufacturer:
- MISCO Industries (miscoind.com)
- Application:
- Solar panel component plastic sheet corner trimming
- Sheet Width Capacity:
- 14.5 inches
- Blade Type:
- 1" wide x 0.25" thick slanted blades (2x)
- Linear Motion Guides:
- THK HSR20 (x2)
- Power Requirements:
- 110 VAC, 60Hz
- Power Supply:
- Rhino PSP24-060S, 60W, 110 VAC to 24VDC
- Optical Sensors:
- Keyence FS-N11CP fiber optic sensors (x2)
- Door Sensor:
- Telemecanique XCS-PA593 with Danner E5-FA-9AA
- Time Delay Relays:
- Fuji Electric MS4SA (x3)
- Pneumatic Shut-Off Valve:
- SMC VHS40-04
- Pneumatic Filter/Regulator:
- SMC AW40-04E
- Pneumatic Solenoid Valves:
- SMC VQC4101-5 (x2)
- Pneumatic Cylinders:
- SMC CG1UN50-25, 145 PSI max (x2)
- Air Supply Required:
- Yes — external compressed air required
- Controls:
- Power On pushbutton, Emergency Stop (red mushroom)
- Enclosure:
- Aluminum extrusion frame, polycarbonate safety guards
- Lower Drawer:
- Green painted steel scrap collection drawer
- Country/Region of Manufacture:
- USA
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Internal 24VDC power supply lights up when plugged in. Requires external air supply to operate cutting heads.
- Condition Notes:
- Uni-Solar MX1-711-000-5 Corner Trim Machine pulled from solar panel production. Internal 24VDC power supply lights up when plugged in. Cutting heads require external compressed air to operate. Good used condition with normal production wear.
$600.00Was: $1,200.00 -

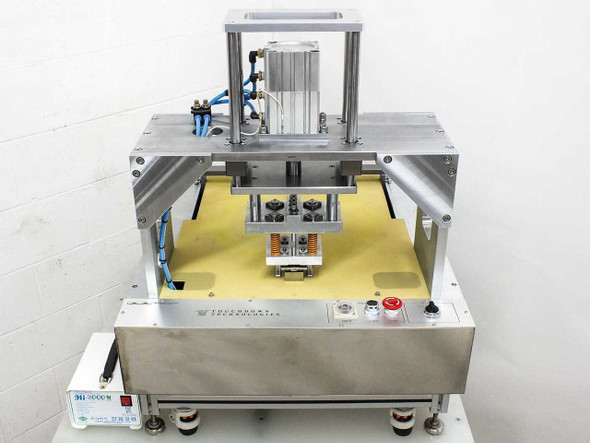

Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool Solar
Bridge Corp.
$900.00Was: $1,800.00Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool SolarBenchtop pneumatic rivet press designed for solar cell and photovoltaic assembly. The zero insertion force mechanism reduces component damage during rivet insertion...46788- SKU:
- 46788
- Availability:
- Usually ships within 3-5 business days due to size and weight.
- Weight:
- 445.00 LBS
- Brand:
- Touchdown Technologies
- Model:
- ZIF Air Actuated Rivet Tool
- MPN:
- 0XA9
- Type:
- Air Actuated Zero Insertion Force Rivet Press
- SKU:
- 46788
- Seller Notes:
- Includes Hanil Hi-2000 KCC transformer and KCC ADF-80A-S20 TD air cylinder
- Air Cylinder Model:
- KCC ADF-80A-S20 TD
- Air Cylinder Part Number:
- 0XA93/8
- Max Air Pressure:
- 1.0 MPa / 10.2 kg/cm² / 145 PSI
- Transformer Model:
- Hanil Industrial Hi-2000 KCC
- Actuation Type:
- Pneumatic (Air Actuated)
- Application:
- Solar Cell / Photovoltaic Assembly, Rivet Insertion
- Control Panel:
- Timer, Press Start/Stop, Pusher On/Off
- Form Factor:
- Benchtop with Steel Stand
- Dimensions:
- 47W x 28D x 60H inches
- Country/Region of Manufacture:
- South Korea
- Condition:
- Used – Inspected and in Good Condition
- Condition Notes:
- Touchdown Technologies ZIF Air Actuated Rivet Tool. Inspected and in good condition with normal production wear. Hanil Hi-2000 transformer and KCC ADF-80A-S20 TD air cylinder included. Please contact us with any questions.
$900.00Was: $1,800.00
