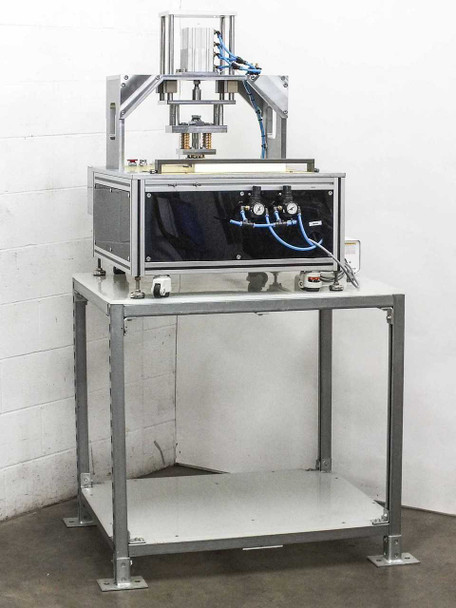

  • Touchdown Technologies ZIF air actuated zero insertion force rivet tool full front view on steel stand with Hanil Hi-2000 transformer visible
  • Touchdown Technologies ZIF rivet tool front view without roller cover showing press head assembly, spring mechanism, and control panel
  • Touchdown Technologies nameplate and Bridge Corp logo on aluminum extrusion frame of ZIF rivet tool
  • ZIF rivet tool control panel showing timer dial, press start button, red stop button, and pusher on/off rotary switch
  • Close-up of ZIF rivet tool press head tooling showing machined aluminum die blocks and orange return springs with rivets loaded
  • Underside view of ZIF rivet tool press platen showing threaded adjustment stud and guide column assembly, tag M2083 visible
  • ZIF rivet tool press head loaded with green-capped vials showing insertion die blocks and spring-loaded lower fixture
  • Side view of ZIF rivet tool spring return assembly showing four orange compression springs and machined aluminum tooling block

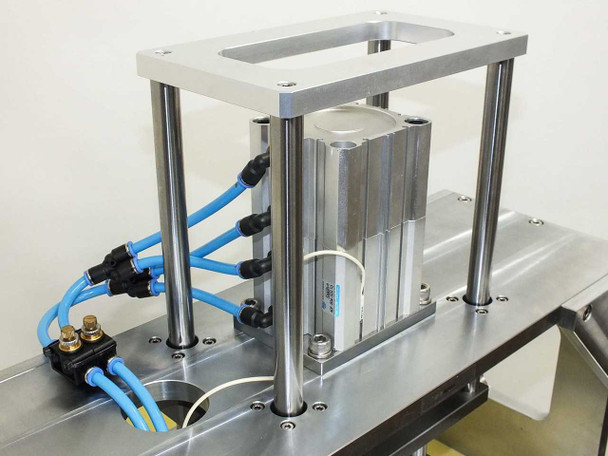

  • Pneumatic actuator assembly of ZIF rivet tool showing KCC air cylinder on aluminum gantry with blue pneumatic fittings and tubing
  • Close-up of KCC air cylinder label reading ADF-80A-S20 TD, part number 0XA93/8, max pressure 1.0 MPa / 145 PSI
  • Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool
  • Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool
  • Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool
  • Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool
  • Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool
  • Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool
  • Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool
  • Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool
  • Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool
  • Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool
  • Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool
$900.00
Was: $1,800.00
Current Stock: 1

Sold Out

Description

Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool Solar

Benchtop pneumatic rivet press designed for solar cell and photovoltaic assembly. The zero insertion force mechanism reduces component damage during rivet insertion.

Specifications & What's Included

  • Model: ZIF Air Actuated Rivet Tool (MPN: 0XA9)
  • Hanil Industrial Hi-2000 KCC transformer included
  • KCC ADF-80A-S20 TD air cylinder included
  • Maximum air pressure: 1.0 MPa / 145 PSI
  • Controls: Timer, Press Start/Stop, Pusher On/Off
  • Dimensions: 47"W x 28"D x 60"H on steel stand
  • Manufactured in South Korea

Applications

This tool is used in solar photovoltaic module assembly and electronics manufacturing requiring precision rivet insertion. The air-actuated mechanism provides consistent force application, reducing variability in production environments. ZIF technology minimizes stress on delicate components during the insertion process, making it suitable for applications where component integrity is critical.

Condition: Used
This Touchdown Technologies ZIF Air Actuated Zero Insertion Force Rivet Tool has been inspected and is in good condition. The machine and stand show normal wear consistent with prior production use. The Hanil Industrial Hi-2000 KCC transformer and KCC ADF-80A-S20 TD air cylinder are present. The aluminum frame, tooling block, and orange return springs appear intact with no obvious damage. The control panel — timer, press start/stop, and pusher on/off switch — is intact and legible. Please view our photo set and contact us if you have any questions.
