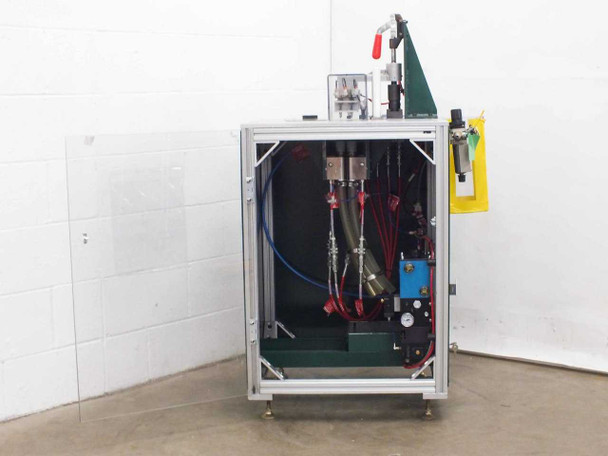

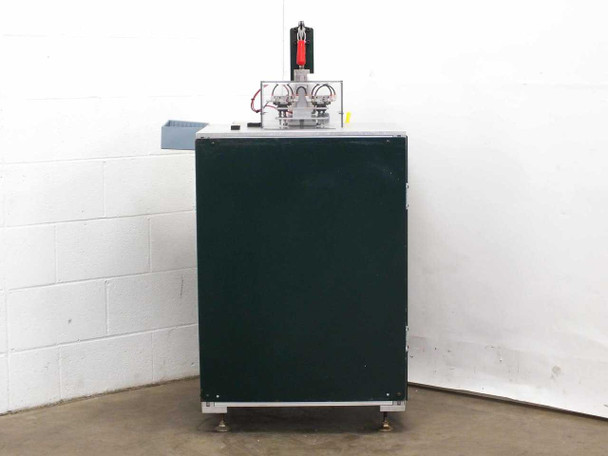

This is a custom-built, floor-standing pneumatic blind rivet station housed in a dark green steel cabinet on an aluminum extrusion base frame. The station integrates a complete set of pneumatic and high-pressure components to drive blind riveting operations in an industrial assembly environment. The upper rivet head assembly mounts four SMC NVM12 pneumatic solenoid valves inside a clear acrylic protective enclosure, with a red emergency stop mushroom button at the top. Internal cabinet plumbing connects the upper head to an air-driven intensifier pump and a network of high-pressure Spir Star hoses. A locking storage drawer is built into the base of the cabinet.

Specifications & What's Included

• Station type: Custom-built pneumatic blind rivet assembly station
• Enclosure: Floor-standing dark green steel cabinet with aluminum extrusion base frame

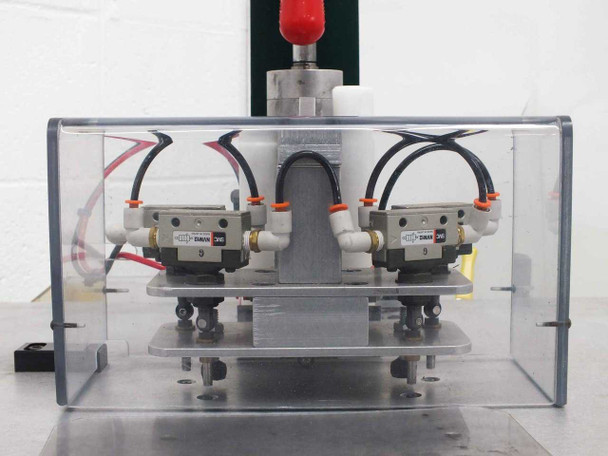

• Upper rivet head: 4x SMC NVM12 pneumatic solenoid valves mounted on aluminum plate in clear acrylic enclosure

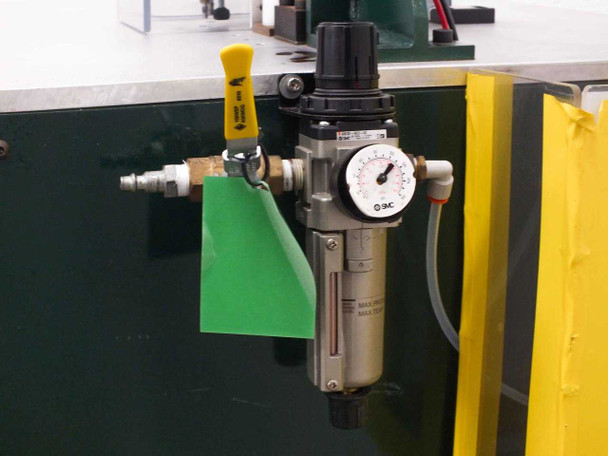

• Filter/Regulator: SMC AW30-N03-8Z — mounted on exterior cabinet panel with pressure gauge and quick-connect air inlet

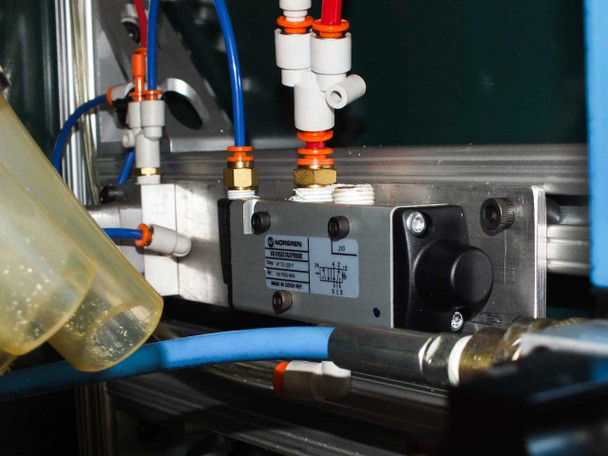

• Inline Valve: Norgren V61R5D7AXP0900 — directional control valve mounted on internal aluminum extrusion rail

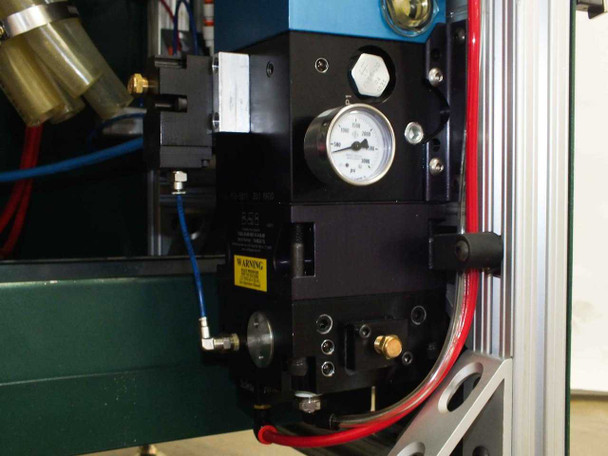

• Air-Driven Intensifier Pump: Interface Devices TASQ-30-00-060, 30:1 ratio — black body with integral pressure gauge and warning label

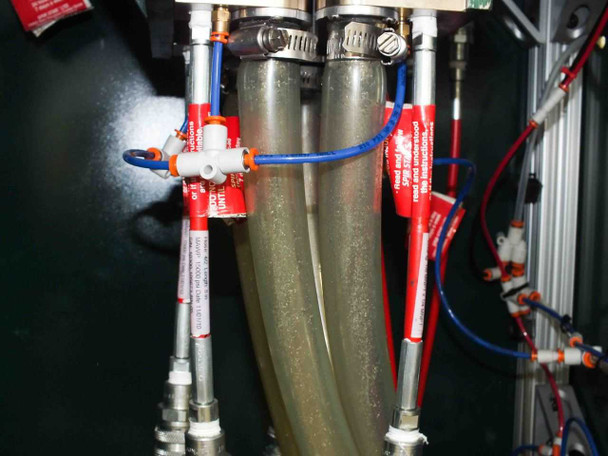

• High-pressure hoses: Spir Star DPS221-384 — stainless-braided, with original Spir Star safety/warning tags

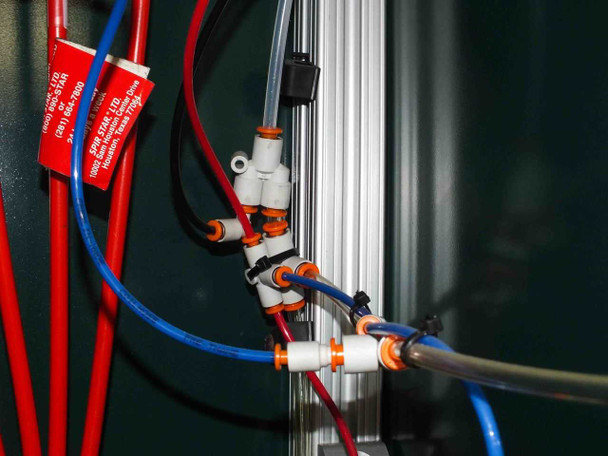

• Internal plumbing: Blue and red tubing routed through white push-in manifold fittings; orange-collar push-in connectors throughout
• Emergency stop: Red mushroom-head button on upper assembly

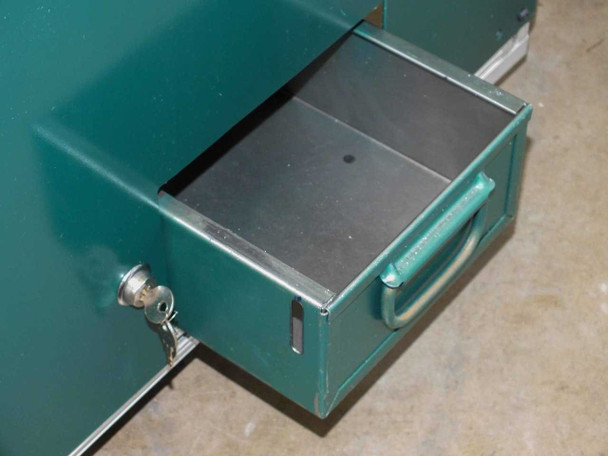

• Base storage: Locking steel drawer with key present
• Safety guard: Yellow padded frame guard mounted at top right of cabinet exterior

Applications

Pneumatic blind rivet stations like this one are used in industrial manufacturing and assembly lines to install blind (pop) rivets in sheet metal, structural panels, enclosures, and fabricated assemblies — anywhere a conventional rivet gun cannot access both sides of the joint. The air-driven intensifier pump steps up line pressure at a 30:1 ratio, providing the high force needed to consistently set rivets in thicker or harder materials. SMC NVM12 solenoid valves control actuation sequencing, allowing the rivet head to cycle automatically. These stations are common in aerospace sub-assembly, automotive body fabrication, electronics enclosure manufacturing, and general sheet metal fabrication shops. The self-contained cabinet format keeps all pneumatic plumbing protected and organized while allowing the station to be positioned at a fixed workstation. Spir Star high-pressure hoses are rated for demanding hydraulic and pneumatic duty and are a standard choice in high-cycle industrial fastening equipment.
