Custom Plastic Sheet Corner Trimmer 14.5" Wide THK HSR20 SMC Pneumatic 110VAC

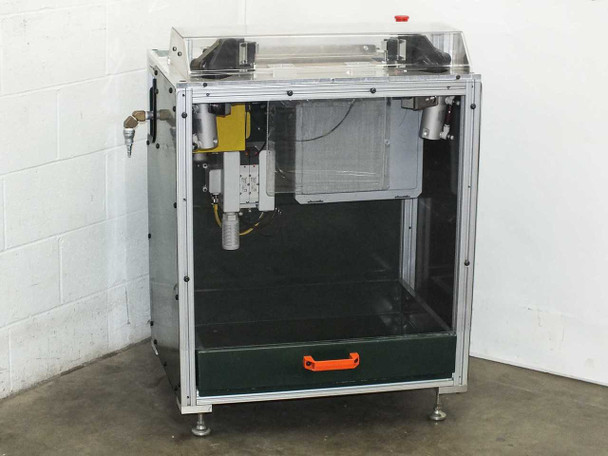

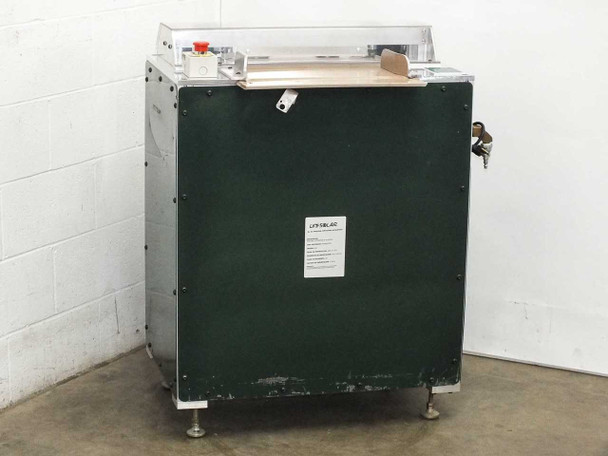

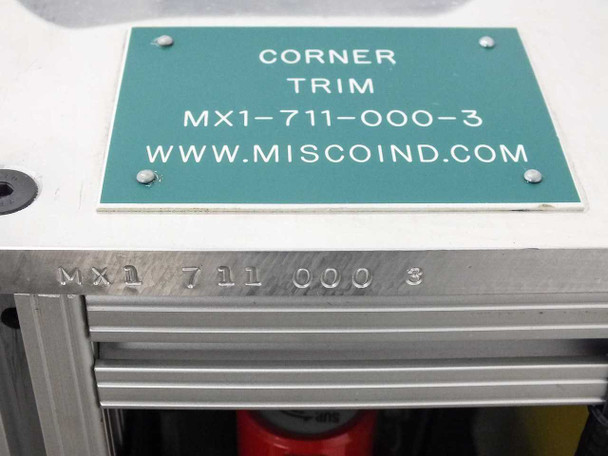

This is a custom-built pneumatic corner trimmer designed to cut the corners of plastic sheets up to 14.5 inches wide. The machine uses two THK HSR20 linear motion guide carriages to drive a pair of 1-inch-wide by 0.25-inch-thick slanted blades downward into the sheet material, producing clean, consistent corner cuts. The frame is constructed from aluminum extrusion profile with adjustable leveling feet, a clear acrylic safety enclosure over the cutting zone, and a removable green steel catch/scrap drawer below.
Specifications & What's Included
- Sheet width capacity: 14.5 inches
- Power input: 110 VAC
- Power supply: Rhine PSP24-060S — 60W, 110VAC to 24VDC
- Linear motion: THK HSR20 linear motion guide carriages (x2)

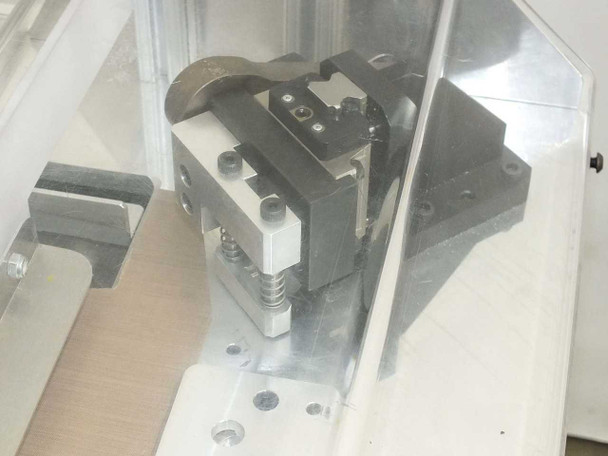

- Blade: 1" wide × 0.25" thick slanted blade per side

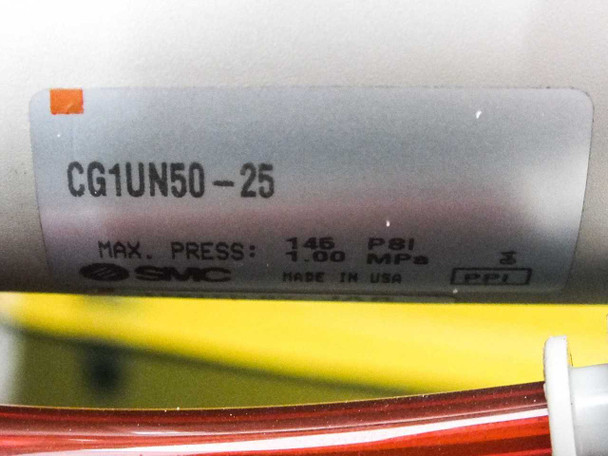

- Pneumatic cylinders: SMC CG1UN50-25 (x2) — Max Pressure: 145 PSI / 1.00 MPa, Made in USA
- Solenoid valves: SMC VQC4101-5 (x2), manifold-mounted with exhaust silencer
- Filter/regulator unit: SMC AW40-04E
- Safety lockout valve: SMC VHS40-04
- Optical fiber sensors: Keyence FS-N11CP (x2) — for material alignment detection
- Door/guard sensor: Danner E5-FA-9AA with Telemacanique XSC-PA593
- Time delay relays: Fuji Electric MS4SA-CE-PA593 (x3)

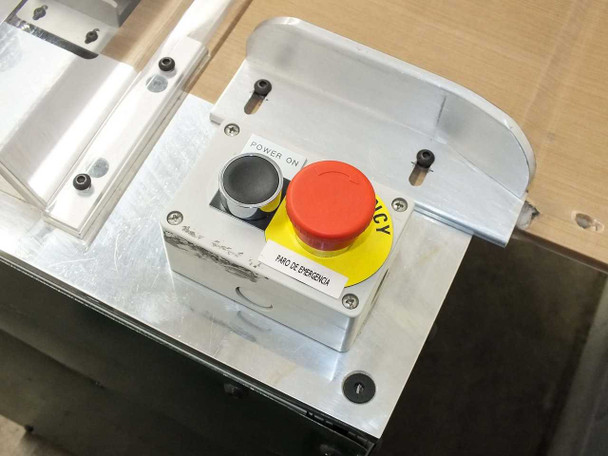

- Controls: Power On pushbutton; red mushroom-head Emergency Stop (labeled PARO DE EMERGENCIA)
- Frame: Aluminum extrusion with leveling feet; clear acrylic upper safety guarding

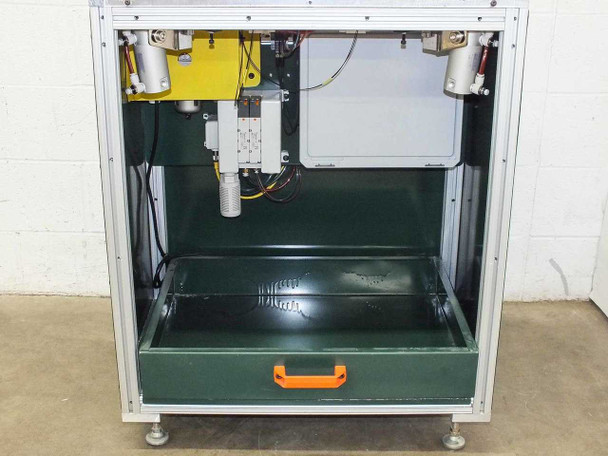

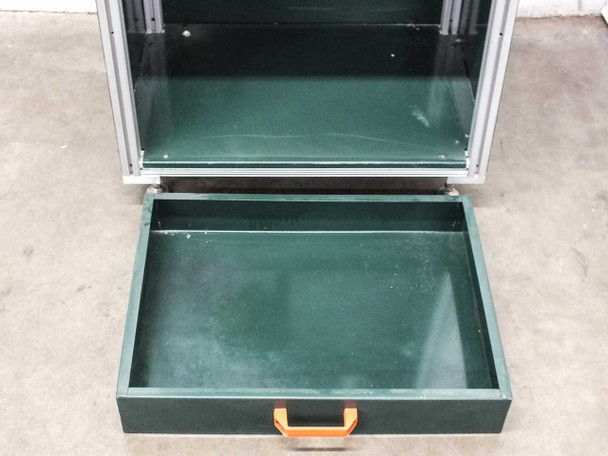

- Catch/scrap drawer: Removable green steel drawer with orange handle
Applications
Custom pneumatic corner trimmers like this one are used in plastics fabrication shops, sign-making operations, and industrial manufacturing lines where sheets of acrylic, polycarbonate, PVC, or similar rigid plastic material require repeatable corner removal or notching. The pneumatic drive provides consistent cutting force on every cycle without operator fatigue, and optical fiber sensors allow precise material positioning and alignment detection before the cut is made. Time delay relays and door interlock sensors are standard safety features in these semi-automated cutting systems, ensuring the cutting cycle cannot be initiated while the guard is open. This type of machine is typically found in environments producing display cases, point-of-purchase fixtures, enclosures, and other fabricated plastic components where square corner trimming is a routine step in the production process.
This custom plastic sheet corner trimmer has been inspected and appears to be in good condition. The aluminum extrusion frame is intact and sturdy, with no visible structural damage. The clear acrylic safety guards are in place, and the cutting blade assemblies, THK HSR20 linear guide carriages, and SMC pneumatic cylinders all look intact and undamaged. The control panel — including the power-on button and emergency stop — is clean and clearly labeled. The green steel catch drawer slides smoothly and shows normal use marks. Some minor surface wear consistent with prior production use is visible on the frame and components. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
Custom Corner Trimmer 14.5" |
Type: |
Pneumatic Corner Trimmer / Sheet Fabrication Machine |
SKU: |
47242 |
Power Requirements: |
110 VAC |
Power Supply: |
Rhine PSP24-060S, 60W, 110VAC to 24VDC |
Sheet Width Capacity: |
14.5 inches |
Blade Type: |
1" wide x 0.25" thick slanted blades |
Linear Motion Guides: |
THK HSR20 (x2) |
Pneumatic Cylinders: |
SMC CG1UN50-25 (x2), Max Press 145 PSI / 1.00 MPa |
Solenoid Valves: |
SMC VQC4101-5 (x2) |
Filter/Regulator: |
SMC AW40-04E |
Safety Valve: |
SMC VHS40-04 |
Optical Sensors: |
Keyence FS-N11CP (x2) |
Door Sensor: |
Telemacanique XSC-PA593 with Danner E5-FA-9AA |
Time Delay Relay: |
Fuji Electric MS4SA-CE-PA593 (x3) |
Frame: |
Aluminum extrusion frame with leveling feet |
Controls: |
Power On button, Emergency Stop (PARO DE EMERGENCIA) |
Enclosure: |
Clear acrylic safety guarding on upper cutting zone |
Catch Tray: |
Removable green steel scrap/catch drawer with handle |
Country/Region of Manufacture: |
United States |
Application: |
Corner trimming of plastic sheets in fabrication |
Condition: |
Used – Inspected |
Seller Notes: |
Custom machine; sold as pictured with all visible components. |
Condition Notes: |
This custom plastic sheet corner trimmer has been inspected and is in good condition. Frame, blade assemblies, THK linear guides, SMC pneumatic cylinders, and controls all appear intact. Normal surface wear from prior use. |
