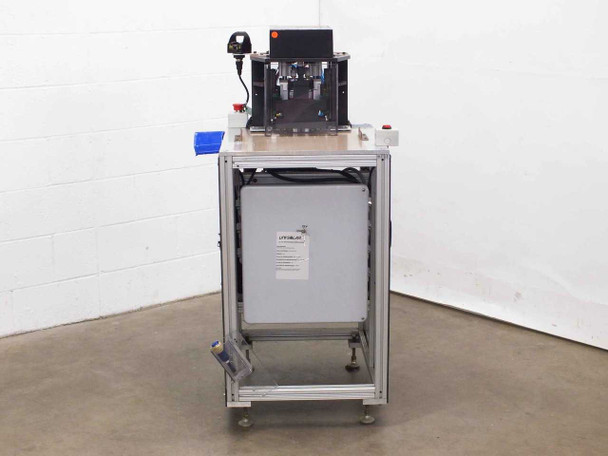

The Misco Industries MX1-710-000-2 is a custom-built automated mill/punch system designed to punch or trim plastic sheets up to 14.75 inches wide. Built on a rigid aluminum extrusion frame mounted on casters, the system integrates pneumatic punch actuation, PLC-based sequencing, fiber optic optical alignment, and a vacuum-based scrap conveying system into a self-contained unit. It runs on 110 VAC and delivers 24 VDC internally via an on-board switching power supply.

Specifications & What's Included

• Manufacturer: Misco Industries | Model: MX1-710-000-2
• Application: Plastic sheet punching / edge trimming; 14.75" sheet width capacity
• Power Input: 110 VAC
• On-Board Power Supply: Rhine PSP24-060S — 60W, 110 VAC to 24 VDC
• PLC / Controller: Omron Sysmac CP1L-M30DR-A programmable logic controller

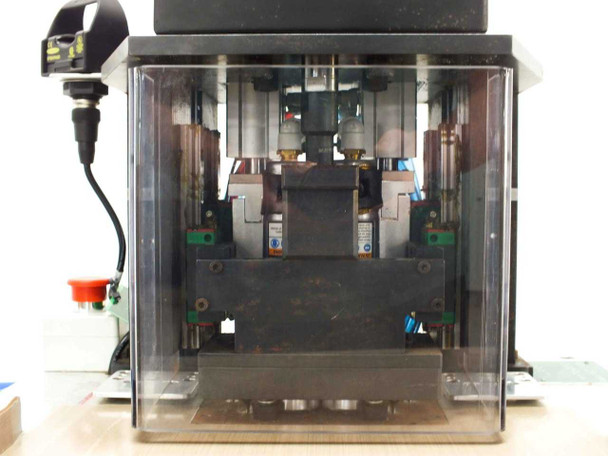

• Punch Head: Four pneumatic punches, each 1/8 in. diameter
• Pneumatic Cylinder: SMC CDQ2A80-20D compact cylinder
• Linear Motion: HIWIN EG20 linear sliders

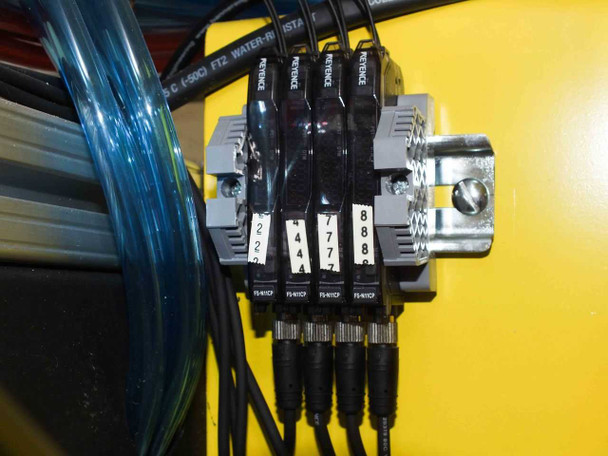

• Optical Alignment: Four Keyence FS-N11CP fiber optic sensors
• Scrap Conveying: EXAIR Line Vac with 2 ports (venturi-driven pneumatic conveyor)

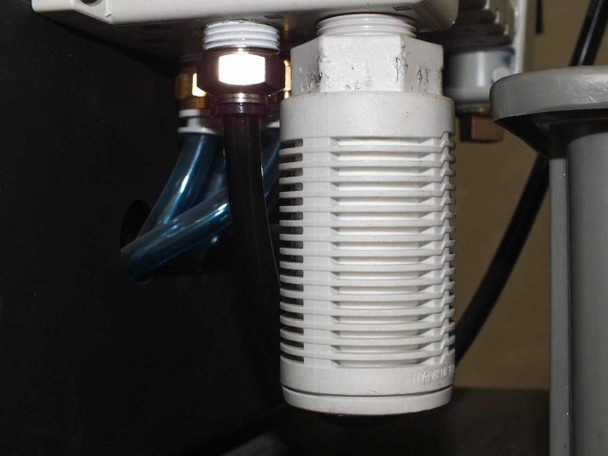

• Pneumatic Lockout / Safety Valve: SMC VHS40-04
• Pneumatic Filter-Regulator: SMC AW40-04E
• Solenoid Valves: SMC VQC4101-5 (qty 4) and SMC VQC4101-5W (qty 2)
• Pneumatic Inlet Pressure Rating: 250 PSIG MAX / 1.7 MPa MAX / 17 BAR MAX
• Press Control / Foot Switch: Banner OTBVP6QD (UL Listed Press Control, CSA, CE)
• Ingersoll Rand pneumatic component (integrated in pneumatic circuit)
• Frame: Aluminum extrusion structure with leveling casters
• Scrap collection bin / drip tray included (visible in photos)
• Clear acrylic punch-head safety guard

Applications

The MX1-710-000-2 is purpose-built for automated punching, perforating, or edge trimming of flexible or semi-rigid plastic sheet stock — the kind of operation common in solar panel manufacturing, where edge trimming of thin-film laminates (such as Uni-Solar amorphous silicon panels) is a standard production step. The system's Omron CP1L PLC controls the punch cycle sequence, while the Keyence fiber optic sensors provide precise optical registration so each punch lands in the correct position on the sheet. The EXAIR Line Vac conveys punched-out slugs or trim scrap away from the work area pneumatically, keeping the process clean and continuous. Systems of this type are found in photovoltaic panel manufacturing lines, flexible electronics fabrication, and custom plastic sheet converting operations where repeatable, high-speed punching of a fixed-width web or panel is required. The Banner OTBVP6QD UL-listed press control provides operator-safety interlocking consistent with OSHA press-control requirements.
