Solar Panel

Solar Panel Load Tester FIBOX Enclosure Ohmite 3-Ohm 225W Resistor Simpson 10A

(No reviews yet) Write a Review
SKU:
49107
MPN:
Testing
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
10.00 LBS
Shipping:
Calculated at Checkout

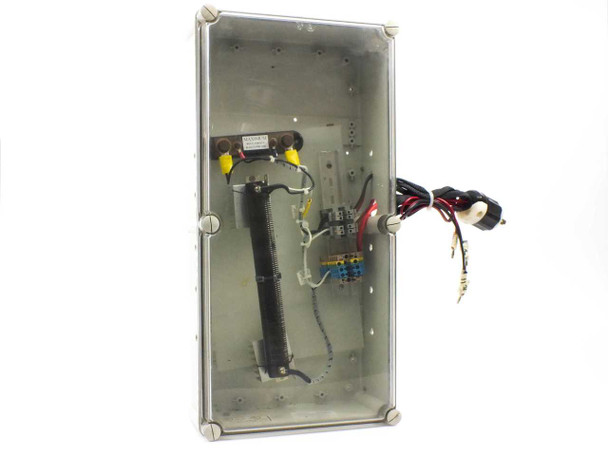

  • Solar panel load tester enclosure open view showing Ohmite 225W resistor, wiring harness, and NEMA twist-lock plug
  • FIBOX PC polycarbonate enclosure exterior rear view with NEMA twist-lock power cord and ventilation ribs

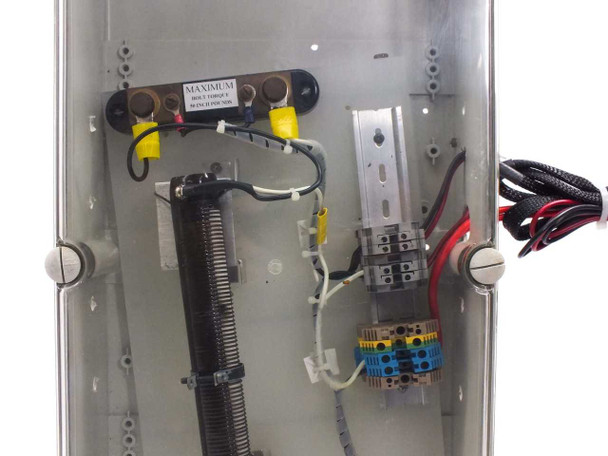

  • Interior of solar panel test enclosure showing Ohmite coil resistor, DIN rail terminal blocks, Simpson shunt, and maximum voltage label
  • Close-up of Ohmite 3-ohm 225W coil resistor and terminal block wiring inside FIBOX enclosure with UL label visible on lid
  • Close-up of NEMA twist-lock plug and flying lead test probe wires on solar panel load tester enclosure
$110.00
Was: $225.00
Current Stock: 1

Sold Out

Description

Solar Panel Load Tester FIBOX Enclosure Ohmite 3-Ohm 225W Resistor Simpson 10A Shunt

A portable load testing enclosure designed for solar panel and photovoltaic module evaluation. The unit combines a high-power resistor with precision current measurement to simulate electrical loads on PV systems during testing and commissioning.

Specifications & What's Included

  • Ohmite 3-ohm 225W resistor (Part D225K3R0E)
  • Simpson Electric 10A 50mV shunt (Model 06704)
  • FIBOX polycarbonate enclosure, 22 x 10.9 x 5.1 inches
  • NEMA twist-lock connector plug
  • Wiring harness included

Applications

This load tester is used in solar panel commissioning, performance verification, and fault diagnosis. The 225W load capacity and 10A shunt support testing of residential and small commercial PV arrays. The resistive load allows technicians to draw controlled current and measure panel output under load conditions, while the shunt provides direct current readings for system analysis.

Condition: Used
This Solar Panel Load Tester — built in a FIBOX polycarbonate enclosure with an Ohmite 3-ohm 225W resistor and Simpson Electric 10A 50mV shunt — has been inspected and is in good used condition. The enclosure shell is clean and intact with no cracks. Internally, the resistor, shunt, terminal blocks, and wiring all appear complete and undamaged. The NEMA twist-lock plug and flying test probe leads are present and intact. Normal handling marks are visible on the enclosure exterior. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Ohmite / Simpson Electric / FIBOX
Model:
D225K3R0E / 06704 / PC 5628 13 T
MPN:
D225K3R0E
Secondary Model:
918-6704
Type:
Solar Panel Load Testing Enclosure
SKU:
49107
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes Ohmite 3-ohm 225W resistor, Simpson 10A 50mV shunt, wiring, and NEMA twist-lock plug
Resistor Brand:
Ohmite
Resistor Part Number:
D225K3R0E
Resistor Catalog Number:
0604
Resistance:
3 Ohm
Resistor Power Rating:
225 Watts
Shunt Brand:
Simpson Electric
Shunt Model:
06704 / 918-6704
Shunt Current Rating:
10 Amps
Shunt Voltage Drop:
50 mV
Enclosure Brand:
FIBOX
Enclosure Model:
PC 5628 13 T
Enclosure Material:
Polycarbonate (PC Solid)
Enclosure Dimensions:
22 x 10.9 x 5.1 inches
Connector Type:
NEMA Twist-Lock Plug
Application:
Solar Panel / PV Module Load Testing
Compatible With:
Photovoltaic (PV) solar panels and modules
Country/Region of Manufacture:
United States
Form Factor:
Portable Enclosure / Benchtop
Condition Notes:
This Solar Panel Load Tester (Ohmite 3-ohm 225W resistor, Simpson 10A 50mV shunt, FIBOX enclosure) has been inspected and is in good used condition. Enclosure, wiring, and components appear complete and undamaged.
