Description
Temptronic TPO4010A-3120-2 Thermostream Temp Forcing System -85°C to +225°C
Air-based temperature forcing system for thermal testing of electronic components and devices. Delivers controlled airstreams across a wide temperature range with 0.1°C resolution and rapid thermal transitions.
Specifications & What's Included
- Temperature Range: -85°C to +225°C
- Temperature Transition: 30 seconds from +125°C to -55°C
- Resolution: 0.1°C set and display
- Air Flow: 12 SCFM maximum, manual control
- Sensor Inputs: Type T or Type K thermocouple
- Power: 220V AC, 50/60 Hz, Single Phase, 20A
- Control: Local or remote operation via internal microcomputer
- Interface: CRT monitor, handler signals (Start-Test, End-of-Test, Stop-on-First-Fail)
- Includes: Airstream hose and head arm
Applications
Used for thermal characterization, temperature cycling, and burn-in testing of integrated circuits and semiconductor devices. Integrates with IC handlers, automatic test equipment (ATE), and semiconductor test systems. Typical applications include device qualification, reliability testing, and functional verification across temperature extremes.
Condition: For Parts or Not Working

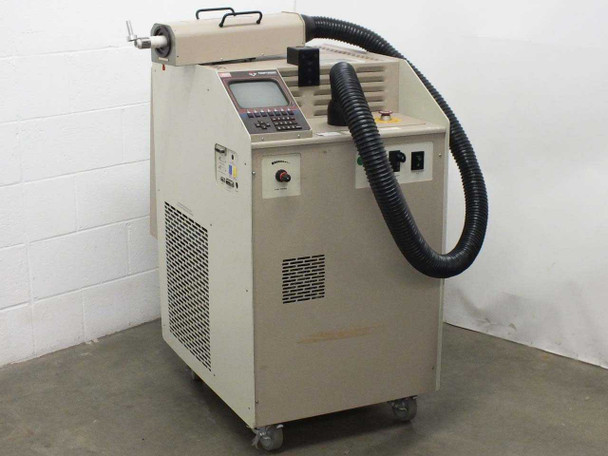

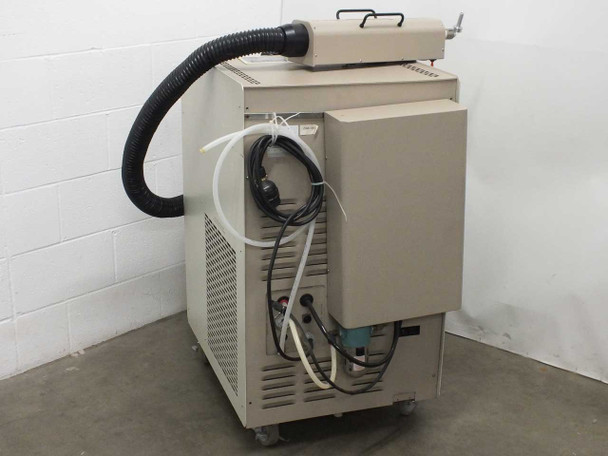

This Temptronic TPO4010A-3120-2 Thermostream Temperature Forcing System is non-working and is being sold strictly AS-IS for parts or repair. The unit does not function and is not guaranteed operational in any capacity. It may contain serviceable components including the airstream head assembly, refrigeration components, CRT display, and control hardware. Cosmetically, the cabinet shows general wear consistent with lab use — the beige enclosure has minor scuffs and soiling, the front-panel keypad and CRT monitor are present, and the flexible airstream hose and articulating arm are intact and visible. The rear of the unit shows the power cable, coolant/drain tubing, and refrigeration section. No internal testing or repair has been performed. Please view our photo set carefully and contact us if you have any questions prior to purchasing.
This Temptronic TPO4010A-3120-2 Thermostream Temperature Forcing System is non-working and is being sold strictly AS-IS for parts or repair. The unit does not function and is not guaranteed operational in any capacity. It may contain serviceable components including the airstream head assembly, refrigeration components, CRT display, and control hardware. Cosmetically, the cabinet shows general wear consistent with lab use — the beige enclosure has minor scuffs and soiling, the front-panel keypad and CRT monitor are present, and the flexible airstream hose and articulating arm are intact and visible. The rear of the unit shows the power cable, coolant/drain tubing, and refrigeration section. No internal testing or repair has been performed. Please view our photo set carefully and contact us if you have any questions prior to purchasing.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Temptronic |
Model: |
TPO4010A |
MPN: |
TPO4010A-3120-2 |
SKU: |
51950 |
Type: |
Temperature Forcing Airstream System (Thermostream) |
Condition: |
As-Is / For Parts or Not Working |
Temperature Range (Min): |
-85°C (standard head, no arm); -80°C (with arm) |
Temperature Range (Max): |
+225°C |
Temperature Transition: |
30 seconds from +125°C to -55°C |
Temperature Resolution: |
0.1°C set and display resolution |
Temperature Control Mode: |
Air or direct DUT control |
Air Flow: |
12 SCFM maximum, manual control |
DUT Sensors: |
Type T or Type K thermocouple inputs |
Handler Interface: |
Start-Test, End-of-Test, Stop-on-First-Fail signals |
User Interface: |
CRT monitor for data entry and display |
Voltage: |
220V |
Frequency / Phase: |
50/60 Hz, Single Phase |
Amperage: |
20A |
Power Requirements: |
220V AC, 50/60Hz, 20A, Single Phase |
Operation Modes: |
Local or remote operation (internal microcomputer) |
Form Factor: |
Freestanding Cabinet on Casters |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Unit is non-working; sold AS-IS for parts or repair. Flexible airstream hose and head arm included as visible. |
Application: |
Electronic device thermal characterization and temperature cycling |
Compatible With: |
IC handlers, semiconductor testers, ATE systems |
Condition Notes: |
Temptronic TPO4010A-3120-2 Thermostream is non-working, sold AS-IS for parts or repair only. Not tested, not guaranteed functional. Airstream hose and head arm present. Please contact us with questions. |
