Thermonics

Thermonics T-2423 Precision Temperature Forcing System 220VAC GPIB RS-232

(No reviews yet) Write a Review
SKU:
50236
MPN:
T-2423
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
431.00 LBS
Shipping:
Calculated at Checkout
  • Thermonics T-2423 Precision Temperature Forcing System 220 VAC - BAD ARM - AS IS

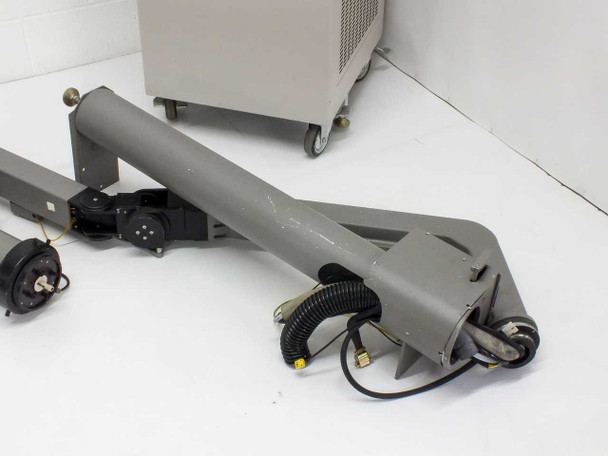

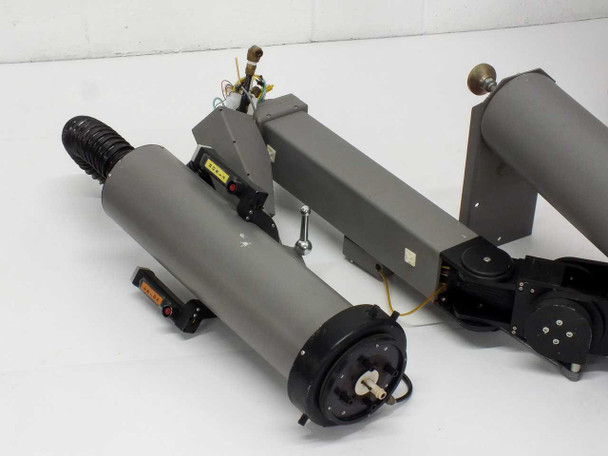

  • Thermonics T-2423 Precision Temperature Forcing System main console on casters with two T-ADF arm assemblies detached and lying on the floor in front

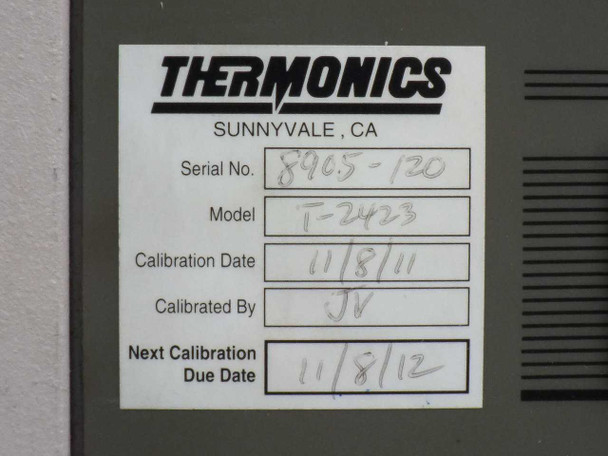

  • Thermonics identification label showing brand, Sunnyvale CA, Serial No. 8905-120, Model T-2423, Calibration Date 11/8/11, Calibrated By JV, Next Calibration Due 11/8/12
  • Thermonics T-2423 console right-side view showing front panel controls, LCD display, and vented lower enclosure on casters

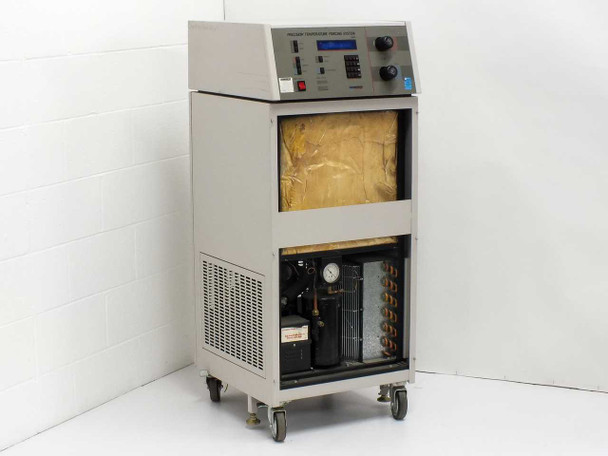

  • Thermonics T-2423 console with lower access panel open revealing internal refrigeration compressor, pressure gauge, and heat exchanger components

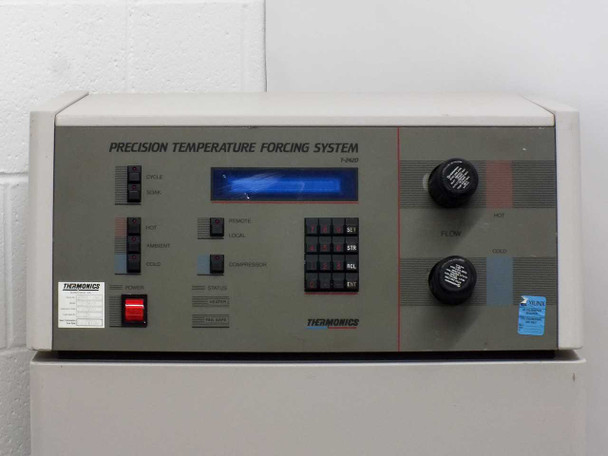

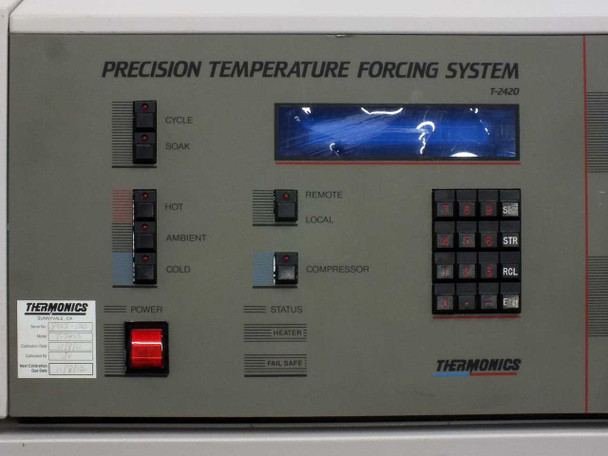

  • Thermonics T-2423 front panel labeled Precision Temperature Forcing System showing Cycle/Soak switches, Hot/Ambient/Cold mode selectors, Remote/Local toggle, Compressor switch, keypad, Status indicators, Flow knobs, and LCD display
  • Close-up of Thermonics T-2423 front panel showing T-2420 model designation, Cycle, Soak, Hot, Ambient, Cold mode switches, Remote/Local, Compressor toggle, blue LCD display, Status Heater and Fail Safe indicators, and Thermonics logo

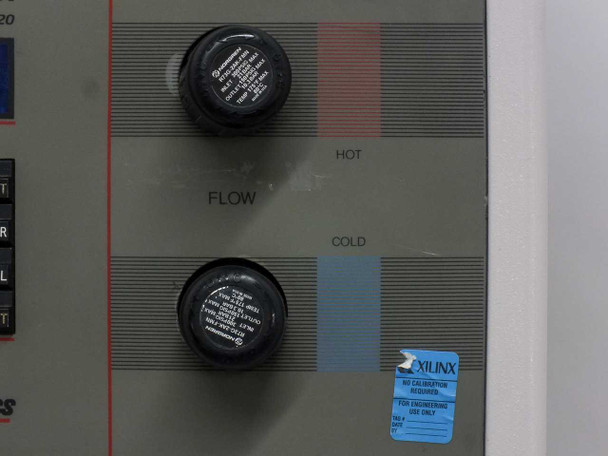

  • Close-up of T-2423 front panel Hot and Cold flow control knobs with Xilinx engineering-use-only calibration tag affixed below Cold knob

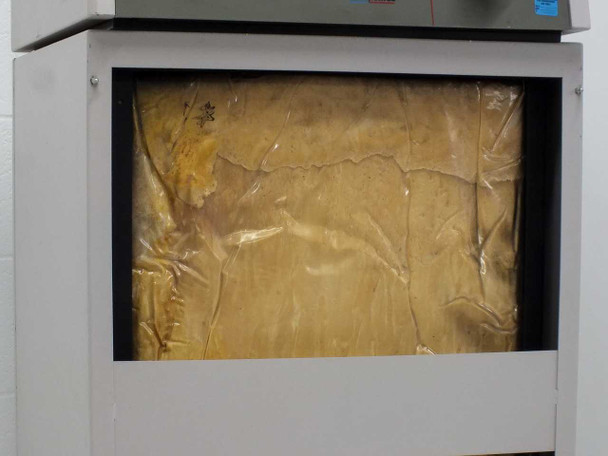

  • Interior view of lower access compartment showing aged yellow foam insulation panel covering the refrigeration section
  • Internal refrigeration section of Thermonics T-2423 with compressor, refrigerant pressure gauge, condenser coil with fan guard, and copper refrigerant lines visible

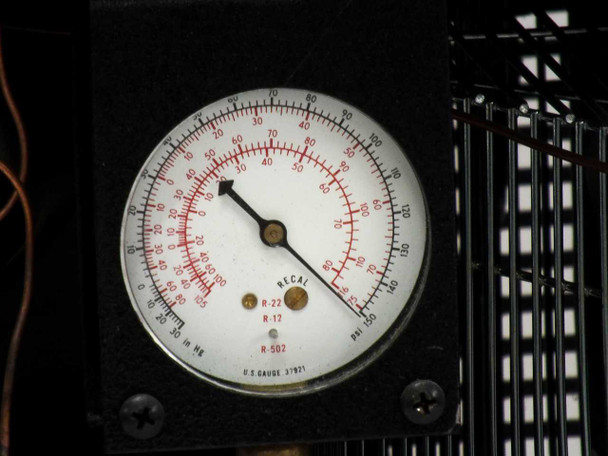

  • Close-up of refrigerant pressure gauge labeled REGAL R-22 / R-12 / R-502, U.S. Gauge 37921, mounted inside compressor compartment

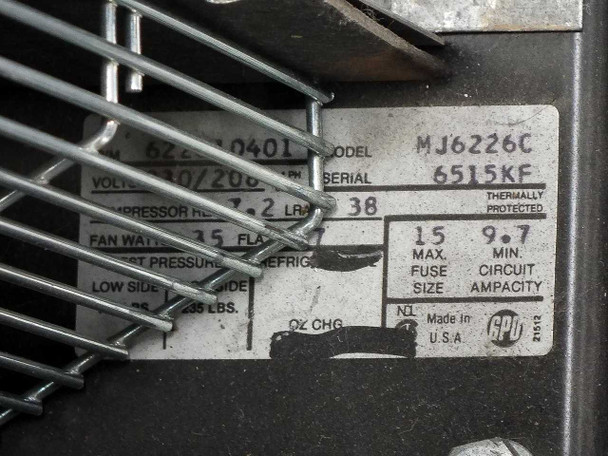

  • Compressor data plate showing Model MJ6226C, Serial 6515KF, voltage 110/208, compressor RLA 38, fan watts 35, max fuse size 15A, min circuit ampacity 9.7A, Thermally Protected, Made in USA

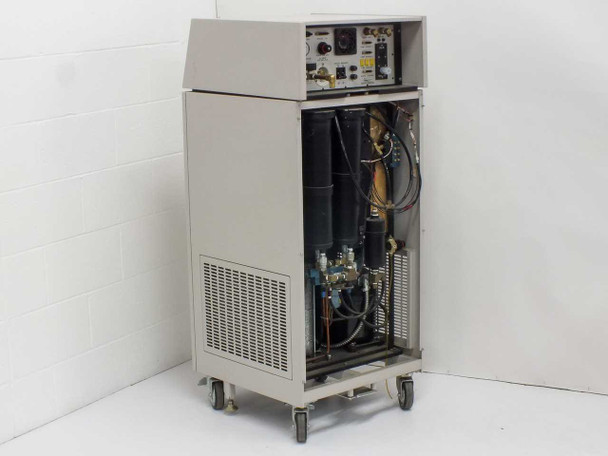

  • Rear three-quarter view of Thermonics T-2423 console with top lid open showing rear panel connections and vented lower enclosure
  • Thermonics T-2423 rear view with side panel removed showing internal plumbing, solenoid valves, refrigerant lines, hoses, and wiring harness

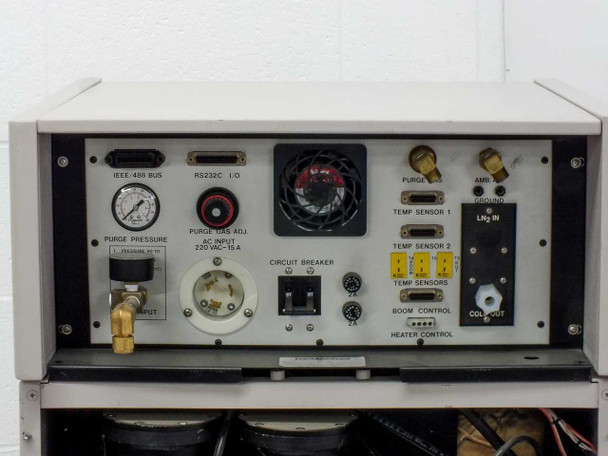

  • Close-up of Thermonics T-2423 rear panel showing IEEE/488 BUS connector, RS-232C I/O port, purge pressure gauge, purge gas adjust, AC Input 220VAC-15A twist-lock receptacle, circuit breaker, temp sensor 1, temp sensor 2, temp sensors block, boom control, heater control, cold out port, LN2 IN port, AMB/ground connections

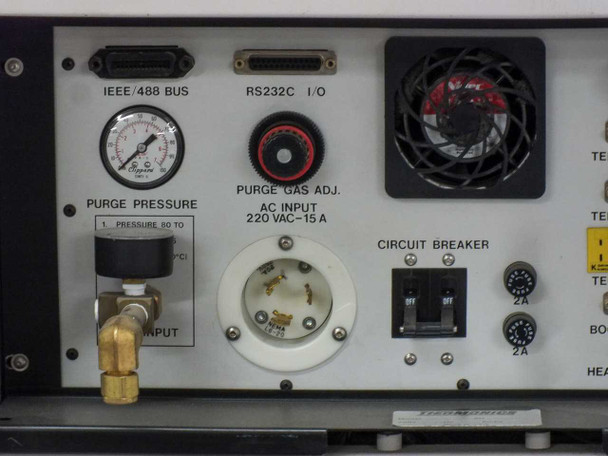

  • Close-up of upper-left rear panel showing IEEE-488 BUS connector, RS-232C I/O connector, purge gas adjustment control, AC INPUT 220VAC-15A label with twist-lock power inlet, circuit breaker switches, and purge pressure gauge

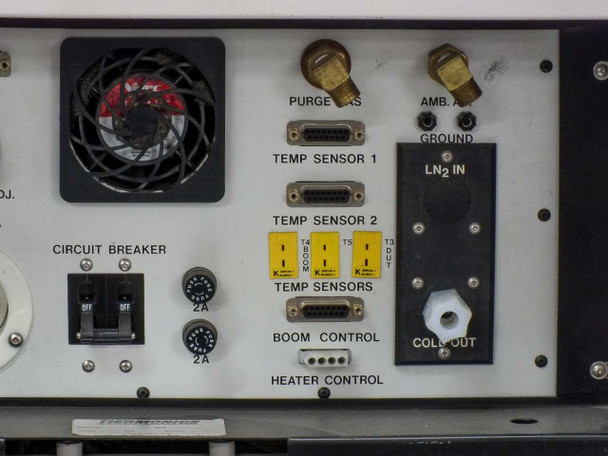

  • Close-up of upper-right rear panel showing Purge Gas port, Temp Sensor 1, Temp Sensor 2, Temp Sensors DB connectors in yellow housing, Boom Control header, Heater Control connector, AMB/Ground terminals, LN2 IN port, and Cold Out fitting
  • Thermonics T-2423 bottom nameplate label showing Model T-2423, Made in USA, with SN, Volts, Hz, and Amps fields blank

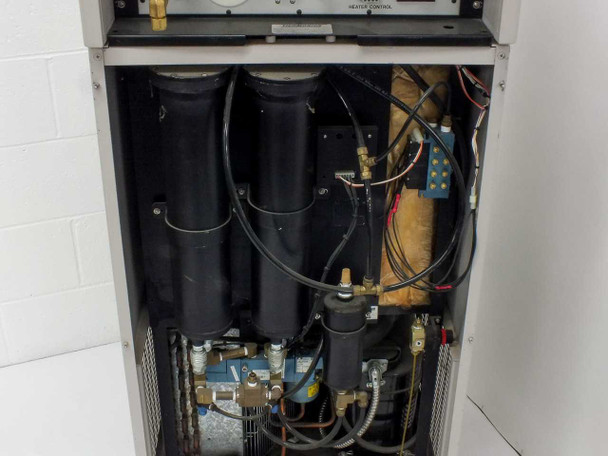

  • Internal view of rear side panel removed showing dual large black cylindrical accumulators/reservoirs, solenoid valve manifold, compressor, copper and flex refrigerant lines, and wiring
  • Close-up of internal refrigeration plumbing showing heat exchanger, blue filter drier canister, solenoid valves, copper fittings, compressor unit, and flexible conduit

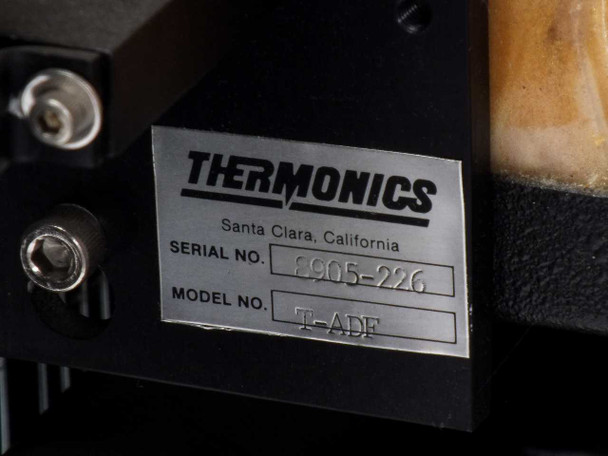

  • Nameplate on T-ADF arm assembly reading Thermonics, Santa Clara California, Serial No. 8905-226, Model No. T-ADF
  • Thermonics T-2423 Precision Temperature Forcing System 220 VAC - BAD ARM - AS IS
  • Thermonics T-2423 Precision Temperature Forcing System 220 VAC - BAD ARM - AS IS
$1,100.00
Was: $2,200.00
Current Stock: 1

Sold Out

Description

Thermonics T-2423 Precision Temperature Forcing System 220VAC GPIB RS-232

Floor-standing benchtop console for semiconductor and IC thermal stress testing. Provides hot, ambient, and cold temperature forcing modes with cycle and soak capabilities using R-22 refrigerant and optional LN2 input.

Specifications & What's Included

  • Model: T-2423 with T-ADF arm assembly (damaged)
  • Power: 220VAC, 15A maximum
  • Interfaces: IEEE-488 (GPIB) and RS-232C
  • Compressor: MJ6226C
  • Temperature modes: Hot, Ambient, Cold, Cycle, Soak, Remote, Local
  • LN2 input port on rear panel
  • Status indicators: Heater, Fail Safe
  • Last calibrated: 11/8/2011

Applications

Used in semiconductor manufacturing and testing labs for thermal cycling and stress testing of integrated circuits. Compatible with Thermonics T-2420 series thermal test systems. Operates via GPIB or RS-232 control interfaces for automated test sequences.

Condition: For Parts or Not Working
This Thermonics T-2423 Precision Temperature Forcing System was in working condition prior to being moved to our facility. During transport, the T-ADF arm assembly was damaged and is now non-functional; the unit is therefore being sold as-is for parts or repair. The main console cabinet shows typical wear consistent with lab use, including scuffing and light surface marks on the outer panels. The lower refrigeration compartment is accessible and the internal compressor, condenser, pressure gauge, and refrigerant plumbing are visible and appear intact. The rear panel connections — including IEEE-488 GPIB, RS-232C, temp sensor ports, boom control, heater control, LN2 IN, and cold out — are all present. Two T-ADF arm assemblies are included and visible in the photos. No functionality is guaranteed in its current state. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Thermonics
Model:
T-2423
MPN:
T-2423
Type:
Precision Temperature Forcing System
SKU:
50236
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes T-ADF arm assembly (damaged). Sold as-is.
Country/Region of Manufacture:
United States
Form Factor:
Floor-Standing / Benchtop Console on Casters
Power Requirements:
220VAC, 15A
Interface Type:
IEEE-488 (GPIB), RS-232C
Temperature Modes:
Hot, Ambient, Cold
Refrigerant:
R-22
LN2 Input:
Yes — LN2 IN port on rear panel
Compressor Model:
MJ6226C
Max Fuse Size:
15A
Min Circuit Ampacity:
9.7A
Application / Use Case:
Semiconductor / IC Thermal Stress and Cycling Test
Arm Model:
T-ADF
Calibration Date:
11/8/2011
Control Interface:
IEEE-488 BUS (GPIB), RS-232C I/O
Status Indicators:
Heater, Fail Safe
Modes:
Cycle, Soak, Hot, Ambient, Cold, Remote, Local
Compatible With:
Thermonics T-2420 series thermal test systems
Condition Notes:
This Thermonics T-2423 Precision Temperature Forcing System was in working condition prior to being moved to our facility. During transport, the T-ADF arm assembly was damaged and is now non-functional; the unit is therefore being sold as-is for
