RMC Cryosystems

RMC Cryosystems CR31-42 Temperature Controller 120VAC IEEE RS-232 2 Analog

(No reviews yet) Write a Review
SKU:
20391
MPN:
CR31-42
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
15.00 LBS
Shipping:
Calculated at Checkout

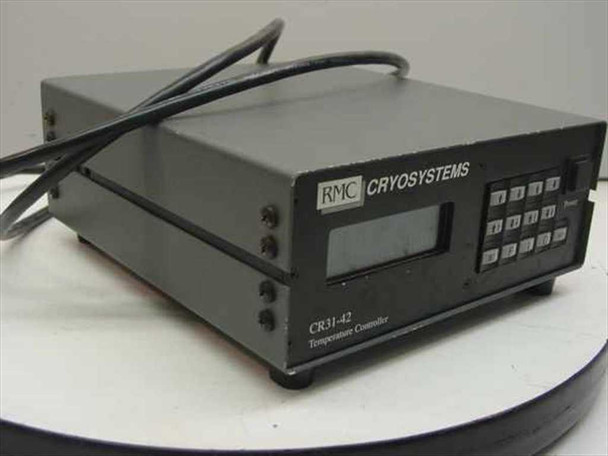

  • RMC Cryosystems CR31-42 Temperature Controller – front panel showing LCD display and keypad, three-quarter view

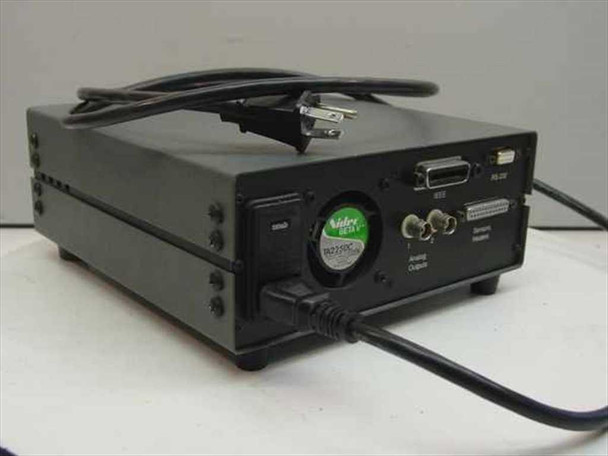

  • RMC Cryosystems CR31-42 Temperature Controller – rear panel showing IEEE, RS-232, analog outputs, sensors/heaters connectors and Nidec fan
  • RMC Cryosystems CR31-42 Temperature Controller – front panel close-up showing LCD, PID keypad buttons and Power switch

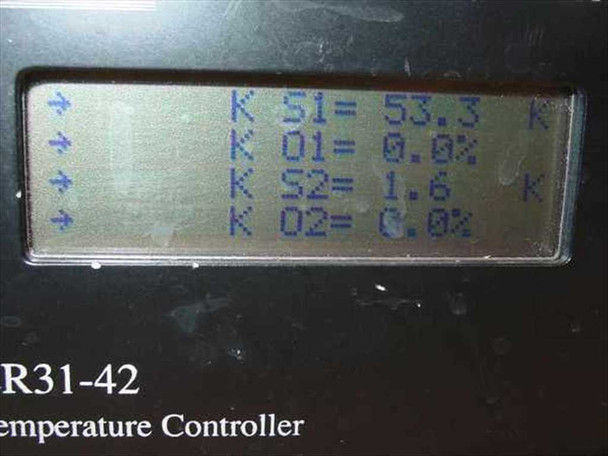

  • RMC Cryosystems CR31-42 Temperature Controller – LCD display close-up showing K S1, K O1, K S2, K O2 temperature setpoint readouts
  • RMC Cryosystems CR31-42 Temperature Controller – rear power inlet showing 120VAC label and Nidec Beta V TA225DC cooling fan

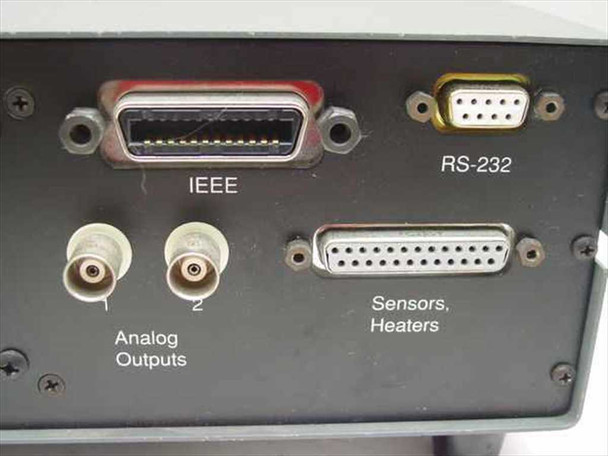

  • RMC Cryosystems CR31-42 Temperature Controller – rear panel close-up showing IEEE GPIB port, RS-232 DB9, two BNC Analog Outputs, and Sensors/Heaters D-Sub connector
$250.00
Was: $500.00
Current Stock: 1

Sold Out

Description

RMC Cryosystems CR31-42 Temperature Controller 120VAC IEEE RS-232 2 Analog Outputs

Benchtop cryogenic temperature controller for managing thermal conditions in cryostat systems. Operates on 120VAC and provides PID control with dual analog outputs via BNC connectors.

Specifications & What's Included

  • Model: CR31-42
  • Power: 120VAC
  • Control Type: PID
  • Interfaces: IEEE (GPIB) and RS-232
  • Analog Outputs: 2 (BNC connectors)
  • Sensor/Heater Connectors: D-Sub
  • Display: LCD
  • Includes attached power and signal cables

Applications

Used in laboratory and research environments for regulating cryogenic systems, liquid helium cooled equipment, and low-temperature experiments. The dual analog outputs allow simultaneous control of heating and cooling elements or monitoring of multiple temperature zones. GPIB and RS-232 interfaces enable remote operation and data logging in automated test setups.

Condition: Used
This RMC Cryosystems CR31-42 Temperature Controller has been inspected and is in good condition. The front panel LCD is functional and displays readings (visible in the photos showing K S1, K O1, K S2, and K O2 values), and the keypad and Power switch appear intact. The enclosure shows light surface wear and minor scuffing consistent with lab use, but there is no cracking or significant damage. The rear panel ports — IEEE (GPIB), RS-232, two BNC Analog Outputs, and the Sensors/Heaters D-Sub connector — all appear clean and undamaged. The internal Nidec Beta V cooling fan is present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
RMC Cryosystems
Model:
CR31-42
MPN:
CR31-42
Type:
Cryogenic Temperature Controller
SKU:
20391
Condition:
Used – Inspected
Power Requirements:
120VAC
Form Factor:
Benchtop
Interface Type:
IEEE (GPIB), RS-232
Number of Analog Outputs:
2
Analog Output Connector:
BNC
Sensor/Heater Connector:
D-Sub (Sensors, Heaters port)
Control Type:
PID
Display:
LCD
Application:
Cryostat / Cryogenic System Temperature Control
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; includes attached power and signal cables visible in photos.
Condition Notes:
RMC Cryosystems CR31-42 Temperature Controller has been inspected and is in good condition. Enclosure shows light lab wear; all rear ports appear clean. LCD displays readings. Please contact us with any questions.
View AllClose

Related Products

Related Products

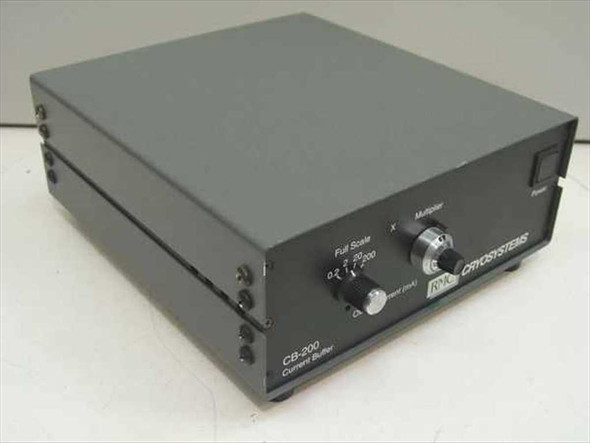

RMC Cryosystems CB-200 Current Buffer — right-front three-quarter view showing Full Scale selector, Multiplier knob, and Power switch on front panel RMC Cryosystems CB-200 Current Buffer — left-rear three-quarter view showing BNC output connectors, circular meter indicator, and side panel LEDs
