Motorola SGLN5278A TRN9595C Microcite SCC Cell Site Controller HDII NAMPS

Motorola SGLN5278A TRN9595C Microcite SCC Cell Site Controller HDII NAMPS

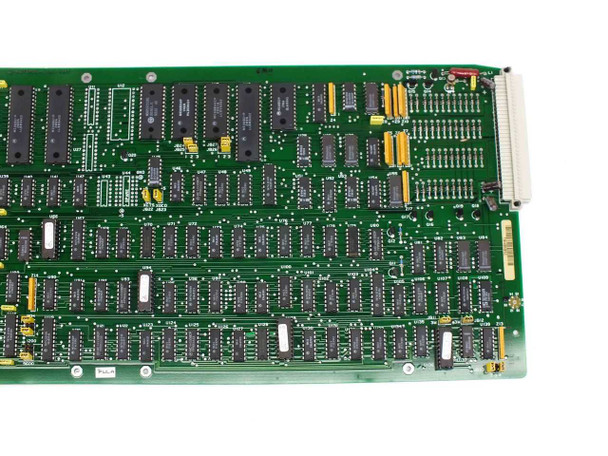

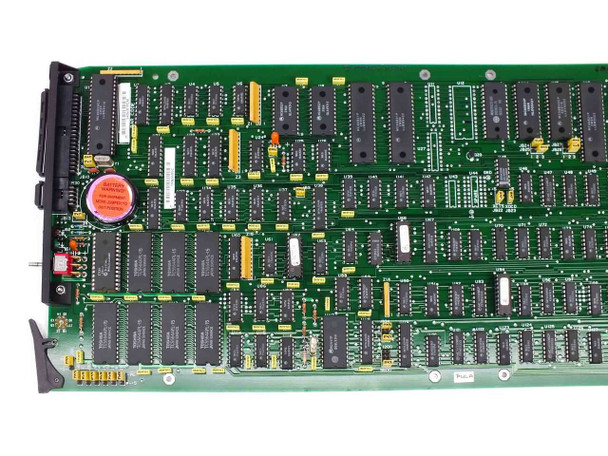

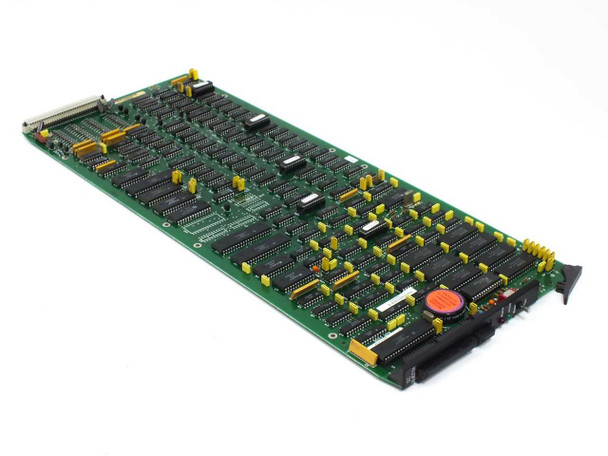

The Motorola SGLN5278A (also designated TRN9595C) is a Site Controller Card (SCC) module designed for the Motorola Microcite cellular base station platform. It functions as the primary controller for HDII/NAMPS cell site operations, managing switching, alarm monitoring, and site-level control functions within the base station architecture. This module is a plug-in card that connects to the Microcite backplane and interfaces with other system modules to coordinate cellular infrastructure operations.

Specifications & What's Included

• Model: SGLN5278A
• Secondary Model / Designation: TRN9595C

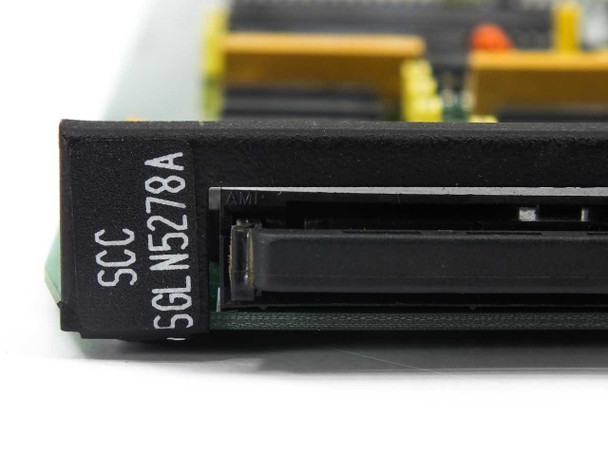

• Type: Site Controller Card (SCC) – Plug-in PCB Module
• Form Factor: Dual card-slot compatible, multi-pin card-edge backplane connector
• Compatible System: Motorola C25HDM01H7AF Microcite Base Station
• System Platform: HDII / NAMPS Cellular Infrastructure

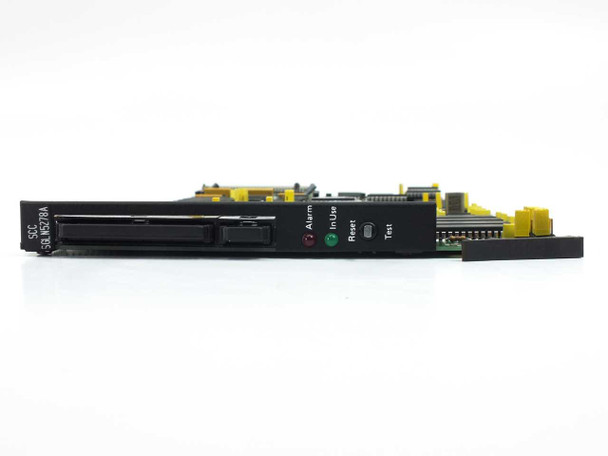

• Front Panel Indicators: Alarm LED (red), In Use LED (green), Reset pushbutton, Test pushbutton

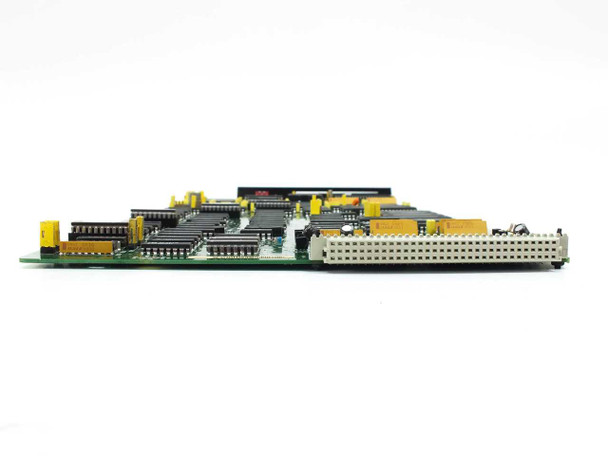

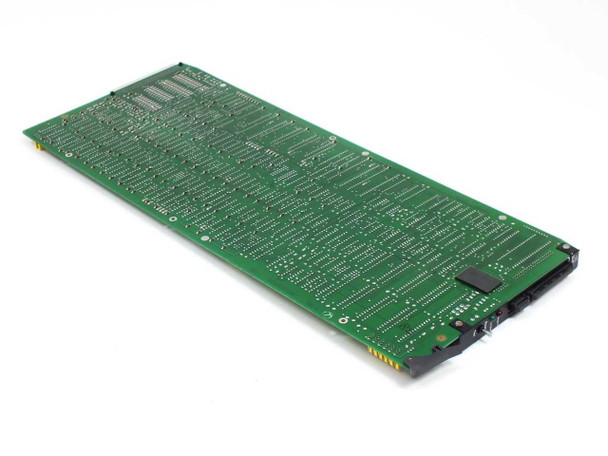

• Connector Interface: Multi-pin card-edge backplane (dual front-panel mounting slots visible)
• Function: Site control, switching logic, alarm monitoring, and base station management
• Country of Manufacture: United States
• Included: Card module only – no accessories, cables, or documentation included

Applications

The Motorola Microcite SCC controller card is a critical infrastructure module used in cellular base station deployments. These cards were standard in Motorola's HDII and NAMPS (North American Mobile Phone System) base station equipment, primarily deployed during the 1990s and early 2000s in legacy cellular networks. The SCC module manages site-level switching operations, cell site communication, alarm logging, and system initialization — essentially serving as the intelligence center of the base station. The Microcite platform was widely deployed across North American carriers for both coverage and capacity expansion. Today, these controller cards remain valuable to network historians, system integrators working on legacy infrastructure maintenance, and refurbishment operations supporting extended service life of older base station equipment. They are also sought by collectors and educational institutions studying the evolution of cellular technology from the analog-to-digital transition era.
