Motorola

Motorola Microcite SGF4013A Cell Site Line Card 91R09623U01 SMA RF

(No reviews yet) Write a Review
SKU:
12206
MPN:
SGF4013A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
22.00 LBS
Shipping:
Calculated at Checkout

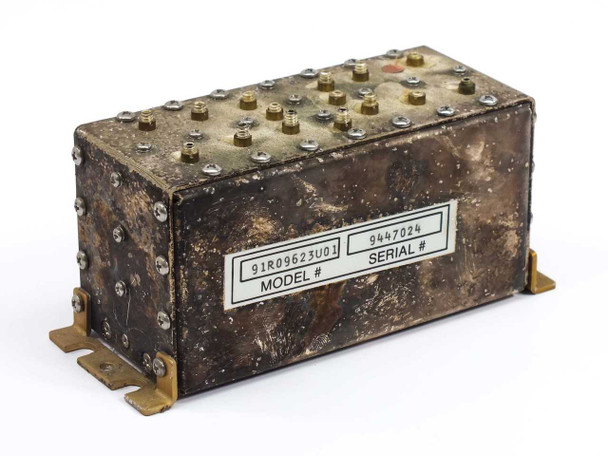

  • Motorola Microcite SGF4013A cell site line card – angled top view showing model label 91R09623U01 and multiple SMA connector studs on top surface
  • Motorola Microcite SGF4013A line card – side view showing SMA RF IN and OUT connectors on end panel with Motorola label and barcode
  • Motorola cell site line card 91R09623U01 – close-up of model number label showing model 91R09623U01
  • Motorola Microcite SGF4013A – front face showing model and serial number label with heavy surface patina and wear
  • Motorola Microcite SGF4013A – end panel view showing SGFF4013A label with barcode, brass mounting feet, and SMA RF connectors
  • Motorola Microcite Line Card - Micro CITE Cell Site SGF4013A
$120.00
Was: $325.00
Current Stock: 2

Sold Out

Description

Motorola Microcite SGF4013A Cell Site Line Card 91R09623U01 SMA RF

This is an RF line card module for Motorola Microcite cell site systems. It processes RF signals for cellular base station applications and connects via two SMA connectors.

Specifications & What's Included

  • Model: SGF4013A (MPN: 91R09623U01)
  • Interface: SMA RF (2 ports—IN and OUT)
  • Compatible with Motorola Microcite / Micro CITE systems
  • Form Factor: Line card/module
  • Made in USA
  • Line card only; no accessories included

Applications

Used in cellular base station and cell site RF signal processing installations.

Condition: Used
This Motorola Microcite SGF4013A Cell Site Line Card RF module was professionally pulled from an active working environment, indicating it was in operational service prior to removal. The unit shows normal cosmetic wear consistent with field deployment. As a pulled-from-service component, it retains the condition achieved during its time in the cell site infrastructure. We may have multiple units of this item in stock; the unit you receive may vary slightly from the photos but is functionally equivalent and inspected to the same standard.
View AllClose

Warranty Information

Sold as-is in used condition. No warranty is expressed or implied. Please contact us with any questions before purchasing.
View AllClose

Additional Information

Brand:
Motorola
Model:
SGF4013A
Secondary Model:
91R09623U01
MPN:
91R09623U01
SKU:
12206
Condition:
Used – Pulled from Working Environment
Seller Notes:
Line card only; no additional accessories included.
Form Factor:
Card/Module
Compatible With:
Motorola Microcite / Micro CITE Cell Site Systems
Country of Manufacture:
United States
Connector Type:
SMA (RF IN and OUT)
Application / Use Case:
Cellular base station / cell site RF signal processing
Interface Type:
SMA RF
Number of Ports:
2 (SMA IN, SMA OUT)
Product Type:
Cell Site Line Card / RF Module
Condition Notes:
Motorola Microcite SGF4013A Cell Site Line Card pulled from working environment. Shows normal wear from field service. Ready for redeployment or testing.
