Motorola

Motorola SGLF1059A Microcite Voice XPA Cell Site Transmitter Card Module

(No reviews yet) Write a Review
SKU:
12200
MPN:
SGLF1059A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout

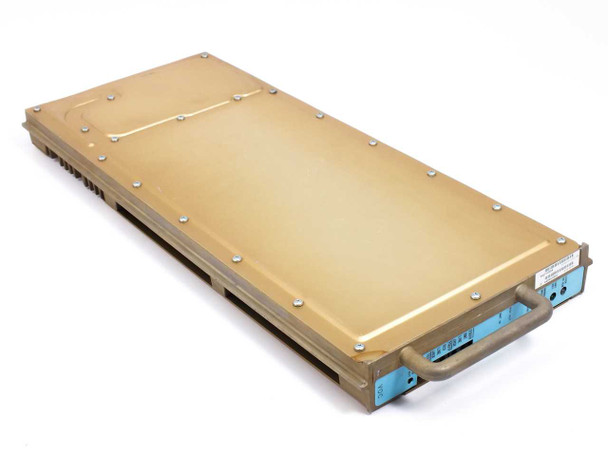

  • Motorola SGLF1059A Microcite Voice XPA Cell Site Transmitter Card – top view showing gold anodized enclosure with carry handle and label on right edge
  • Motorola SGLF1059A Microcite Voice XPA Card – rear three-quarter view showing large multi-pin backplane connector and gold module housing
  • Motorola SGLF1059A Microcite Voice XPA label closeup showing part number, product name, date code 6285, and blue LED indicator panel with mode labels
  • Motorola SGLF1059A Microcite Voice XPA Card – front edge view showing VOC port, test jacks, LED indicators and blue front panel
  • Motorola SGLF1059A Microcite Voice XPA Card – connector end view showing large ribbon connector and multi-pin gold connector on bottom edge
$50.00
Was: $325.00
Current Stock: 9

Sold Out

Description

Motorola SGLF1059A Microcite Voice XPA Cell Site Transmitter Card Module

Voice XPA transmitter card module for Motorola Microcite cellular base station systems. This card handles voice channel transmission and modulation functions within the cell site infrastructure.

Specifications & What's Included

  • Model: SGLF1059A (Secondary: 449WU085V)
  • Form Factor: Card / Module with multi-pin backplane and large ribbon connectors
  • LED Indicators: Audio Loopback, Narrow Mode, XMT Key, Lock, CH ALM
  • Front Panel: VOC, JACK, LINE, EQUIP, TEST, RDY, AMP OUT labels
  • Card only; no additional accessories included
  • Manufactured in the United States

Applications

Used in Motorola Microcite cell site systems for cellular base station voice transmission infrastructure.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Motorola SGLF1059A Microcite Voice XPA Cell Site Transmitter Card shows normal cosmetic wear consistent with prior installation in a cellular infrastructure system. The gold module housing and blue front panel appear intact with no visible cracks or damage; LED indicator lenses are present. The unit has not been powered up or bench-tested at our facility. Sold as surplus. Please view our photo set and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Motorola
Model:
SGLF1059A
MPN:
SGLF1059A
Secondary Model:
449WU085V
SKU:
12200
Condition:
Used – Inspected
Seller Notes:
Card only; no additional accessories included.
Form Factor:
Card / Module
Compatible With:
Motorola Microcite Cell Site System
Country of Manufacture:
United States
Product Type:
Voice XPA Cell Site Transmitter Card
Application:
Cellular Base Station / Cell Site Infrastructure
Interface Type:
Multi-pin backplane connector; large ribbon connector
Indicator LEDs:
Audio Loopback, Narrow Mode, XMT Key, Lock, CH ALM
Front Panel Labels:
VOC, JACK, LINE, EQUIP, TEST, RDY, AMP OUT
Condition Notes:
This Motorola SGLF1059A Microcite Voice XPA Cell Site Transmitter Card shows normal cosmetic wear consistent with prior installation in a cellular infrastructure system.
View AllClose

Related Products

Related Products

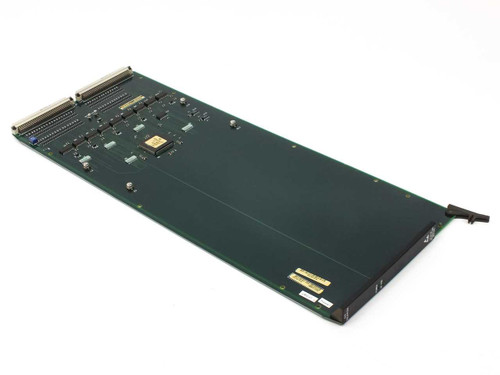

Motorola SGLN4131A SIO Microcite Card 8409630P04 – angled top view showing full PCB board length Motorola SGLN4131A SIO Microcite Card – reverse/bottom side of PCB showing solder side and edge connectors
