Motorola

Motorola Microcite SGPN4019A Line Power Board C25HDM01H7AF Cell Site Card

(No reviews yet) Write a Review
SKU:
12204
MPN:
SGPN4019A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
22.00 LBS
Shipping:
Calculated at Checkout

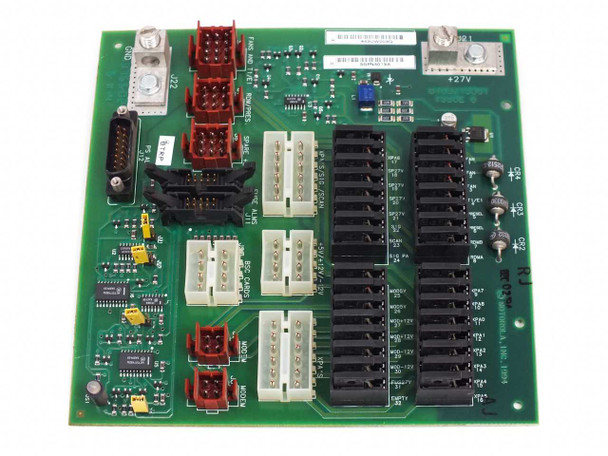

  • Motorola SGPN4019A Microcite Line Power Board — front component side showing red, white, and black multi-pin connectors, D-sub connector, and ICs on green PCB

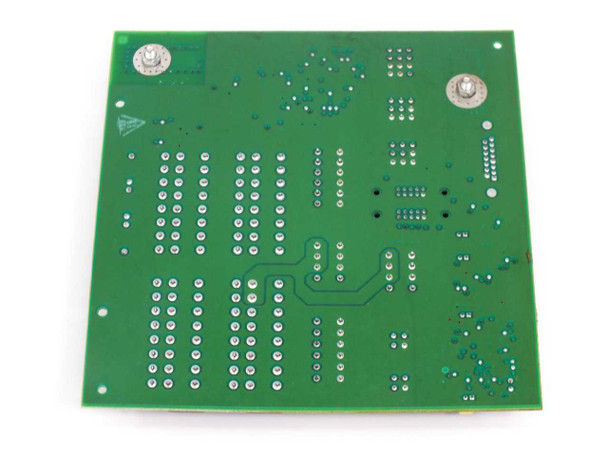

  • Motorola SGPN4019A Microcite Line Power Board — rear/solder side showing solder pads, vias, and bare green PCB
  • Motorola SGPN4019A label closeup showing part number SGPN4019A and barcode label 449UW009Q on board edge
  • Motorola SGPN4019A Microcite Line Power Board — angled front view showing full board layout with connector array and component population
$150.00
Was: $350.00
Current Stock: 1

Sold Out

Description

Motorola Microcite SGPN4019A Line Power Board C25HDM01H7AF Cell Site Card

This is a line power board from the Motorola Microcite base station system. The board distributes power throughout the cell site equipment and connects via multi-pin board connectors, D-sub, and polarized headers.

Specifications & What's Included

  • Model: SGPN4019A (Secondary: 449UW009Q)
  • Compatible with Motorola C25HDM01H7AF Microcite Base Station
  • Form Factor: Card / PCB Module
  • Connectors: Multi-pin board connectors, D-sub, red/white/black polarized headers
  • Board only—no enclosure or accessories included
  • Manufactured in the United States

Applications

Used for power distribution in Motorola Microcite cellular base station systems.

Condition: Used
This Motorola SGPN4019A Microcite Line Power Board was pulled from a C25HDM01H7AF Microcite base station. The board shows normal signs of use and appears cosmetically intact with no obvious physical damage observed. It has not been bench-tested at our facility. Please view our photos and reach out with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Motorola
Model:
SGPN4019A
MPN:
SGPN4019A
Secondary Model:
449UW009Q
SKU:
12204
Condition:
Used – Inspected
Seller Notes:
Line power board only; no enclosure or accessories included.
Form Factor:
Card / PCB Module
Compatible With:
Motorola C25HDM01H7AF Microcite Base Station
Compatible With 2:
Motorola Microcite Cell Site Systems
Country of Manufacture:
United States
Application:
Cellular base station power distribution
Connector Types:
Multi-pin board connectors, D-sub, red/white/black polarized headers
Condition Notes:
This Motorola SGPN4019A Microcite Line Power Board was pulled from a C25HDM01H7AF Microcite base station. The board shows normal signs of use and appears cosmetically intact with no obvious physical damage observed.
View AllClose

Related Products

Related Products

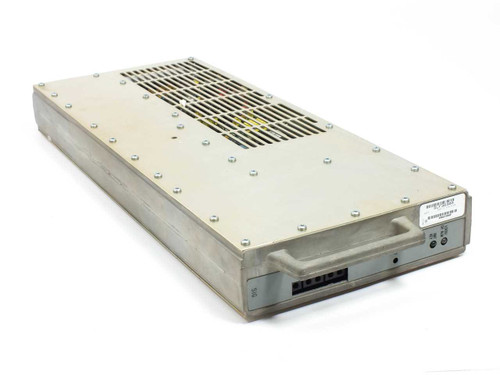

Motorola SLF3230A Microcite SIG II HYB XCVR line card — angled top view showing ventilated metal enclosure with edge connector end Motorola SLF3230A Microcite line card — angled rear view showing large multi-pin backplane edge connector and ventilation grille
