Description
Motorola C25HDM01H7AF Microcite HDII NAMPS Micro Cellular CITE Base Station
Self-contained micro cellular base station cabinet designed for analog NAMPS/AMPS cellular networks. Operates as a localized cellular telephone switch for small coverage areas.
Specifications & What's Included
- Model: C25HDM01H7AF | Series: Microcite HDII
- Technology: NAMPS/AMPS Analog Cellular
- Cabinet dimensions: 28" W × 27" D × 28" H on casters

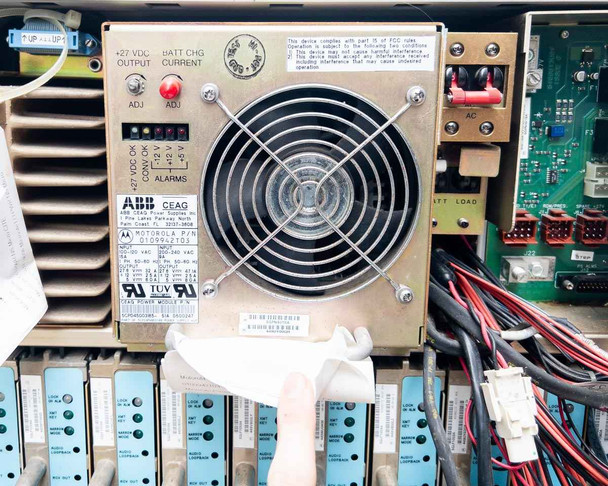

- Power supply: ABB CEAG +27VDC with battery charger module
- 9 installed circuit cards including SLF3230A, SGLF tuning modules, voice channel cards (VOC1–VOC8), and T1/Ethernet interface

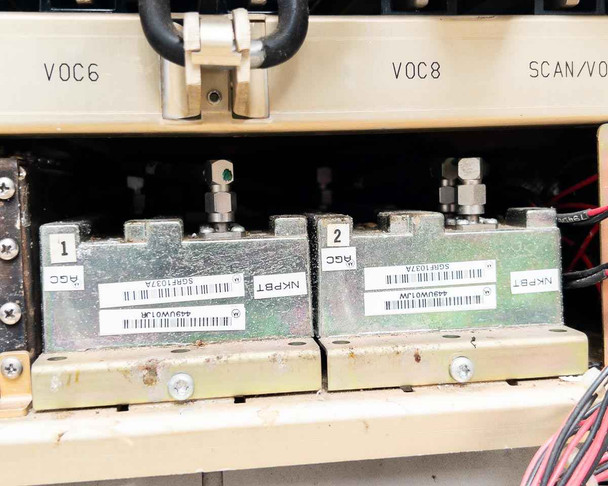

- 2× SQMF1037A tuning modules (AGC/NKPBT, VOC slots)
Applications
Microcite HDII base stations were used for closed indoor cellular systems in large buildings, campuses, tunnels, and industrial facilities where standard cellular coverage was insufficient. These systems connected to AMPS networks and provided localized mobile telephone service. The CITE architecture allowed standalone or networked operation for controlled coverage areas.
Condition: For Parts or Not Working
This Motorola C25HDM01H7AF Microcite HDII/NAMPS Micro Cellular Base Station is being sold AS-IS for parts or repair. We are unable to test it at our facility, so no functionality is guaranteed. The unit is a fully loaded cabinet and includes all nine cards listed in the specifications below. Cosmetically, the exterior enclosure shows scuffing, scratches, and tape residue on the top and lower panels. Internally, some corrosion is visible on mounting hardware in the RF module area (VOC1–VOC3 bay). The card cage and installed modules otherwise appear physically intact. This item is large and heavy (approx. 285 lbs) — please contact us for a freight shipping quote, to arrange local pickup, or to schedule an in-person viewing at our facility. Please view our photo set and contact us if you have any questions.
This Motorola C25HDM01H7AF Microcite HDII/NAMPS Micro Cellular Base Station is being sold AS-IS for parts or repair. We are unable to test it at our facility, so no functionality is guaranteed. The unit is a fully loaded cabinet and includes all nine cards listed in the specifications below. Cosmetically, the exterior enclosure shows scuffing, scratches, and tape residue on the top and lower panels. Internally, some corrosion is visible on mounting hardware in the RF module area (VOC1–VOC3 bay). The card cage and installed modules otherwise appear physically intact. This item is large and heavy (approx. 285 lbs) — please contact us for a freight shipping quote, to arrange local pickup, or to schedule an in-person viewing at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Motorola |
Model: |
C25HDM01H7AF |
MPN: |
C25HDM01H7AF |
Type: |
Micro Cellular Base Station / CITE Cellular Telephone Switch |
SKU: |
11969 |
Condition: |
As-Is / For Parts or Not Working |
Series: |
Microcite HDII |
Technology Standard: |
NAMPS / AMPS Analog Cellular |
Form Factor: |
Self-Contained Cabinet on Casters |
Dimensions: |
28" W x 27" D x 28" H |
Installed Card 1: |
SLF3230A (qty 1) |
Installed Card 2: |
SGLF1060A (qty 1) |
Installed Card 3: |
SGLF1059A (qty 8) |
Installed Card 4: |
SGPN4018A (qty 1) |
Installed Card 5: |

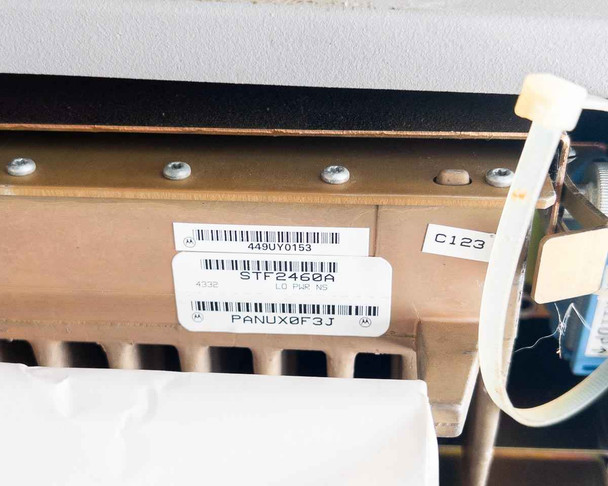

STF2460A (qty 1) |
Installed Card 6: |

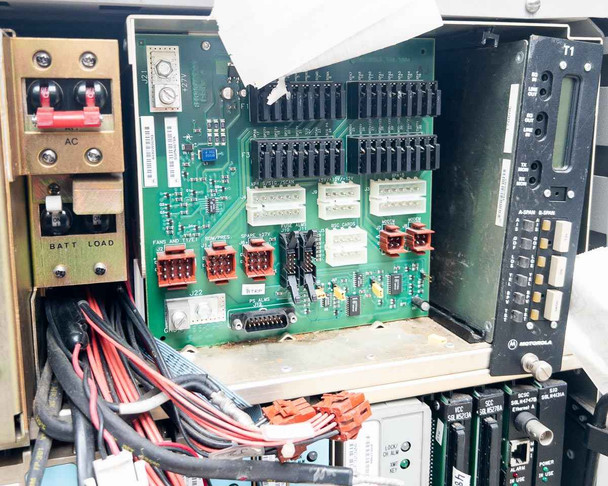

ASSY 4120 / T1 / T786AE (qty 1) |
Installed Card 7: |
SGPN4019A (qty 1) |
Installed Card 8: |

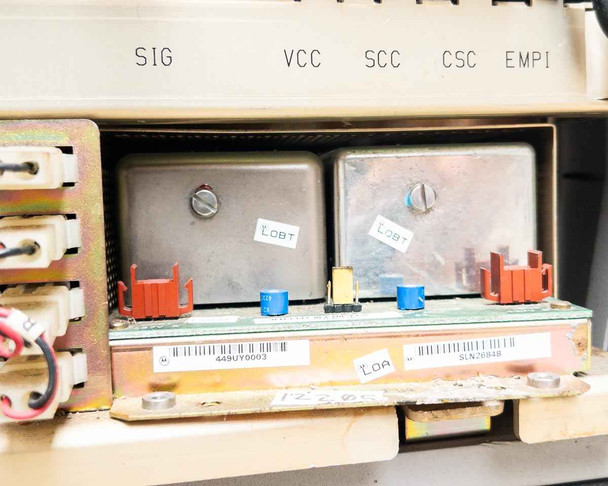

SLN2684B (qty 1) |
Installed Card 9: |
SGF4013A (qty 1) |
Power Supply: |
ABB CEAG +27VDC Output / Batt Chg module |
Tuning Modules: |
SQMF1037A (x2, labeled AGC/NKPBT, VOC slots) |
Voice Channel Slots: |
VOC1–VOC8 + SCAN/VOC visible |
Interface: |

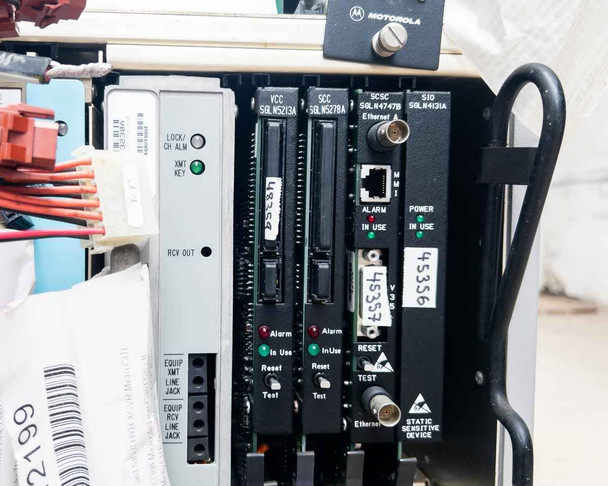

T1, Ethernet (visible on SCSC card) |
Seller Notes: |
Sold AS-IS, for parts or repair. Cannot be tested. Local pickup available. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Motorola C25HDM01H7AF Microcite HDII/NAMPS Cellular Base Station sold AS-IS for parts or repair. Cannot be tested at our facility. Exterior shows wear/scuffing; minor corrosion on RF bay hardware. All 9 cards included. Freight ship or local pickup. |
