Electronic Test
Electronic test is a category focused on evaluating the functionality and performance of electronic devices. This includes testing methods such as automated testing, manual testing, and simulation to ensure that electronic components meet quality standards and specifications. Electronic test equipment like oscilloscopes, multimeters, and signal generators are commonly used to measure and analyze electronic signals. This category covers a wide range of industries including telecommunications, automotive, aerospace, and consumer electronics. Whether testing PCBs, integrated circuits, or electronic systems, Electronic Test plays a crucial role in verifying the proper operation and reliability of electronic devices.
-
Keithley 61300 ERB-24 Relay Board I/O Rackmount Crydom D2425 SSR Corcom EMI
Keithley
$450.00Was: $900.00Keithley 61300 ERB-24 Relay Board I/O Rackmount Crydom D2425 SSR Corcom EMI The Keithley 61300 is a 24-channel relay board I/O assembly (ERB-24) housed in a custom rackmount enclosure. The unit integrates a relay switching board (62200 / 9205/B), dual...38734- SKU:
- 38734
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 41.00 LBS
- Brand:
- Keithley
- Model:
- 61300
- MPN:
- 9203/E
- Secondary Model:
- ERB-24
- Board Part Number:
- 62200 / 9205/B
- Type:
- Relay Board I/O in Rackmount Enclosure
- SKU:
- 38734
- Form Factor:
- Rackmount
- Number of Relay Channels:
- 24
- Solid State Relay:
- Crydom D2425 — 240V AC Output, 25A, 3-32V DC Input
- EMI Filter:
- Corcom 10VK7 — 10A, 120/250V, 50-60Hz
- Power Supply 1:
- ACDC Electronic PS 15N4.5 — 15V DC at 4.5A
- Power Supply 2:
- ACDC Electronic PS 5N9-1 — 5V DC at 9A
- Output Voltage 1:
- 15V DC
- Output Current 1:
- 4.5A
- Output Voltage 2:
- 5V DC
- Output Current 2:
- 9A
- SSR Output Rating:
- 240V AC, 25A
- SSR Input Range:
- 3–32V DC
- EMI Filter Rating:
- 10A, 120/250V, 50-60Hz
- Front Panel Indicators:
- AC Power, Arc Power, CCD Shutter, Mask Vacuum, Arc Lamp Shutter
- Rear Connectors:
- J1 IEC inlet, J2 AC outlet, J4 D-sub, J5-J10 multi-pin circular
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes dual ACDC power supplies, Crydom D2425 SSR, Corcom 10VK7 EMI filter, relay board 62200
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Keithley 61300 ERB-24 relay board rackmount enclosure. Inspected, in good used condition. Pulled from a working environment where it was in use and functional. Internal components intact. Photos available.
$450.00Was: $900.00 -
Keithley 61300 ERB-24 Relay I/O 9540/P 9535/C Astec Dual Power Supplies Rack
Keithley
$500.00Was: $1,000.00Keithley 61300 ERB-24 Relay I/O 9540/P 9535/C Astec Dual Power Supplies Rack This is a Keithley 61300 relay I/O expansion system housed in a black rackmount enclosure. It is built around the ERB-24 relay I/O board (assembly 9540/P), which provides 24...38733- SKU:
- 38733
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 41.00 LBS
- Brand:
- Keithley
- Model:
- 61300
- MPN:
- 9540/P
- Secondary Model:
- 9535/C
- SKU:
- 38733
- Type:
- Relay I/O Expansion System
- Form Factor:
- Rackmount Enclosure
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Includes ERB-24 board (9540/P), 9535/C board, Astec dual PSUs, Crydom D2425 SSR, Corcom 10VK7 EMI filter
- Relay Board:
- ERB-24, 9540/P
- Interface Board:
- 62200 9535/C, PC 6222 Rev C (c.1984)
- Power Supply 1:
- Astec ACV5N9-1, Output: 5V / 9.0A
- Power Supply 2:
- Astec ACV12N5, Output: 12V / 5.1A
- EMI Filter:
- Corcom 10VK7, 10A, 120/250V, 50-60Hz
- Solid State Relay:
- Crydom D2425, 240V AC Output, 25A, Input 3-32V DC
- Power Input:
- IEC C14 inlet, 15A fuse, 120/250V
- Outputs Included:
- Isolated Ground duplex AC outlet on rear panel
- Connectors (Rear):
- J4 (50-pin ribbon), J5, J6 (XLR), J7, J8, J9, J10 (multi-pin circular)
- Front Panel Indicators:
- AC Power, Arc Power, CCD Shutter, Mask Vacuum, Arc Lamp Shutter LEDs
- Number of Relay Channels:
- 24
- Application:
- Relay I/O expansion, photolithography / semiconductor process control
- Country/Region of Manufacture:
- USA / Mexico (components)
- Condition Notes:
- Keithley 61300 ERB-24 Relay I/O system inspected and in good condition. All major components present: 9540/P ERB-24 board, 9535/C board, Astec dual PSUs, Crydom D2425 SSR, Corcom 10VK7 EMI filter.
$500.00Was: $1,000.00 -

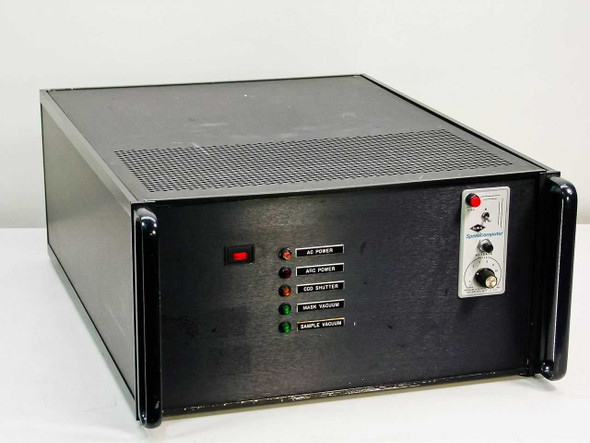

ILEX Speedcomputer Arc Lamp Exposure Controller CCD Shutter Vacuum Control SSR
Keithley
$208.00Was: $800.00ILEX Speedcomputer Arc Lamp Exposure Controller CCD Shutter Vacuum Control SSRThis is a custom-built rackmount/benchtop control enclosure built around the ILEX Speedcomputer, manufactured by ILEX Optical Co. Inc. of Rochester, NY. The enclosure...38732- SKU:
- 38732
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 39.00 LBS
- Brand:
- ILEX Optical Co. Inc.
- Model:
- Speedcomputer
- MPN:
- 62200 9235/B
- Type:
- Arc Lamp Exposure Controller
- SKU:
- 38732
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Includes dual ACDC power supplies, Crydom D2425 SSR, Corcom EMI filter, two I/O boards
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop / Rackmount Enclosure

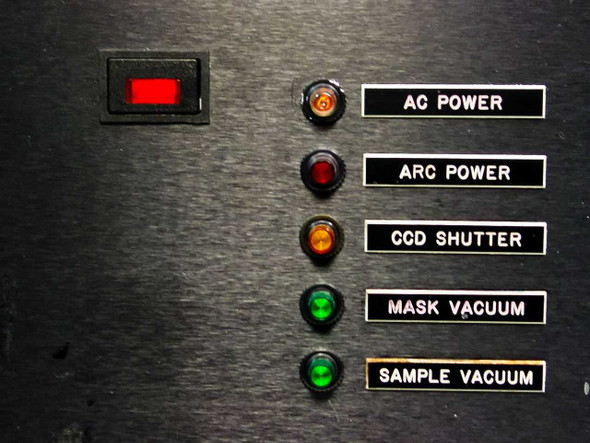

- Front Panel Indicators:
- AC Power, Arc Power, CCD Shutter, Mask Vacuum, Sample Vacuum
- Shutter Control:
- ILEX Speedcomputer – Actuate No. 1, 2 & 3 dial, toggle B
- Solid State Relay:
- Crydom D2425 – 240V AC Output, 25A, 3-32VDC Input
- EMI Filter:
- Corcom 10VK7 – 10A, 125/250V, 50-60Hz
- Power Supply 1:
- ACDC Electronic PS 12N5 – 12V DC at 5A Output
- Power Supply 2:
- ACDC Electronic PS 5N9-1 – 5V DC at 9A Output
- I/O Boards:
- Two boards, part number 62200 9235/B
- Rear Connectors:
- Multi-pin circular (J4–J10), dual DB-style (J3), IEC power inlet
- AC Outlet:
- Isolated ground duplex outlet on rear panel
- Power Input:
- IEC C14 inlet, 125/250V 50-60Hz
- Application:
- Arc lamp exposure control, photolithography, mask aligner, CCD imaging
- Voltage Output 1:
- 12V DC at 5A
- Voltage Output 2:
- 5V DC at 9A
- SSR Output Rating:
- 240V AC, 25A
- SSR Input Range:
- 3-32V DC
- Condition Notes:
- This ILEX Speedcomputer arc lamp exposure controller has been inspected and is in good used condition. Enclosure shows normal wear. All internal components present including dual ACDC power supplies, Crydom D2425 SSR, Corcom EMI filter, and two I/O
$208.00Was: $800.00 -

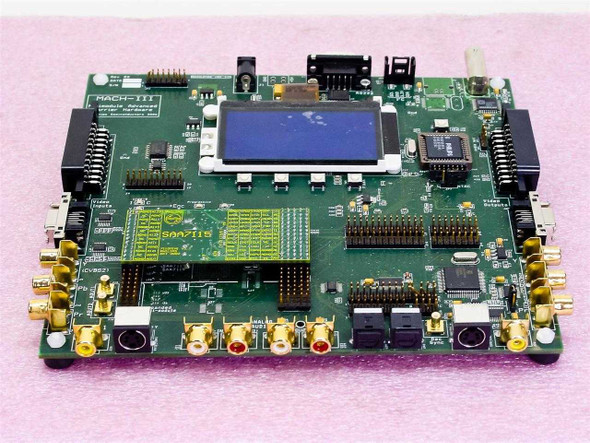

Philips Semiconductors MACH-III Minimodule Advanced Carrier Hardware Dev Board
Philips Semiconductors
$225.00Was: $450.00Philips Semiconductors MACH-III Minimodule Advanced Carrier Hardware Dev BoardDevelopment board for the Philips MACH-III Minimodule system, featuring an integrated LCD display and multiple connectivity options. Board only; no additional accessories...38714- SKU:
- 38714
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Philips Semiconductors
- Model:
- MACH-III
- MPN:
- MACH-III Minimodule Advanced Carrier Hardware
- Type:
- Minimodule Advanced Carrier Hardware Development Board
- SKU:
- 38714
- Condition:
- Used – Inspected
- Seller Notes:
- Board only; no additional accessories confirmed included
- Country/Region of Manufacture:
- Netherlands
- Form Factor:
- PCB / Development Board
- Display:
- Integrated LCD module
- Connector Types:
- SMA (RF), DB9 (serial), SCSI-style edge connectors, pin headers
- Interface Type:
- SMA RF, DB9 Serial, GPIO Headers, Edge Connectors
- Application:
- Embedded / Semiconductor Development and Evaluation
- Year / Copyright Date:
- 2006
- Compatible With:
- Philips Semiconductors MACH-III Minimodule systems
- PCB Color:
- Green
- Notable Components:
- FPGA array, LCD display, SMA connectors, Philips IC
- Condition Notes:
- Philips Semiconductors MACH-III Minimodule Advanced Carrier Hardware dev board. Inspected, in good used condition. PCB clean, LCD and connectors intact, light handling wear. Please contact us with any questions.
$225.00Was: $450.00 -

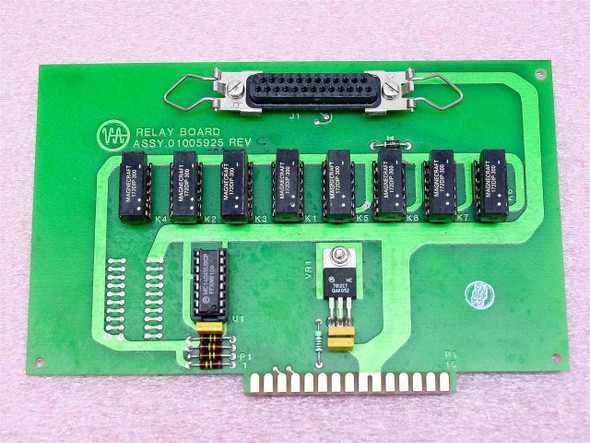

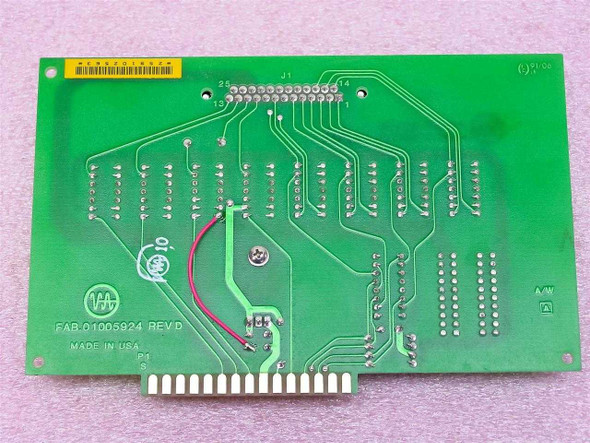

Varian Relay Board ASSY 01005925 Rev C PCB Magnecraft 172DIP-300 Relays
Varian
$65.00Was: $125.00Varian Relay Board ASSY 01005925 Rev C PCB Magnecraft 172DIP-300 RelaysPCB relay board assembly used in Varian industrial and telecom equipment. Contains seven Magnecraft 172DIP-300 relays for signal switching and control functions.Specifications &...38701- SKU:
- 38701
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Varian
- Model:
- 01005925
- MPN:
- 01005925
- Secondary Model:
- FAB-01005924
- Type:
- Relay PCB Board
- SKU:
- 38701
- Revision:
- Rev C
- FAB Revision:
- Rev D
- Assembly Number:
- ASSY.01005925
- FAB Number:
- FAB-01005924
- Relay Type:
- Magnecraft 172DIP-300
- Number of Relays:
- 7
- Connector Type:
- DB25 (25-pin D-sub), edge connector
- Country/Region of Manufacture:
- United States
- Form Factor:
- PCB / Card Module
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Board only. Inspected and in good condition.
- Condition Notes:
- Varian Relay Board ASSY 01005925 Rev C has been inspected and is in good condition. PCB is clean, all seven Magnecraft 172DIP-300 relays present. DB25 and edge connectors intact. Light handling wear only.
$65.00Was: $125.00 -
Magnetic Peripherals 47293669 Industrial Power Supply Module Multi-Output
Magnetic Peripherals
$300.00Was: $600.00Magnetic Peripherals 47293669 Industrial Power Supply Module Multi-OutputMulti-output industrial power supply module manufactured by Magnetic Peripherals Inc. (Control Data Corporation subsidiary). Provides eight switched DC outputs via rear/side...38631- SKU:
- 38631
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 78.00 LBS
- Brand:
- Magnetic Peripherals Inc.
- Model:
- 47293669
- MPN:
- 47293669
- Type:
- Multi-Output Industrial Power Supply Module
- SKU:
- 38631
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes attached AC power cord with twist-lock plug
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop / Chassis Mount
- Output Voltages:
- +46V, -46V, +7V, -7V, -20V, +28V (labeled on front panel)
- Circuit Breakers:
- CB9A 9A ±46V, CB9B 9A ±46V, CB10 10A -16V, CB11 10A -16V
- Control Mode:
- Local / Remote switchable
- Main Input:
- AC mains via twist-lock power cord
- Hours Meter:
- Engler electromechanical hours meter (30012 hours shown)
- Connectors:
- J2, J3, J4 (multi-pin), J6, J7 output connectors on rear/side
- Front Panel Controls:
- Main AC breakers (x2), Local/Remote switch, individual output switches
- Manufacturer Parent Company:
- Control Data Corporation (CDC)
- Compatible With:
- Control Data Corporation / Magnetic Peripherals storage systems
- Number of Outputs:
- Multiple (8+ switched DC outputs)
- Condition Notes:
- Magnetic Peripherals 47293669 Industrial Power Supply Module inspected and in good used condition. Pulled from a working environment where it was in active use and functional. Surface oxidation and wear consistent with age.
$300.00Was: $600.00 -
Varian Klystron Gen II Earth Station Display Control Patch Board Set 01000048
Varian
$225.00Was: $450.00Varian Klystron Gen II Earth Station Display Control Patch Board Set 01000048 01002543 01000548This is a three-board control and display logic set for Varian Klystron Gen II satellite earth station systems. The boards manage amplifier control, status...38624- SKU:
- 38624
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 15.00 LBS
- Brand:
- Varian
- Model:
- 01002543
- MPN:
- 01002543 / 01000048 / 01000548
- Type:
- Earth Station Control & Display Logic Board Set
- SKU:
- 38624
- Display Logic Board Part Number:
- 01000048 Rev W
- Control Logic Board Part Number:
- 01002543
- Patch Panel Board Part Number:
- 01000548 Rev D
- Application:
- Satellite Earth Station / Klystron Amplifier Control
- Compatible With:
- Varian Klystron Gen II Earth Station
- Form Factor:
- Card / Module (PCB Assembly)
- Number of Boards Included:
- 3
- Board 1:
- Display Logic Board, Assy 01000048 Rev W
- Board 2:
- Control Logic Board, Assy 01002543
- Board 3:
- Patch Panel Board, Assy 01000548 Rev D
- Seller Notes:
- Set of 3 boards: Display Logic, Control Logic, and Patch Panel from Varian Klystron Gen II
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Varian Klystron Gen II Earth Station board set (01000048, 01002543, 01000548) inspected and in good condition. Normal handling wear. PCBs, components, and connectors appear intact. No obvious damage.
- Secondary Model:
- 01000048 / 01000548
- Includes:
- Display Logic Board, Control Logic Board, Patch Panel Board
- Display Logic Board Part No.:
- 01000048 Rev M
- Control Logic Board Part No.:
- 01002543
- Patch Panel Board Part No.:
- 01000548 Rev D
- PCB Color:
- Red (Display/Control); Green (Patch Panel)
- Connector Types:
- Edge connector, D-sub, ribbon/card-edge connectors
$225.00Was: $450.00 -
Schlage Electronics 3708A 24VDC Battery Charger Power Supply 115VAC Input
Schlage Electronics
$75.00Was: $150.00Schlage Electronics 3708A 24VDC Battery Charger Power Supply 115VAC InputThis is a 24VDC battery charger and power supply unit designed for Schlage Electronics access control systems. It converts 115VAC input to regulated 24V DC output for charging and...38593- SKU:
- 38593
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 28.00 LBS
- Brand:
- Schlage Electronics
- Model:
- 3708A
- MPN:
- 3708 A
- Type:
- Power Supply / 24VDC Battery Charger
- SKU:
- 38593
- Input Voltage:
- 115 VAC
- Output Voltage:
- 24V DC
- Battery Fuse Rating:
- 3AG / 10 AMP
- AC Fuse Rating:
- 3AG / 2 AMP
- UL Listing:
- UL Listed 912Z Power Supply
- CSA Listing:
- CSA LR53781
- Country/Region of Manufacture:
- United States
- Form Factor:
- Enclosed / Wall-Mount or Panel-Mount
- Power Requirements:
- 115 VAC Input
- Indicators:
- PWR, BATT CONN, BATT FULL VOLTS LEDs
- Output Terminals:
- 24V BATT, + LOCK PWR, - LOCK PWR
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes attached output wiring harness. No additional accessories.
- Compatible With:
- Schlage Electronics access control systems
- Condition Notes:
- Schlage Electronics 3708A 24VDC battery charger power supply. Inspected, in good used condition. Pulled from a working environment where it was in use and functional. Output wiring attached.
$75.00Was: $150.00
