Varian Relay Board ASSY 01005925 Rev C PCB Magnecraft 172DIP-300 Relays

(No reviews yet) Write a Review
SKU:
38701
MPN:
1005925
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Varian Relay Board ASSY 01005925 Rev C – front view showing seven Magnecraft 172DIP-300 DIP relays, DB25 connector, and edge connector

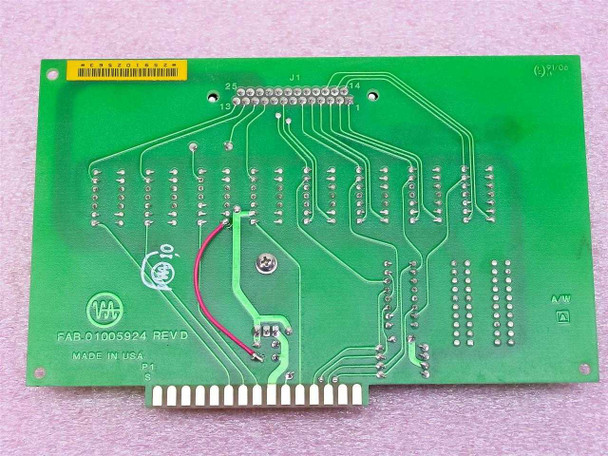

  • Varian Relay Board 01005925 – PCB rear/solder side showing FAB-01005924 Rev D Made in USA markings and edge connector
  • Varian Relay Board ASSY 01005925 Rev C – close-up of board silkscreen label and Magnecraft 172DIP-300 relay ICs
$65.00
Was: $125.00
Current Stock: 1

Sold Out

Description

Varian Relay Board ASSY 01005925 Rev C PCB Magnecraft 172DIP-300 Relays

PCB relay board assembly used in Varian industrial and telecom equipment. Contains seven Magnecraft 172DIP-300 relays for signal switching and control functions.

Specifications & What's Included

  • Model: ASSY 01005925 Rev C
  • Relay Type: Magnecraft 172DIP-300 (7 relays)
  • Connectors: DB25 (25-pin D-sub) and edge connector
  • Form Factor: PCB card module
  • Manufactured: United States
  • Board only; connectors intact

Applications

Relay boards of this type were used in Varian telecommunications and industrial control systems for signal routing, equipment switching, and logic control. These modules typically interface with larger control systems via the DB25 connector to manage multiple relay-controlled circuits. Commonly found in legacy test equipment, telecommunications infrastructure, and industrial automation platforms from the 1980s-2000s era.

Condition: Used
This Varian Relay Board (ASSY 01005925, Rev C) has been inspected and is in good condition. The PCB is clean with no visible damage, broken traces, or missing components. All seven Magnecraft 172DIP-300 relays are present and seated. The DB25 connector and edge connector both appear intact. Normal light handling wear is present on the board. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Varian
Model:
01005925
MPN:
01005925
Secondary Model:
FAB-01005924
Type:
Relay PCB Board
SKU:
38701
Revision:
Rev C
FAB Revision:
Rev D
Assembly Number:
ASSY.01005925
FAB Number:
FAB-01005924
Relay Type:
Magnecraft 172DIP-300
Number of Relays:
7
Connector Type:
DB25 (25-pin D-sub), edge connector
Country/Region of Manufacture:
United States
Form Factor:
PCB / Card Module
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Board only. Inspected and in good condition.
Condition Notes:
Varian Relay Board ASSY 01005925 Rev C has been inspected and is in good condition. PCB is clean, all seven Magnecraft 172DIP-300 relays present. DB25 and edge connectors intact. Light handling wear only.
