Data Products

Dataproducts Regulator Assy 261564-001 Rev C PCB Board 5630107-02

(No reviews yet) Write a Review
SKU:
28521
MPN:
261564-001
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Dataproducts Regulator Assy 261564-001 PCB board — component side showing metal-capped power transistors and green PCB with edge connector
  • Dataproducts Regulator Assy 261564-001 Rev C — close-up of PCB silkscreen label showing model number and revision
  • Dataproducts Regulator Assy 261564-001 — solder side of PCB showing P/N 5630107-02 handwritten in marker and PWB No. 321552-001 Rev B printed label
$30.00
Was: $60.00
Current Stock: 1

Sold Out

Description

Dataproducts Regulator Assy 261564-001 Rev C PCB Board 5630107-02

Regulator assembly PCB board for Dataproducts printer and peripheral systems. This board manages power regulation functions within compatible equipment.

Specifications & What's Included

  • Model: 261564-001 Rev C
  • Secondary Model: 5630107-02
  • PCB Part Number: 321552-001 Rev B
  • Type: Regulator Assembly PCB Card/Module
  • Manufacturer: Dataproducts (USA)
  • Board only; no additional accessories included

Applications

Regulator assemblies of this type were used in Dataproducts printer systems and related peripherals throughout industrial and office environments. The board handles voltage regulation and power distribution functions critical to equipment operation. This assembly is compatible with Dataproducts printer systems that use the 261564-001 designation.

Condition: Used
This Dataproducts Regulator Assembly PCB board (261564-001 Rev C) has been inspected and is in good used condition. The board shows normal light wear consistent with prior service use. No visible damage, burnt components, or broken traces are noted. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Dataproducts
Model:
261564-001
MPN:
261564-001
Secondary Model:
5630107-02
PCB Part Number:
321552-001 Rev B
Revision:
Rev C
Type:
Regulator Assembly PCB Board
SKU:
28521
Condition:
Used – Inspected and Pulled from Working Environment
Seller Notes:
Board only; no additional accessories included.
Form Factor:
PCB Card / Module
Compatible With:
Dataproducts printer/peripheral systems
Country/Region of Manufacture:
United States
Condition Notes:
Dataproducts Regulator Assy 261564-001 Rev C PCB board inspected and in good used condition. Normal light wear; no visible damage or burnt components noted.
View AllClose

Related Products

Related Products

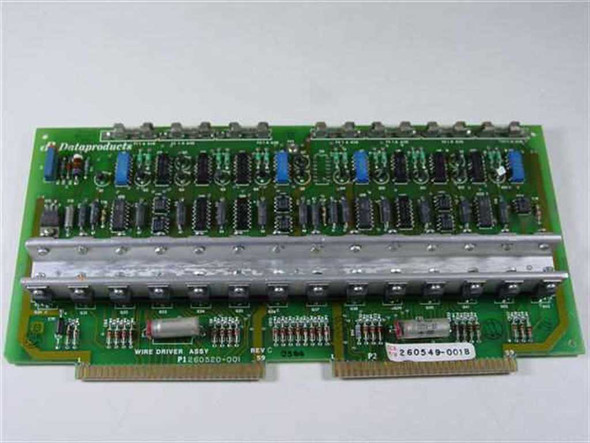

Dataproducts 260549-001 Wire Driver Finger Card PCB assembly top view showing full board layout with transistor array and edge connector Dataproducts 260549-001B Wire Driver Finger Card close-up of CCA label showing part number 260549-001B and capacitor components
