Dataproducts 260674-002 C1 Serial I/F Assy PCB Card Rev B 272142-001

(No reviews yet) Write a Review
SKU:
28510
MPN:
260674-002
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

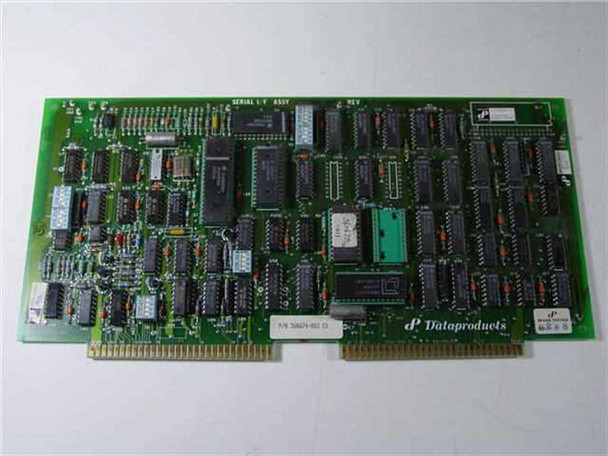

  • Dataproducts 260674-002 Serial I/F PCB card – full top-side component view showing gold finger edge connector and Dataproducts logo
  • Dataproducts 260674-002 PCB card – close-up of P/N label showing 260674-002 C1 revision marking
  • Dataproducts Serial I/F Assy PCB – close-up of board silkscreen showing SERIAL I/F ASSY 272142-001 REV B and National Semiconductor DM74154N chip
$25.00
Was: $50.00
Current Stock: 1

Sold Out

Description

Dataproducts 260674-002 C1 Serial I/F Assy PCB Card Rev B 272142-001

Serial interface PCB card designed for Dataproducts printers and peripheral systems. This gold finger module provides serial communication functionality for compatible equipment.

Specifications & What's Included

  • Model: 260674-002 (Rev B, PCB Revision C1)
  • Secondary Model: 272142-001
  • Type: Serial Interface PCB Card / Gold Finger Module
  • Chipset: National Semiconductor DM74154N, BB620A+
  • Card only; no cables or accessories included
  • Manufactured in United States

Applications

This serial interface card was used in Dataproducts line printers and data processing systems common in the 1980s and 1990s. The card interfaces peripheral devices and host systems via serial communication protocols. Compatible with Dataproducts printer models and industrial telecom equipment of that era that utilized modular PCB card architecture.

Condition: Used
This Dataproducts 260674-002 Serial Interface PCB card has been inspected and appears to be in good condition. The board shows normal handling wear consistent with prior service use. The gold finger edge connector looks clean, and the PCB and components show no obvious damage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Dataproducts
Model:
260674-002
MPN:
260674-002
Secondary Model:
272142-001
Hardware Revision:
Rev B
PCB Revision:
C1
Type:
Serial Interface PCB Card
Form Factor:
Gold Finger Card / PCB Module
Interface Type:
Serial
Chipset:
National Semiconductor DM74154N; BB620A+
Compatible With:
Dataproducts printers and peripheral systems
Condition:
Used – Inspected
SKU:
28510
Seller Notes:
Card only; no cables or accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
Dataproducts 260674-002 Serial I/F PCB card. Inspected and in good condition. Normal handling wear from prior use. Gold finger connector looks clean, no obvious damage to board or components.
