Description

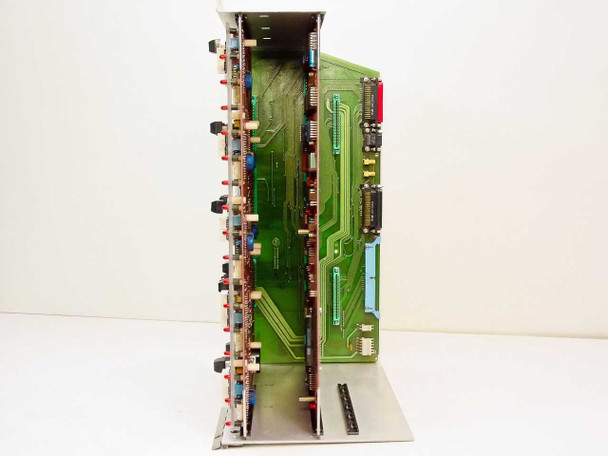

Varian Klystron Gen II Earth Station Display Control Patch Board Set 01000048 01002543 01000548
This is a three-board control and display logic set for Varian Klystron Gen II satellite earth station systems. The boards manage amplifier control, status display, and signal routing functions.
Specifications & What's Included
- Display Logic Board (01000048 Rev M)
- Control Logic Board (01002543)

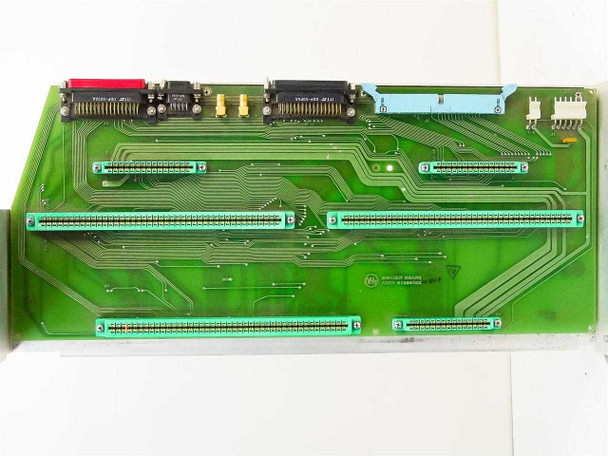

- Patch Panel Board (01000548 Rev D)
- PCB assembly format with edge connectors, D-sub, and ribbon connectors
- Red and green PCB color coding
- Manufactured in the United States
Applications
These boards were used in Varian Klystron Gen II earth station installations for satellite communications ground stations. The control logic manages klystron amplifier parameters and operating modes, while the display logic provides operator interface feedback. The patch panel enables signal routing configuration. This equipment type is found in legacy telecom and broadcast satellite uplink facilities.
Condition: Used
This Varian Klystron Gen II Earth Station board set — comprising the Display Logic Board (01000048 Rev M), Control Logic Board (01002543), and Patch Panel Board (01000548 Rev D) — has been inspected and is in good condition. The boards show normal handling and storage wear consistent with removed surplus equipment. PCB surfaces, components, and connectors appear intact with no obvious physical damage visible in the photos. The Patch Panel Board retains its battery. Please view our photo set and contact us if you have any questions.
This Varian Klystron Gen II Earth Station board set — comprising the Display Logic Board (01000048 Rev M), Control Logic Board (01002543), and Patch Panel Board (01000548 Rev D) — has been inspected and is in good condition. The boards show normal handling and storage wear consistent with removed surplus equipment. PCB surfaces, components, and connectors appear intact with no obvious physical damage visible in the photos. The Patch Panel Board retains its battery. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Varian |
Model: |
01002543 |
MPN: |
01002543 / 01000048 / 01000548 |
Type: |
Earth Station Control & Display Logic Board Set |
SKU: |
38624 |
Display Logic Board Part Number: |
01000048 Rev W |
Control Logic Board Part Number: |
01002543 |
Patch Panel Board Part Number: |
01000548 Rev D |
Application: |
Satellite Earth Station / Klystron Amplifier Control |
Compatible With: |
Varian Klystron Gen II Earth Station |
Form Factor: |
Card / Module (PCB Assembly) |
Number of Boards Included: |
3 |
Board 1: |
Display Logic Board, Assy 01000048 Rev W |
Board 2: |
Control Logic Board, Assy 01002543 |
Board 3: |
Patch Panel Board, Assy 01000548 Rev D |
Seller Notes: |
Set of 3 boards: Display Logic, Control Logic, and Patch Panel from Varian Klystron Gen II |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Varian Klystron Gen II Earth Station board set (01000048, 01002543, 01000548) inspected and in good condition. Normal handling wear. PCBs, components, and connectors appear intact. No obvious damage. |
Secondary Model: |
01000048 / 01000548 |
Includes: |
Display Logic Board, Control Logic Board, Patch Panel Board |
Display Logic Board Part No.: |
01000048 Rev M |
Control Logic Board Part No.: |
01002543 |
Patch Panel Board Part No.: |
01000548 Rev D |
PCB Color: |
Red (Display/Control); Green (Patch Panel) |
Connector Types: |
Edge connector, D-sub, ribbon/card-edge connectors |
