Electronic Test
Electronic test is a category focused on evaluating the functionality and performance of electronic devices. This includes testing methods such as automated testing, manual testing, and simulation to ensure that electronic components meet quality standards and specifications. Electronic test equipment like oscilloscopes, multimeters, and signal generators are commonly used to measure and analyze electronic signals. This category covers a wide range of industries including telecommunications, automotive, aerospace, and consumer electronics. Whether testing PCBs, integrated circuits, or electronic systems, Electronic Test plays a crucial role in verifying the proper operation and reliability of electronic devices.
-
Precise Sensors 111-2-1000-01-G-35-10-B6 Pressure Transducer 0-1000 PSIG
Precise Sensors
$95.00Was: $200.00Precise Sensors 111-2-1000-01-G-35-10-B6 Pressure Transducer 0-1000 PSIGThe Precise Sensors 111-2-1000-01-G-35-10-B6 is a gauge pressure transducer with a 0–1000 PSIG measurement range. It features a compact, rugged stainless steel body with a threaded...39242- SKU:
- 39242
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Precise Sensors
- Model:
- 111-2-1000-01-G-35-10-B6
- MPN:
- 111-2-1000-01-G-35-10-B6
- Type:
- Pressure Transducer
- SKU:
- 39242
- Pressure Range:
- 0-1000 PSIG
- Pressure Type:
- Gauge (PSIG)
- Output Connector:
- 6-pin circular connector
- Process Connection:
- Male threaded port (front)
- Body Material:
- Stainless Steel
- Manufacturer Location:
- Monrovia, CA 91016
- Country/Region of Manufacture:
- United States
- Form Factor:
- Inline / In-line body
- Condition:
- Used – Inspected and Pulled from Working Environment
- Seller Notes:
- Transducer only; no additional accessories included.
- Condition Notes:
- Precise Sensors 111-2-1000-01-G-35-10-B6 0-1000 PSIG pressure transducer. Inspected; good used condition. Stainless body shows minor scuffing. Connector pins clean and intact. No damage to process port or body.
$95.00Was: $200.00 -

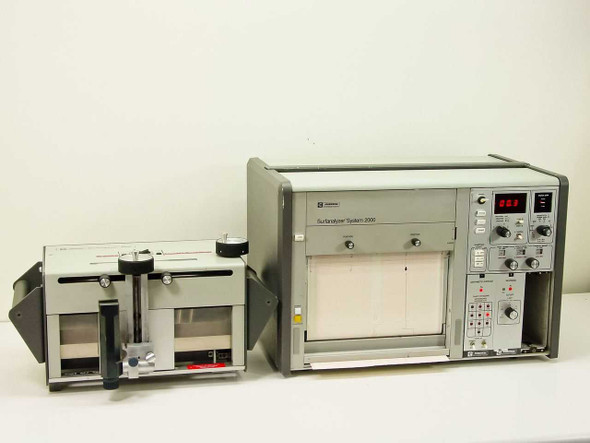

Federal Products EMD-6000 Surfanalyzer 600 & System 2000 25-2020-00 Surface
Federal
$800.00Was: $1,600.00Federal Products EMD-6000 Surfanalyzer 600 & System 2000 25-2020-00 Surface Roughness AnalyzerTwo-unit benchtop system for measuring surface roughness, waviness, and profile characteristics in manufacturing quality control. The EMD-6000 Surfanalyzer 600...39232- SKU:
- 39232
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 190.00 LBS
- Brand:
- Federal Products Corp.
- Model:
- EMD-6000
- Secondary Model:
- 25-2020-00
- MPN:
- EMD-6000 B10
- Product Line:
- Surfanalyzer 600 / Surfanalyzer System 2000
- Type:
- Surface Roughness Analyzer / Profilometer
- SKU:
- 39232
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Two-unit system: Surfanalyzer 600 (EMD-6000) + System 2000 (25-2020-00); includes interconnect cable
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop
- Power Requirements (EMD-6000):
- 115V, 60Hz, 10W
- Power Requirements (25-2020-00):
- 115V, 60Hz, 250W
- Controller Fuse Rating:
- 1/4A @ 115V / 1/8A @ 230V, SLO-BLO
- Measurement Type:
- Surface Roughness and Waviness (Ra / CLA)
- Measurement Parameters:
- Ra (CLA), Waviness (W), Profile, Roll-Off
- Roughness Cutoff:
- 0.025, 0.076, 0.25, 0.76 mm (selectable)
- Waviness Cutoff:
- 0.076, 0.25, 0.76 mm (selectable)
- Traverse Speed:
- Slow 0.254 mm/sec / Fast 2.54 mm/sec
- Chart Speed:
- Selectable in/sec and mm/sec
- Sensitivity / Stylus Position:
- 100, 200, 500, 1K µin/div; 0.02–5 µm/div
- Display Type:
- LED digital readout + integrated chart recorder
- Recorder Channels:
- Channel A and Channel B
- Rear Connectors (EMD-6000):
- PROBE, INPUT PROBE/AUX switch, AUX (DB15), TRAVERSE
- Rear Connectors (25-2020-00):
- PRINT, INPUT, AUX (DB connectors); EXT (card-edge)
- ALM Compatible:
- Yes
- Schematic Reference:
- 289868
- Application:
- Surface finish and roughness measurement in manufacturing QC
- Compatible With:
- Federal Products Surfanalyzer probes and stylus assemblies
- Condition Notes:
- Federal Products EMD-6000 Surfanalyzer 600 & System 2000 (25-2020-00) surface roughness analyzer. Powered on and inspected — appears in good working condition. Both units power on. Interconnect cable included. Normal lab wear. See photos.
$800.00Was: $1,600.00 -

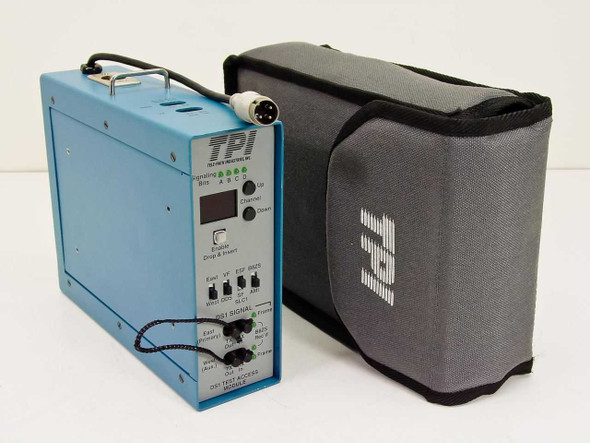

Tele-Path Industries 108-DS1 DS1 Test Access Module ESF B8ZS AMI TPI w/ Case
Tele-Path Industries
$55.00Was: $100.00Tele-Path Industries 108-DS1 DS1 Test Access Module ESF B8ZS AMI TPI w/ CasePortable DS1/T1 test access module for monitoring and troubleshooting digital signal circuits. Provides drop-and-insert functionality with dual TX/RX access on East (primary) and...39217- SKU:
- 39217
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Tele-Path Industries
- Model:
- 108-DS1
- MPN:
- 108-DS1
- SKU:
- 39217
- Type:
- DS1 Test Access Module
- Condition:
- Used – Inspected
- Seller Notes:
- Includes gray TPI branded carry case
- Form Factor:
- Portable / Handheld
- Country/Region of Manufacture:
- United States
- Interface Type:
- DS1 / T1
- Line Coding:
- ESF, SF, B8ZS, AMI, DDS, VF, SLC1
- Signal Access:
- East (Primary) and West (Aux.) TX/RX
- Function:
- Drop & Insert, DS1 Signal Monitoring
- Signaling:
- A, B, C, D Signaling Bits with LED indicators
- Channel Selection:
- Up/Down Channel buttons with LED display
- Connector Type:
- Mini DIN power, bantam jacks (DS1 access)
- Compatible With:
- T1/DS1 circuits, East/West span access
- Includes:
- Gray TPI carry case
- Condition Notes:
- Tele-Path Industries 108-DS1 DS1 Test Access Module inspected and in good used condition. Blue enclosure shows light wear. All front-panel controls and ports appear intact. Includes gray TPI carry case. Please contact us with any questions.
$55.00Was: $100.00 -
Filter Concepts 3E20-F 3X20A EMI Filter 250/440VAC 50/60Hz Three Phase
Filter Concepts
$85.00Was: $175.00Filter Concepts 3E20-F 3X20A EMI Filter 250/440VAC 50/60Hz Three PhaseThe Filter Concepts 3E20-F is a three-phase EMI (electromagnetic interference) line filter rated at 20 amps per phase. It is designed to suppress conducted electromagnetic noise on AC...39159- SKU:
- 39159
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 6.00 LBS
- Brand:
- Filter Concepts
- Model:
- 3E20-F
- MPN:
- 3E20 F
- Type:
- Three-Phase EMI / RFI Line Filter
- SKU:
- 39159
- Voltage Rating:
- 250/440VAC
- Current Rating:
- 20A per phase (3x20A)
- Phase:
- Three Phase
- Frequency:
- 50/60Hz
- Number of Phases:
- 3
- Connector / Termination Type:
- Screw terminals (N, A, B, C)
- Certifications:
- UL Listed, CSA Listed
- Date Code:
- 9744 / 7143
- Seller Notes:
- New open-box unit in original cardboard packaging.
- Country/Region of Manufacture:
- United States
- Condition:
- New – Open Box
- Condition Notes:
- Filter Concepts 3E20-F 3X20A EMI Filter. New and unused; original cardboard packaging shows storage wear but unit is uninstalled and in new condition. Screw terminals clean and undamaged.
$85.00Was: $175.00 -

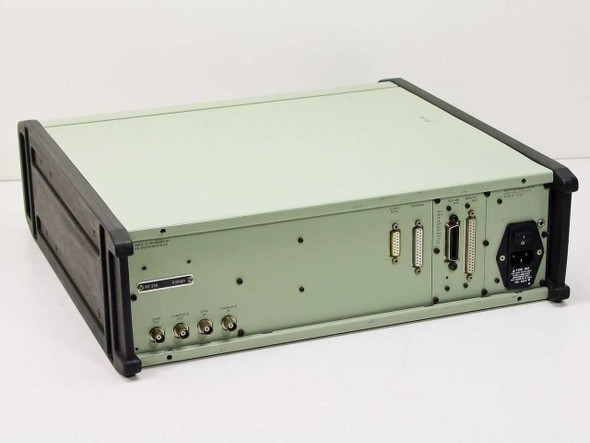

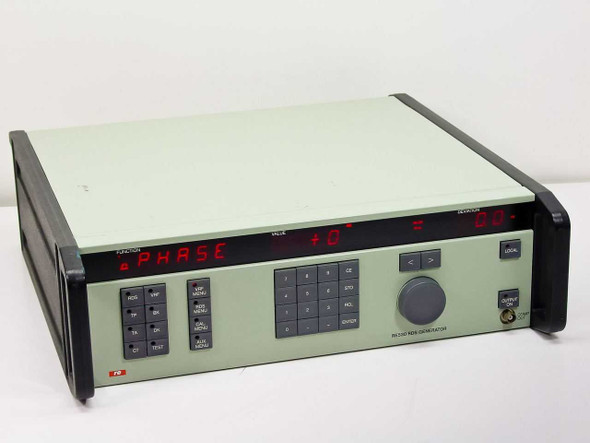

Radio Electronics RE530 RDS Generator IEEE-488 GPIB Memory Bus BNC 220V
Radio Electronics
$550.00Was: $1,100.00Radio Electronics RE530 RDS Generator IEEE-488 GPIB Memory Bus BNC 220VThe RE530 is a benchtop RDS (Radio Data System) generator used in FM broadcast facilities for testing and verifying RDS signal transmission, encoding, and compliance. This unit...38968- SKU:
- 38968
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 40.00 LBS
- Brand:
- RE Instruments AS
- Model:
- RE530
- MPN:
- RE530
- Type:
- RDS Generator
- SKU:
- 38968
- Country/Region of Manufacture:
- Denmark
- Form Factor:
- Benchtop
- Power Requirements:
- 220V / 110-120V AC, 47-63Hz, 70VA
- Interface Type:
- IEEE-488 (GPIB), Memory Bus, Clock/Data, Terminal
- Output Connectors:
- BNC (Composite, Sync, Component)
- Function Keys:
- RDS, VRF, TP, BK, TA, DK, CT, TEST
- Menu Keys:
- VRF Menu, RDS Menu, CAL Menu, AUX Menu
- Display:
- LED: Function (Phase), Value, Deviation (kHz)
- Serial Number (Label):
- R00N01
- Seller Notes:
- Powers on with display illumination. IEEE-488 and Memory Bus interfaces installed.
- Review Status:
- Auto-Approved (needs review) 2026-07-04
- Condition Notes:
- RE530 RDS Generator powers on with display lit. Pulled from working broadcast environment. Light cosmetic wear, buttons and connectors intact. Not fully tested. As-inspected condition.
- Display Type:
- LED Indicators
- LED Indicators:
- Function (Phase), Value, Deviation (kHz)
- Serial Number:
- R00N01
- Condition:
- Used – Pulled from Working Environment
$550.00Was: $1,100.00 -
MSA 96104 Cell Assembly Battery Reference Voltage Source SPC 083 REV 0 Gas
MSA
$50.00Was: $100.00MSA 96104 Cell Assembly Battery Reference Voltage Source SPC 083 REV 0 Gas DetectorReference voltage source cell assembly for MSA gas detection instruments. Provides calibration and functional reference signals for detector operation and validation...38871- SKU:
- 38871
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- MSA
- Model:
- 96104
- MPN:
- 96104
- Secondary Model:
- SPC 083 REV 0
- Type:
- Cell Assembly / Battery Reference Voltage Source
- SKU:
- 38871
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is. Includes dual flow tubes, multi-conductor wiring harness, and BNC-style gas port connector.
- Document Reference:
- SPC 083 REV 0 / Part No. 469022
- Application:
- MSA Gas Detection Instrument Reference Cell
- Included Accessories:
- Dual vertical flow tubes, multi-conductor harness, BNC-type gas fitting
- Form Factor:
- Freestanding Module / Bench Component
- Country/Region of Manufacture:
- United States
- Condition Notes:
- MSA 96104 Cell Assembly sold as-is for parts or repair. Appears complete with flow tubes, wiring harness, and gas connector present. Not tested, not guaranteed functional. Age-related wear visible. Please contact us with questions.
$50.00Was: $100.00 -
Heidenhain EXE 702B Encoder Interface ROD 456-900 Rotary Stage 195mm Positioner
Heidenhain
$595.00Was: $1,200.00Heidenhain EXE 702B Encoder Interface ROD 456-900 Rotary Stage 195mm PositionerThis is a complete Heidenhain rotary encoder positioning system consisting of the EXE 702B 700 Series Encoder Interface Unit, a Heidenhain ROD 456-900 rotary encoder, a custom...38838- SKU:
- 38838
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 85.00 LBS
- Brand:
- Heidenhain
- Model:
- EXE 702B
- Secondary Model:
- ROD 456-900
- MPN:
- EXE702B
- Id.Nr.:
- 225 551 02
- SKU:
- 38838
- Type:
- Rotary Encoder Interface & Positioning System
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes EXE 702B interface, ROD 456-900 encoder, 195mm rotary stage, 2x Compumotor S/SX 57-83 drives, and associated cabling
- Country/Region of Manufacture:
- Germany
- Power Requirements:
- 100/120/140V ~T0.315A or 200/220/240V ~T0.160A, 50-60Hz
- Input Voltage:
- 100-240V AC, 50-60Hz
- Form Factor:
- Benchtop / Freestanding
- Interface Type:
- DB9 Serial, Multi-pin circular connector, DB25
- Encoder Series:
- 700 Series
- Stage Diameter:
- 195 mm
- Stage Port:
- 100 mm x 100 mm square
- Compatible Drive:
- Parker Compumotor S/SX 57-83 (PN 71-011644-02)
- Drive Model:
- Parker / Compumotor S/SX 57-83
- Drive Part Number:
- 71-011644-02
- Drive Quantity:
- 2
- Application:
- Precision rotary positioning, semiconductor, optical, lab automation
- Compatible With:
- Heidenhain 700 Series encoder systems, Parker Compumotor indexing drives
- Condition Notes:
- Heidenhain EXE 702B encoder interface and ROD 456-900 rotary stage system inspected and in good condition. Pulled from a working environment. Includes 2x Parker Compumotor S/SX 57-83 drives and cabling. Please contact us with questions.
$595.00Was: $1,200.00 -
SMT I1316 891 RF Coaxial Isolator SMA Connector Microwave Component ICY63
SMT
$35.00Was: $70.00SMT I1316 891 RF Coaxial Isolator SMA Connector Microwave Component ICY63RF coaxial isolator for microwave and RF systems. Provides isolation between connected components to prevent signal reflections and reduce standing wave ratio (SWR) in transmission...38753- SKU:
- 38753
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- SMT
- Model:
- I1316
- MPN:
- I1316
- Secondary Model:
- 891
- Type:
- RF Coaxial Isolator
- SKU:
- 38753
- Connector Type:
- SMA (Female)
- Number of Ports:
- 3
- Housing:
- Machined Metal, Nickel-Plated
- Country/Region of Manufacture:
- United States
- Form Factor:
- Inline / Drop-In
- Seller Notes:
- Unit only. No additional accessories included.
- Condition:
- Used – Inspected and Pulled from Working Environment
- Compatible With:
- SMA-based RF/microwave systems and test setups
- Condition Notes:
- SMT I1316 / 891 RF coaxial isolator. Inspected and in good used condition. Housing shows light wear and minor oxidation. All three SMA connectors appear intact and undamaged.
$35.00Was: $70.00
