Radio Electronics RE530 RDS Generator IEEE-488 GPIB Memory Bus BNC 220V

Radio Electronics RE530 RDS Generator IEEE-488 GPIB Memory Bus BNC 220V

The RE530 is a benchtop RDS (Radio Data System) generator used in FM broadcast facilities for testing and verifying RDS signal transmission, encoding, and compliance. This unit generates and outputs composite RDS signals via BNC connectors and integrates with test equipment through IEEE-488 (GPIB) and Memory Bus interfaces, allowing integration into automated test systems and data-logging setups common in broadcast engineering labs.

Specifications & What's Included

• Brand: RE Instruments AS, Denmark
• Model: RE530
• Power: 220V / 110-120V AC, 47-63Hz, 70VA
• Interfaces: IEEE-488 (GPIB), Memory Bus, Clock/Data, Terminal
• Output Connectors: BNC (Composite Out, Sync In, Composite In)

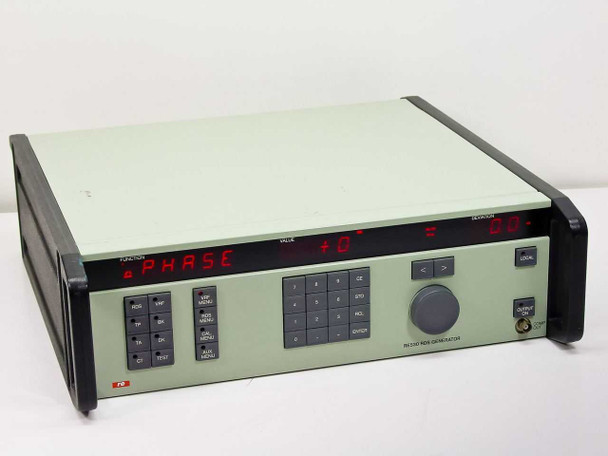

• Display: LED indicators for Function (Phase), Value, Deviation (kHz)
• Function Keys: RDS, VRF, TP, BK, TA, DK, CT, TEST
• Menu Keys: VRF Menu, RDS Menu, CAL Menu, AUX Menu
• Both IEEE-488 and Memory Bus interfaces installed
• Serial Number: R00N01

Applications

RDS generators like the RE530 are standard equipment in FM broadcast facilities and engineering labs for testing and validating RDS signal transmission and reception. The unit connects to broadcast transmitters and monitoring systems to verify RDS data encoding, signal quality, and compliance with broadcast standards. IEEE-488 connectivity enables integration with automated test systems, allowing engineers to log data and perform batch testing across multiple stations or transmitter configurations. This model dates from the professional broadcast test equipment era when RDS (Radio Data System) became standard in European and international FM broadcasting, making it a valuable tool for legacy system maintenance, broadcast facility upgrades, and RDS signal validation in production and quality-assurance environments.
