Federal Products EMD-6000 Surfanalyzer 600 & System 2000 25-2020-00 Surface

(No reviews yet) Write a Review
SKU:
39232
MPN:
EMD-6000 / 25-2020-00
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
190.00 LBS
Shipping:
Calculated at Checkout
  • Federal Products Surfanalyzer 600 EMD-6000 and Surfanalyzer System 2000 – full system front view showing both units side by side
  • Federal Products Surfanalyzer 600 EMD-6000 – top front three-quarter view showing traverse mechanism, stylus arm, and lower knob
  • Federal Products Surfanalyzer System 2000 – front panel showing LED digital display reading 03.3, chart recorder with paper loaded, and control knobs
  • Federal Products Surfanalyzer 600 logo and nameplate closeup – reads 'Federal An Esterline Company Surfanalyzer 600' with CLA label and traverse speed indicator
  • Surfanalyzer 600 front panel detail – traverse speed selector (SLOW 0.254 / FAST 2.54 mm/sec), OFF/REMOTE switch, lower knob, and CLA / PROFILE/ROLL-OFF mode labels
  • Surfanalyzer System 2000 front panel left side – Federal logo, 'Surfanalyzer System 2000' nameplate, JOG button, and POSITION knob
  • Surfanalyzer System 2000 right-side control panel – LED readout showing -00.3, TRAVERSE/EVENT buttons, recorder output channel A/B selectors, sensitivity and stylus position switches, roughness cutoff and chart controls
  • Surfanalyzer System 2000 measurement module – ARITHMETIC AVERAGE (Ra) and WAVINESS (W) indicator LEDs, chart divisions selector in microinches/micrometers, waviness cutoff dial, DISPLAY NORMAL/FAST switch
  • Surfanalyzer System 2000 chart recorder section – POWER and INTERLOCK buttons, chart paper loaded and partially fed, chart window detail
  • Rear view of both units – Surfanalyzer 600 rear panel with controller power cable and label; System 2000 rear panel with DB connectors, card slots, and cooling fan

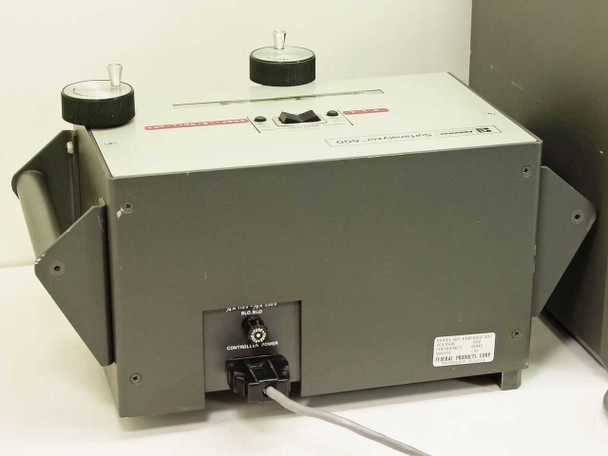

  • Surfanalyzer 600 rear panel – controller power inlet, interconnect cable connector, and rating label
  • Surfanalyzer 600 rear panel closeup – fuse holder rated 1/4A 115V / 1/8A 230V SLO-BLO, CONTROLLER POWER label, and DB15 connector below

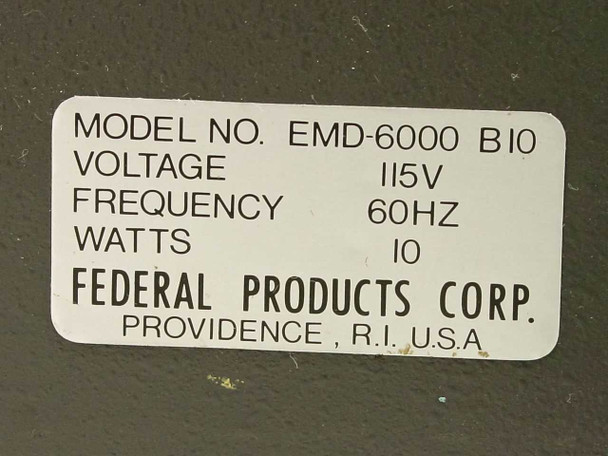

  • Surfanalyzer 600 rating plate – MODEL NO. EMD-6000 B10, VOLTAGE 115V, FREQUENCY 60HZ, WATTS 10, FEDERAL PRODUCTS CORP. PROVIDENCE R.I. U.S.A.

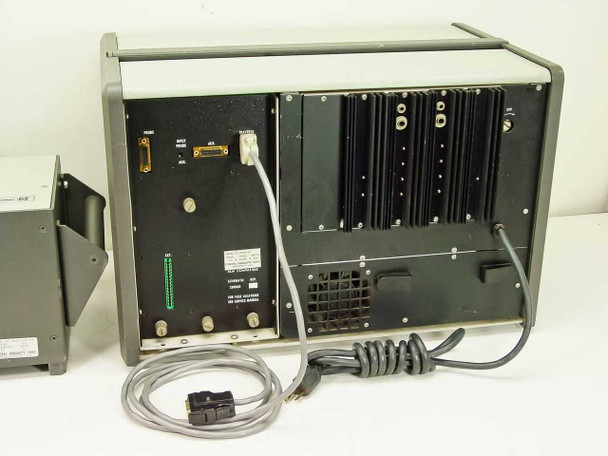

  • System 2000 rear panel – PRINT and INPUT DB connectors, AUX port, interconnect cable, card-slot heatsink modules, and cooling fan
  • Surfanalyzer 600 rear connector panel – PROBE, INPUT PROBE/AUX switch, AUX DB15 connector, and TRAVERSE connector with white cable attached
  • System 2000 rear rating label and EXT connector – MODEL 25-2020-00, VOLTS 115, FREQ 60HZ, WATTS 250, FEDERAL PRODUCTS CORP., ALM COMPATIBLE, SCHEMATIC REV 289868, green card-edge EXT connector
  • System 2000 rear rating label closeup – MODEL 25-2020-00, 115V, 60HZ, 250W, FEDERAL PRODUCTS CORP PROVIDENCE R.I. U.S.A., ALM COMPATIBLE, SCHEMATIC REV 289868

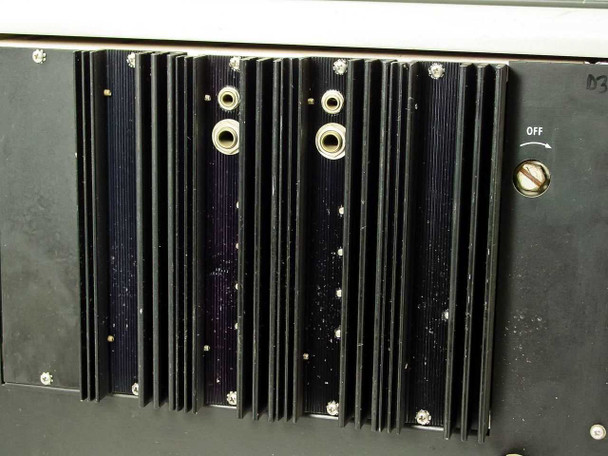

  • System 2000 rear card slot section – four finned heatsink amplifier modules installed in card cage, with OFF screw and mounting hardware visible
$800.00
Was: $1,600.00
Current Stock: 1

Sold Out

Description

Federal Products EMD-6000 Surfanalyzer 600 & System 2000 25-2020-00 Surface Roughness Analyzer

Two-unit benchtop system for measuring surface roughness, waviness, and profile characteristics in manufacturing quality control. The EMD-6000 Surfanalyzer 600 controller pairs with the System 2000 (25-2020-00) recorder module and includes interconnect cable.

Specifications & What's Included

  • Model: EMD-6000 B10 (MPN) / Surfanalyzer 600 + System 2000 (25-2020-00)
  • Measurement parameters: Ra (CLA), waviness, profile, roll-off
  • Roughness cutoff: 0.025, 0.076, 0.25, 0.76 mm (selectable)
  • Traverse speeds: 0.254 mm/sec (slow) and 2.54 mm/sec (fast)
  • Sensitivity: 100–1K µin/div; 0.02–5 µm/div
  • LED digital readout + integrated dual-channel chart recorder
  • Power: EMD-6000 (115V, 60Hz, 10W); System 2000 (115V, 60Hz, 250W)
  • Interconnect cable included

Applications

Used for surface finish measurement and verification in manufacturing environments, particularly QC departments verifying machined and finished parts. The system accepts Federal Products Surfanalyzer probes and stylus assemblies for contact-based surface analysis across industrial applications.

Condition: Used
This Federal Products EMD-6000 Surfanalyzer 600 and Surfanalyzer System 2000 (25-2020-00) surface roughness analyzer system has been powered on and inspected at our facility and appears to be in good working condition. Both units power on. The chart recorder paper is present and the LED digital display is functional. Cosmetically the units show normal wear consistent with lab use — the enclosures have light scuffs and the rear panels show some moisture spotting or minor surface marks, but no significant damage. The interconnect cable between the two units is included and connected. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Federal Products Corp.
Model:
EMD-6000
Secondary Model:
25-2020-00
MPN:
EMD-6000 B10
Product Line:
Surfanalyzer 600 / Surfanalyzer System 2000
Type:
Surface Roughness Analyzer / Profilometer
SKU:
39232
Condition:
Used – Inspected and Tested
Seller Notes:
Two-unit system: Surfanalyzer 600 (EMD-6000) + System 2000 (25-2020-00); includes interconnect cable
Country/Region of Manufacture:
United States
Form Factor:
Benchtop
Power Requirements (EMD-6000):
115V, 60Hz, 10W
Power Requirements (25-2020-00):
115V, 60Hz, 250W
Controller Fuse Rating:
1/4A @ 115V / 1/8A @ 230V, SLO-BLO
Measurement Type:
Surface Roughness and Waviness (Ra / CLA)
Measurement Parameters:
Ra (CLA), Waviness (W), Profile, Roll-Off
Roughness Cutoff:
0.025, 0.076, 0.25, 0.76 mm (selectable)
Waviness Cutoff:
0.076, 0.25, 0.76 mm (selectable)
Traverse Speed:
Slow 0.254 mm/sec / Fast 2.54 mm/sec
Chart Speed:
Selectable in/sec and mm/sec
Sensitivity / Stylus Position:
100, 200, 500, 1K µin/div; 0.02–5 µm/div
Display Type:
LED digital readout + integrated chart recorder
Recorder Channels:
Channel A and Channel B
Rear Connectors (EMD-6000):
PROBE, INPUT PROBE/AUX switch, AUX (DB15), TRAVERSE
Rear Connectors (25-2020-00):
PRINT, INPUT, AUX (DB connectors); EXT (card-edge)
ALM Compatible:
Yes
Schematic Reference:
289868
Application:
Surface finish and roughness measurement in manufacturing QC
Compatible With:
Federal Products Surfanalyzer probes and stylus assemblies
Condition Notes:
Federal Products EMD-6000 Surfanalyzer 600 & System 2000 (25-2020-00) surface roughness analyzer. Powered on and inspected — appears in good working condition. Both units power on. Interconnect cable included. Normal lab wear. See photos.
View AllClose

Related Products

Related Products

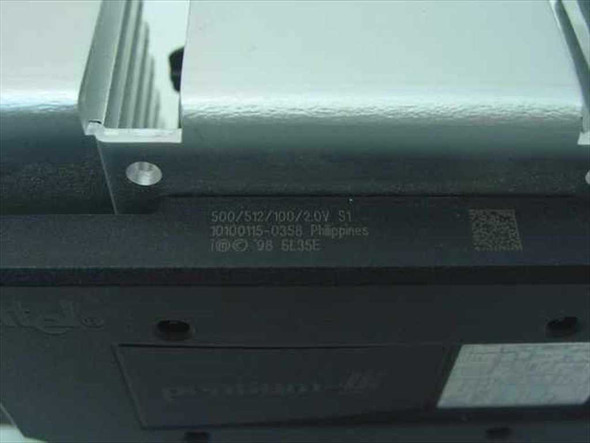

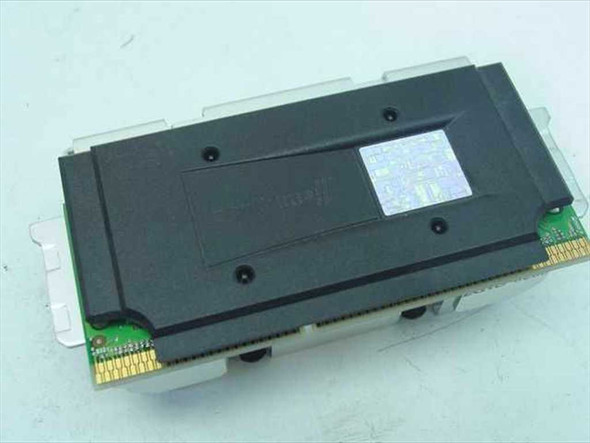

Intel Pentium III SL3CD Slot 1 500MHz processor — top view showing SECC2 cartridge with integrated heatsink Intel Pentium III SL3CD label showing 500/512/100/2.0V spec, Philippines manufacture, 1998 date code
