Oriel
-
Oriel 20010 2-Axis Stepper Motor Driver Controller RS-232 110V 50/60Hz
Oriel
$220.00Was: $450.00Oriel 20010 2-Axis Stepper Motor Driver Controller RS-232 110V 50/60HzBenchtop stepper motor driver and controller for two-axis motion control. Communicates via RS-232 serial interface and operates...51919- SKU:
- 51919
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 10.00 LBS
- Brand:
- Oriel
- Model:
- 20010
- MPN:
- 20010
- Type:
- 2-Axis Stepper Motor Driver / Controller
- SKU:
- 51919
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; pulled from a working environment. See photos.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop
- Power Requirements:
- 110V, 50/60Hz, 0.5A
- Input Voltage:
- 110V AC
- Frequency:
- 50/60Hz
- Current Rating:
- 0.5A
- Number of Axes:
- 2
- Interface Type:
- RS-232
- Connector Type:
- DB-25 (RS-232), DB-9 (Motor A & B)
- Baud Rate:
- Selectable (3, 6, 12, 24, 45, 96 x100 bps)
- Motor Outputs:
- Motor A, Motor B
- Front Panel Indicators:
- Ready, Limit Fwd, Limit Rev, Forward, 1/2 Step, Enable, Sync, Pulse
- Application:
- Optical stage motion control, lab automation
- Manufacture Date:
- August 1992
- Compatible With:
- Oriel optical motion stages and stepper motor systems
- Condition Notes:
- Oriel 20010 2-axis stepper motor driver. Inspected, in good condition. Pulled from a working environment where it was in active use. Normal cosmetic wear. See photos.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$220.00Was: $450.00 -
Oriel Instruments 66112 Bench Mount Aspheric Condensing Lens Assembly Lab
Oriel
$275.00Was: $550.00Oriel Instruments 66112 Bench Mount Aspheric Condensing Lens Assembly LabThe Oriel Instruments 66112 is a bench mount aspheric condensing lens assembly designed to collect and focus light from a...51863- SKU:
- 51863
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 11.00 LBS
- Brand:
- Oriel
- Model:
- 66112
- MPN:
- 66112
- SKU:
- 51863
- Type:
- Aspheric Condensing Lens Assembly
- Form Factor:
- Bench Mount
- Mounting Style:
- Bench Mount / Free-Standing
- Lens Type:
- Aspheric Condensing Lens
- Housing Material:
- Anodized Aluminum
- Application:
- Light Collection, Beam Conditioning, Optical Lab
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Lens assembly only as shown; no additional accessories included.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Oriel Instruments 66112 aspheric condensing lens assembly in good used condition. Pulled from a working lab environment. Housing is clean and intact; lens appears clear. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$275.00Was: $550.00 -

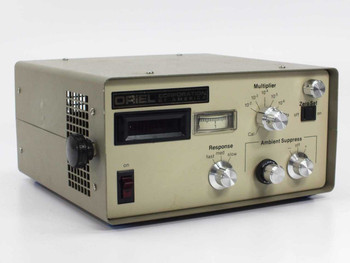

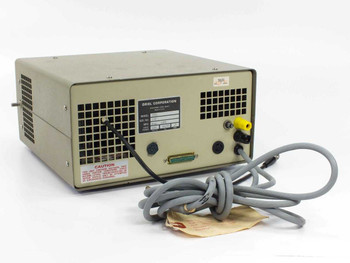

Oriel Corporation 7081 Pyroelectric Detector System 110V Benchtop
Oriel
$150.00Was: $300.00Oriel Corporation 7081 Pyroelectric Detector System 110V BenchtopThe Oriel Corporation 7081 is a benchtop pyroelectric detector system designed to measure the power and energy of laser and other...47816- SKU:
- 47816
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 7.00 LBS
- Brand:
- Oriel
- Model:
- 7081
- MPN:
- 7081
- Type:
- Pyroelectric Detector System
- SKU:
- 47816
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Powers on; display works; zero-adjust confirmed. Missing black knob on right side.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop
- Power Requirements:
- 110V AC, 50/60 Hz, 0.4A
- Input Voltage:
- 110V AC
- Input Current:
- 0.4A
- Frequency:
- 50/60 Hz
- Measurement Type:
- Optical Power / Laser Energy
- Detector Type:
- Pyroelectric
- Display Type:
- Analog meter + LED digital readout
- Controls:
- Multiplier, Response (fast/med/slow), Ambient Suppress, Zero Set
- Multiplier Range:
- 10^2 to 10^6 watts
- Connector Type:
- BNC, DIN, DB25 parallel
- Application / Use Case:
- Laser power measurement, optical lab, photonics
- Manufacture Date:
- August 1985
- Condition Notes:
- Oriel 7081 Pyroelectric Detector System — powered on, display works, zero-adjust confirmed. Not tested further. Missing black knob on right side. Good used condition overall.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00 -

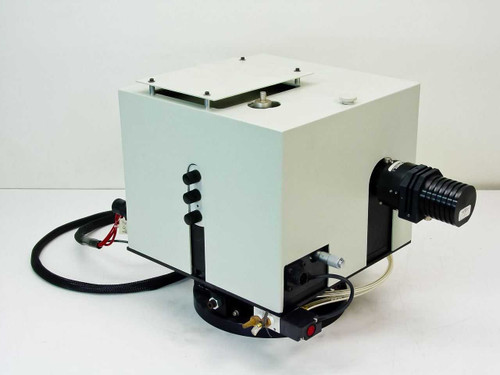

Oriel 150W Arc Lamp Housing UXL-S150M0 AO 25X WF Optics Photodiode 68855 XY
Oriel
$500.00Was: $1,000.00Oriel 150W Arc Lamp Housing UXL-S150M0 AO 25X WF Optics Photodiode 68855 XY StageThis is a complete Oriel 150W arc lamp sub-assembly pulled from a custom-built McBain Mask Alignment System. The...38815- SKU:
- 38815
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 33.00 LBS
- Brand:
- Oriel
- Model:
- UXL-S150M0
- MPN:
- UXL-S150M0
- Secondary Model:
- 68855
- Type:
- Arc Lamp Housing Assembly with XY Stage and Photodiode
- SKU:
- 38815
- Lamp Model:
- UXL-S150M0
- Lamp Wattage:
- 150W
- Optics:
- American Optical (AO) 25X Wide Field, Cat. 186
- Photodiode Sensor:
- Oriel 68855
- Shutter Type:
- Pneumatic
- Stage Type:
- XY Linear Stage with Flanged Base
- Actuator:
- PHD Actuator (Products for Productivity)
- Connector:
- AMP 206039-1 multi-pin circular connector
- Source System:
- McBain Mask Alignment System
- Power Supply Included:
- No — power supply not included
- Application:
- Photolithography / Mask Alignment / Semiconductor
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes lamp UXL-S150M0, AO 25X WF optics, Oriel 68855 photodiode, XY stage. No PSU.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop / Sub-Assembly
- Condition Notes:
- Oriel 150W arc lamp housing w/ UXL-S150M0 lamp, AO 25X WF optics, Oriel 68855 photodiode, XY stage. Pulled from a dismantled McBain mask aligner. Good used condition. Power supply not included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$500.00Was: $1,000.00 -

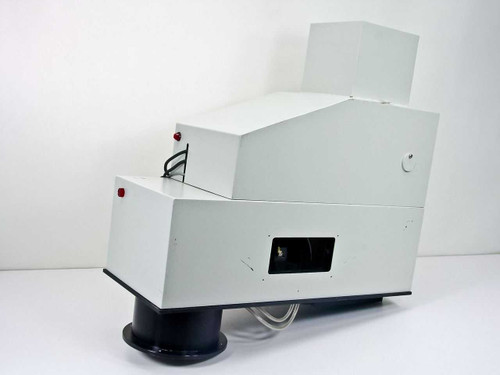

Oriel Instruments 68709 500W Mercury Arc Lamp Housing w/ Optics For Parts
Oriel
$450.00Was: $900.00Oriel Instruments 68709 500W Mercury Arc Lamp Housing w/ Optics For PartsThis is a 500W mercury arc lamp housing assembly designed for high-intensity UV and visible light applications. The unit...38824- SKU:
- 38824
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 65.00 LBS
- Brand:
- Oriel
- Model:
- 68709
- MPN:
- 68709
- Type:
- Mercury Arc Lamp Housing with Optics
- SKU:
- 38824
- Condition:
- As-Is / For Parts or Not Working
- Lamp Power:
- 500W
- Lamp Type:
- Mercury Arc Lamp
- Application:
- Spectroscopy, Photolithography, Optical Testing
- Igniter:
- Arc Lamp Igniter (integrated, labeled on housing)
- Cooling:
- Forced air — integrated fan assembly on top
- Connectors Included:
- POS/NEG coaxial cables (UHF connectors), thermocouple
- Missing Parts:
- Rear internal mirror (1 of 2) missing
- Center Section:
- Removable — arc lamp and center housing section separate
- Country/Region of Manufacture:
- United States
- Manufacture Date:
- November 1995
- Serial Number:
- 212
- Seller Notes:
- Missing rear internal reflection mirror. Center lamp section removable.
- Condition Notes:
- Oriel Instruments 68709 500W Mercury Arc Lamp Housing — missing rear internal reflection mirror. Sold AS-IS for parts or repair. Not tested. Center arc lamp section removable. Igniter, fan, and cables present.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$450.00Was: $900.00 -

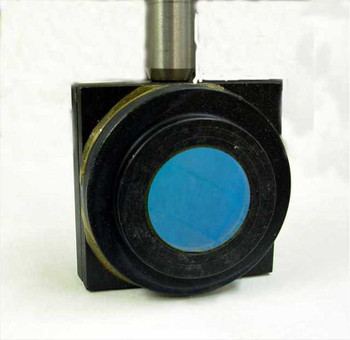

Oriel Coated Optical Mirror Anti-Vibration Mounts Laser IR 3x3.3 & 2x2 Lot
Oriel
$75.00Was: $150.00Oriel Coated Optical Mirror Anti-Vibration Mounts Laser IR 3x3.3 & 2x2 LotThis is a lot of two Oriel coated optical mirror mounts with integrated anti-vibration isolation, made by Oriel Corp. of...35466- SKU:
- 35466
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Oriel
- Model:
- Optical Mirror Anti-Vibration Mount
- Type:
- Anti-Vibration Optical Mirror Mount
- SKU:
- 35466
- Quantity:
- 2 mounts included
- Mount 1 Size:
- 3 x 3.3 in body, 5-7/8 in x 11/16 dia stem
- Mount 2 Size:
- 2 x 2 in body, 4 in x 1/2 dia stem
- Coating:
- Laser and IR coated (blue/teal reflective coating visible)
- Adjustment:
- Adjustable angle of deflection
- Mounting Stem Diameter 1:
- 11/16 in (larger mount)
- Mounting Stem Diameter 2:
- 1/2 in (smaller mount)
- Application:
- Laser beam steering, IR optics, optical breadboard
- Vibration Isolation:
- Yes — rubber anti-vibration isolation pads
- Body Material:
- Black anodized aluminum
- Seller Notes:
- Lot of 2 anti-vibration mirror mounts; coated mirrors installed
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Inspected and Tested
- Condition Notes:
- Oriel coated optical mirror anti-vibration mounts, lot of 2. Inspected and in good used condition. Mirror coatings appear intact, bodies show light surface wear, rubber isolation pads intact, stems straight.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$75.00Was: $150.00 -
Oriel 7072 Photodiode Detection System Controller 110V Newport Optical Lab
Oriel
$125.00Was: $250.00Oriel 7072 Photodiode Detection System Controller 110V Newport Optical Lab The Oriel Corporation Model 7072 is a benchtop photodiode detection system controller designed to interface with photodiode...20281- SKU:
- 20281
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 12.00 LBS
- Brand:
- Oriel
- Model:
- 7072
- MPN:
- 7072
- Type:
- Photodiode Detection System Controller
- SKU:
- 20281
- Condition:
- Used – Inspected
- Form Factor:
- Benchtop
- Power Requirements:
- 110V, 50/60Hz, 0.5A
- Input Voltage:
- 110 V
- Frequency:
- 50/60 Hz
- Current Rating:
- 0.5 A
- Manufacture Date:
- April 1984
- Country/Region of Manufacture:
- United States
- Application / Use Case:
- Optical detection, photocurrent measurement, lab
- Interface / Connector:
- DB-25 parallel connector, banana jacks (rear panel)
- Controls:
- Multiplier, Ambient Suppress, Response, Zero, Measure
- Display:
- LED digital readout + analog meter
- Measurement Type:
- Photocurrent / optical power
- Compatible With:
- Oriel photodiode detectors and optical benches
- Seller Notes:
- Controller unit only — no detector or accessories included
- Condition Notes:
- Oriel 7072 Photodiode Detection System Controller inspected and in good condition. Shows normal lab wear. Controller unit only — no detector or accessories included. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$125.00Was: $250.00 -

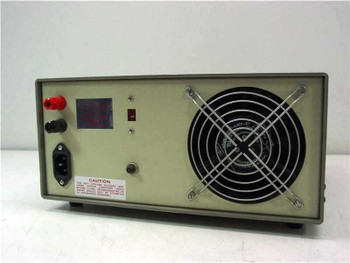

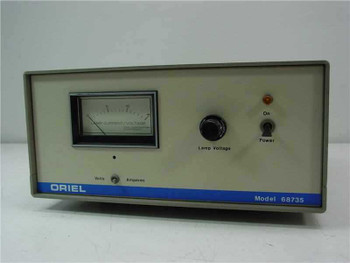

Oriel 68735 DC Regulated Lamp Power Supply 3.5-13VDC 100W For Parts
Oriel
$65.00Was: $125.00Oriel 68735 DC Regulated Lamp Power Supply 3.5-13VDC 100W For PartsBenchtop DC regulated power supply designed to drive tungsten-halogen and incandescent lamps. Provides adjustable voltage output...15964- SKU:
- 15964
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 23.00 LBS
- Brand:
- Oriel
- Model:
- 68735
- MPN:
- 68735
- Type:
- DC Regulated Lamp Power Supply
- SKU:
- 15964
- Condition:
- As-Is / For Parts or Not Working
- Output Voltage:
- 3.5–13V DC
- Power Rating:
- 100 Watts
- Input Voltage:
- 110V
- Input Frequency:
- 50/60 Hz
- Input Current:
- 4A
- Form Factor:
- Benchtop
- Front Panel Controls:
- Lamp Voltage knob (with Lock), Power toggle switch
- Front Panel Display:
- Analog meter — Lamp Current/Voltage (Volts/Amperes)
- Country/Region of Manufacture:
- United States
- Manufacture Date:
- May 1984
- Seller Notes:
- Sold as-is for parts or repair. Powers on but produces no output voltage.
- Condition Notes:
- Oriel 68735 DC Lamp Power Supply powers on but does not output voltage. Analog meter does not respond. Sold as-is for parts or repair — not guaranteed functional.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$65.00Was: $125.00
