Oriel

Oriel Corporation 7081 Pyroelectric Detector System 110V Benchtop

(No reviews yet) Write a Review
SKU:
47816
MPN:
7081
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout
  • Oriel Corporation 7081 Pyroelectric Detector System — front-left three-quarter view showing analog meter, LED display, Multiplier and Response knobs, and Ambient Suppress control

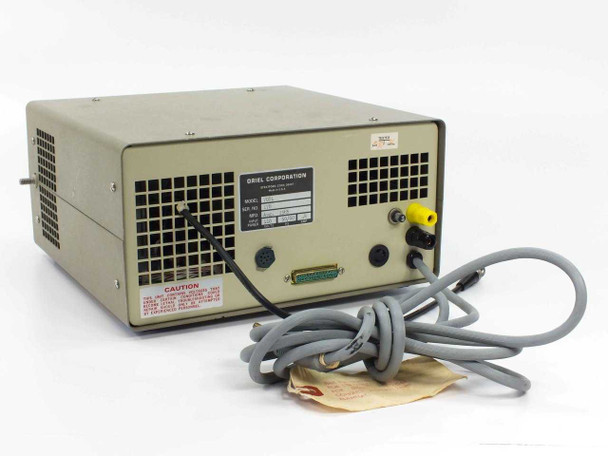

  • Oriel 7081 Pyroelectric Detector System — rear panel view showing DB25 connector, DIN connectors, BNC output, ventilation grille, and attached cables including gray signal cable
  • Oriel Corporation rating plate — Model 7081, Serial No. 178, Manufactured August 1985, Input Power 110V 50/60 Hz 0.4A, Made in USA, Stratford CT
  • Oriel Corporation of America 7081 Pyroelectric Detector System — front panel view showing LED digital readout displaying +.038, analog meter, Multiplier (10^2–10^6 watts) knob, Zero Set switch, Response and Ambient Suppress knobs

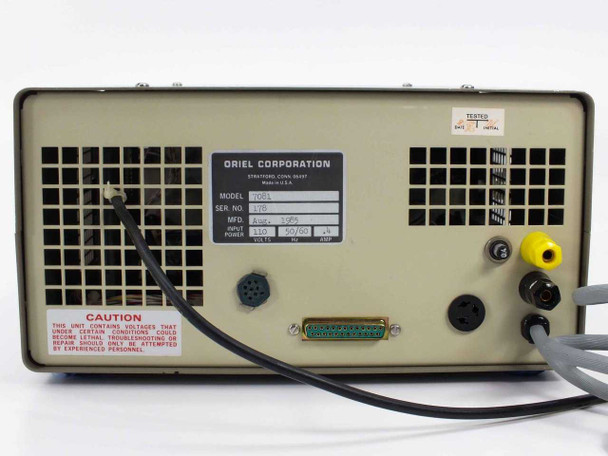

  • Oriel 7081 rear panel view showing DB25 parallel connector, DIN connectors, BNC connector, ventilation grille, and a TESTED sticker affixed to the upper right corner
  • Close-up of BNC connector on the Oriel 7081 signal cable — center pin and bayonet coupling detail
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Oriel Corporation 7081 Pyroelectric Detector System 110V Benchtop

The Oriel Corporation 7081 is a benchtop pyroelectric detector system designed to measure the power and energy of laser and other optical radiation sources. It conditions and displays the signal from a connected pyroelectric detector head, providing a calibrated readout of optical power across a selectable range of multiplier settings. Manufactured in August 1985 by Oriel Corporation of America in Stratford, Connecticut, this is a classic instrument from the era when pyroelectric detection was the standard method for broadband laser power measurement in research and industrial optical labs.

Specifications & What's Included

  • Model: Oriel Corporation 7081
  • Type: Pyroelectric Detector System (signal conditioner / display unit)
  • Input Power: 110V AC, 50/60 Hz, 0.4A
  • Form Factor: Benchtop
  • Manufacture Date: August 1985, Made in USA
  • Display: Analog panel meter plus LED digital numeric readout
  • Multiplier Range: 10² to 10⁶ watts (selectable via front-panel rotary knob)
  • Response Speed: Selectable — Fast, Med, Slow (front-panel rotary knob)
  • Ambient Suppress: Front-panel rotary control (off through multiple suppression levels)
  • Zero Set: Front-panel toggle switch (off / on)
  • Power switch: Front-panel rocker (On/Off)
  • Rear connectors: DB25 parallel interface, two DIN-type connectors, BNC output
  • Includes: Attached gray signal cable with BNC connector
  • Note: Black knob on the right side of the front panel is missing

Applications

Pyroelectric detector systems like the Oriel 7081 are used in optical and photonics laboratories to measure the power or energy output of lasers, lamps, and other broadband radiation sources across a wide spectral range — from UV through far-infrared. The pyroelectric sensing element responds to changes in incident radiation, making these instruments particularly well suited for pulsed laser energy measurement as well as CW laser power when modulated. The 7081 serves as the signal-conditioning and display unit, pairing with a separate Oriel pyroelectric detector head that connects via the rear panel. It was a standard tool in laser labs, spectroscopy setups, and optical engineering environments during the 1980s and into the 1990s. Today, instruments of this type remain useful in legacy optical test benches, university labs, and research facilities that maintain older Oriel detector heads and need a compatible readout unit.

Condition: Used
This Oriel Corporation 7081 Pyroelectric Detector System has been powered and tested at our facility. The unit powers on, the display works, and we confirmed the zero-adjust function using the front-panel knob. It was not tested beyond that. Note: the black knob on the right side of the front panel is missing. Otherwise the unit is in good used condition with typical wear consistent with its age. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Oriel
Model:
7081
MPN:
7081
Type:
Pyroelectric Detector System
SKU:
47816
Condition:
Used – Inspected and Tested
Seller Notes:
Powers on; display works; zero-adjust confirmed. Missing black knob on right side.
Country/Region of Manufacture:
United States
Form Factor:
Benchtop
Power Requirements:
110V AC, 50/60 Hz, 0.4A
Input Voltage:
110V AC
Input Current:
0.4A
Frequency:
50/60 Hz
Measurement Type:
Optical Power / Laser Energy
Detector Type:
Pyroelectric
Display Type:
Analog meter + LED digital readout
Controls:
Multiplier, Response (fast/med/slow), Ambient Suppress, Zero Set
Multiplier Range:
10^2 to 10^6 watts
Connector Type:
BNC, DIN, DB25 parallel
Application / Use Case:
Laser power measurement, optical lab, photonics
Manufacture Date:
August 1985
Condition Notes:
Oriel 7081 Pyroelectric Detector System — powered on, display works, zero-adjust confirmed. Not tested further. Missing black knob on right side. Good used condition overall.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
