Oriel 7072 Photodiode Detection System Controller 110V Newport Optical Lab

Oriel 7072 Photodiode Detection System Controller 110V Newport Optical Lab

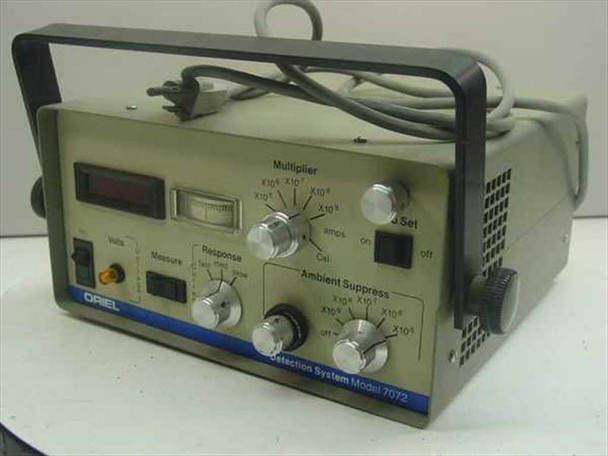

The Oriel Corporation Model 7072 is a benchtop photodiode detection system controller designed to interface with photodiode detectors for precise photocurrent measurement in optical research and laboratory settings. It conditions and amplifies the low-level current output from a connected photodiode, displaying the measured signal on both a front-panel LED digital readout and an analog meter for quick reference. The unit was manufactured in April 1984 at Oriel Corporation's facility in Stamford, Connecticut.

Specifications & What's Included

• Manufacturer: Oriel Corporation, Stamford, CT — Made in U.S.A.
• Model: 7072 (Detection System)
• Input Power: 110V, 50/60 Hz, 0.5A
• Manufacture Date: April 1984
• Serial Number: 272
• Form Factor: Benchtop instrument with carry handle
• Display: LED digital readout + analog bar meter (front panel)
• Multiplier control: switchable decade ranges (×10⁵ through ×10⁹), plus Amps and Cal positions
• Ambient Suppress control: switchable decade ranges for background cancellation
• Response control: Fast / Med / Slow settings
• Zero control: On/Off toggle (front panel)
• Volts/Measure/Current selector switch (front panel)
• Rear panel: DB-25 parallel interface connector, banana jack outputs
• Rear panel: ventilation grille, AC power cord (hardwired)
• Included: Controller unit only — no photodiode detector or accessories

Applications

The Oriel 7072 is part of Oriel Corporation's line of optical detection instruments, designed for use with silicon photodiodes, UV-enhanced photodiodes, and other current-output detectors on optical bench setups. Controllers of this type are used to measure light intensity, laser power, and spectral response in research and industrial optical systems — reading the tiny photocurrent generated by a detector and scaling it to a usable voltage output or display reading via the selectable multiplier range. Typical applications include monochromator output measurement, laser beam characterization, UV/visible/NIR irradiance monitoring, and photometric calibration work. The ambient suppress function allows the user to null out background illumination, isolating only the signal of interest. Oriel Corporation was a major U.S. manufacturer of optical instruments and components; the brand is now part of Newport Corporation. Equipment of this generation remains in active use in university and industrial optics labs maintaining legacy Oriel optical bench systems.
