Oriel Instruments 68709 500W Mercury Arc Lamp Housing w/ Optics For Parts

(No reviews yet) Write a Review
SKU:
38824
MPN:
500W
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
65.00 LBS
Shipping:
Calculated at Checkout

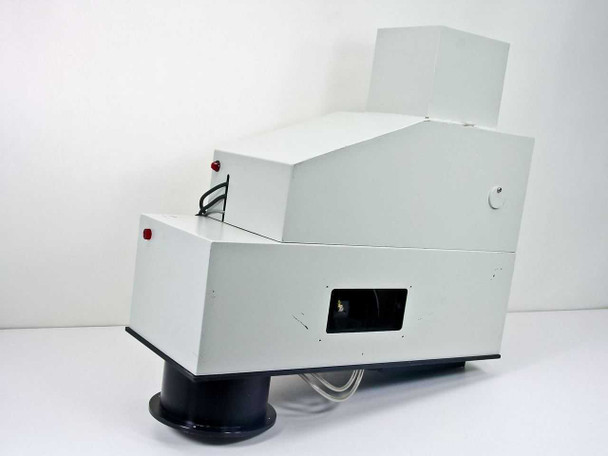

  • Oriel Instruments 68709 Mercury Arc Lamp Housing — three-quarter front-left view showing white outer enclosure and output port
  • Oriel 68709 Arc Lamp Housing — rear-left view showing thermocouple connector, AC power cables, and rear output aperture
  • Oriel 68709 Arc Lamp Housing — top-down view of cooling fan assembly inside black sheet-metal fan box
  • Oriel 68709 — removable center arc lamp section on optical stage showing gold-anodized lamp mount plate and adjustment hardware

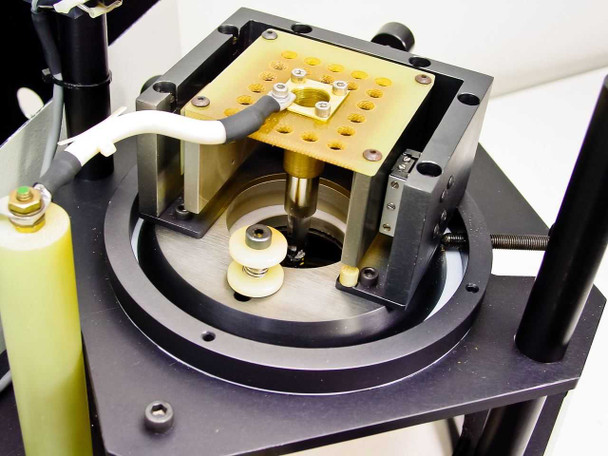

  • Oriel 68709 — close-up of center lamp mount section showing lamp socket, ceramic insulators, and tubing fittings
  • Oriel 68709 — interior of black housing section with top removed, showing one remaining front mirror and internal optical cavity
  • Oriel 68709 — housing interior fully open, showing internal wiring harness, connectors, and optical cavity with missing rear mirror position visible
  • Oriel 68709 — top-down interior view showing single surviving ellipsoidal mirror, BNC connectors on baseplate, and internal wiring
  • Oriel 68709 — front output face showing large circular output lens with internal arc lamp glowing orange/amber
  • Oriel 68709 — close-up of large circular front output lens showing internal optics and arc lamp illuminated
  • Oriel 68709 — underside detail showing multi-port manifold with brass fittings, fluid lines, circular multi-pin connector, and Molex connector
  • Oriel 68709 — included positive and negative coaxial power cables with UHF connectors, labeled POSITIVE and NEGATIVE
  • Oriel 68709 — Arc Lamp Igniter panel with HIGH VOLTAGE warning label; asset tag 38227 visible

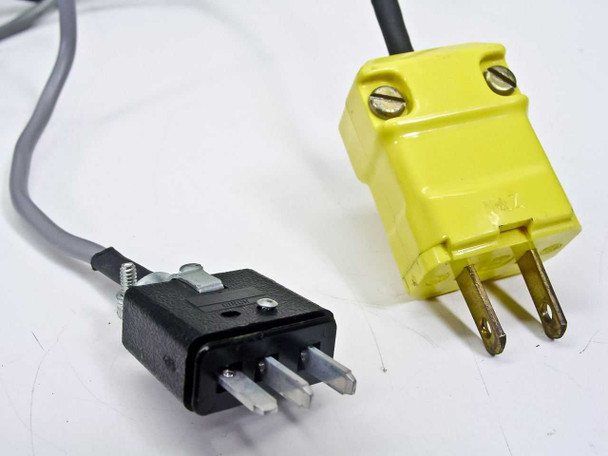

  • Oriel 68709 — included cables: small multi-pin connector (black) and yellow thermocouple plug

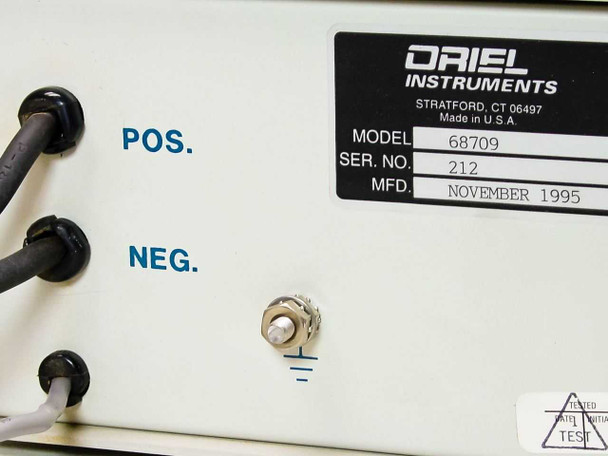

  • Oriel Instruments 68709 model/serial label — Model 68709, Serial No. 212, Made in USA, Manufactured November 1995
$450.00
Was: $900.00
Current Stock: 1

Sold Out

Description

Oriel Instruments 68709 500W Mercury Arc Lamp Housing w/ Optics For Parts

This is a 500W mercury arc lamp housing assembly designed for high-intensity UV and visible light applications. The unit includes integrated optics, an arc lamp igniter, forced-air cooling fan, and coaxial power cables with thermocouple connector.

Specifications & What's Included

  • Model: 68709 | Serial: 212 | Manufactured November 1995
  • 500W mercury arc lamp with removable center section
  • Integrated arc lamp igniter and forced-air fan assembly
  • POS/NEG coaxial cables (UHF connectors) and thermocouple included
  • Rear internal reflection mirror (1 of 2) missing
  • Made in United States

Applications

Mercury arc lamps of this type were used in spectroscopy systems, photolithography equipment, and optical testing instruments. These housings typically operated as the light source component in research and industrial setups requiring intense broadband UV-visible illumination. The 500W output and optics assembly indicate use in precision optical systems where collimated or focused high-energy light was required.

Condition: For Parts or Not Working
This Oriel Instruments 68709 500W Mercury Arc Lamp Housing is missing one of its two internal mirrors — specifically the rear mirror used for forward reflection. Because of this missing optic, the unit is sold AS-IS for parts or repair only. It has not been tested. The outer white enclosure and black inner housing are present and structurally intact. The integrated arc lamp igniter assembly, cooling fan, coaxial POS/NEG power cables (UHF connectors), and thermocouple cable are included. The center arc lamp and housing section can be removed and used separately. Please view our photo set and contact us if you have any questions.
