Uni-Solar PVL-136 136W Flexible Amorphous Solar Panel Peel-Stick Qty 30 4080W

Uni-Solar PVL-136 136W Flexible Amorphous Solar Panel Peel-Stick Qty 30 4080W

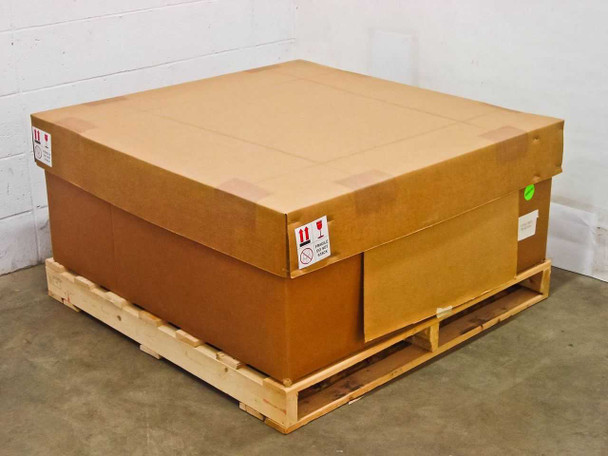

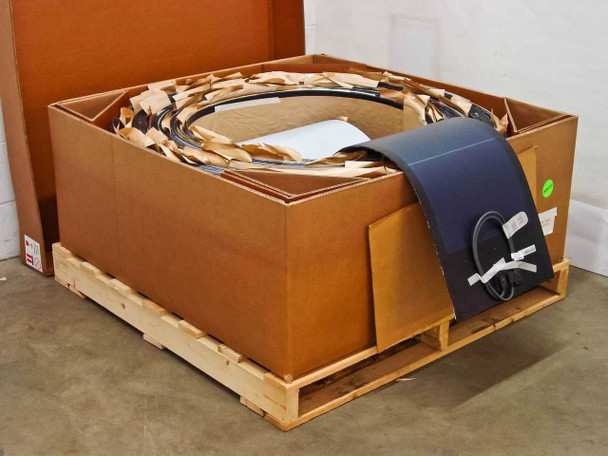

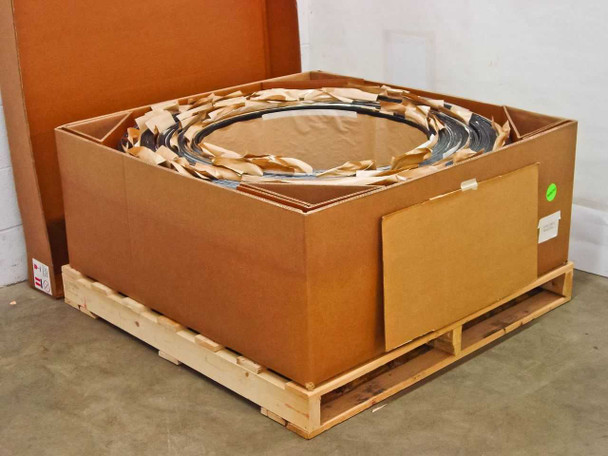

This listing is for a new old stock factory carton of 30 Uni-Solar PVL-136 136-watt flexible amorphous thin-film solar panels, totaling 4,080 watts. The PVL-136 uses an amorphous silicon (a-Si) triple-junction thin-film cell deposited on a flexible stainless steel substrate, giving the panel a peel-and-stick self-adhesive backing that bonds directly to roofing surfaces without penetrations or mounting hardware. Each panel rolls up for transport and unfurls flat onto the roof surface.

Specifications & What's Included

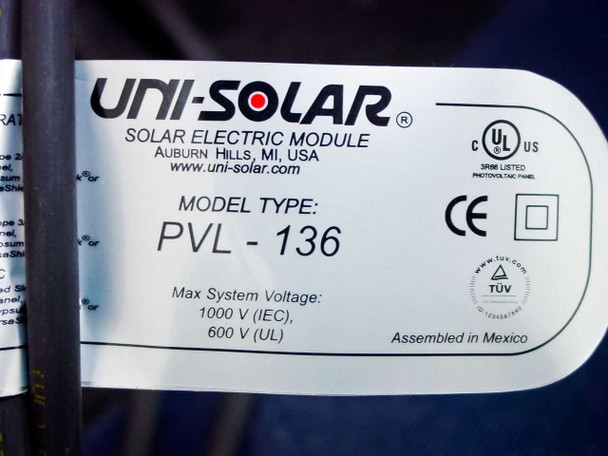

• Manufacturer: Uni-Solar (United Solar Ovonic), Auburn Hills, MI, USA — assembled in Mexico
• Model: PVL-136

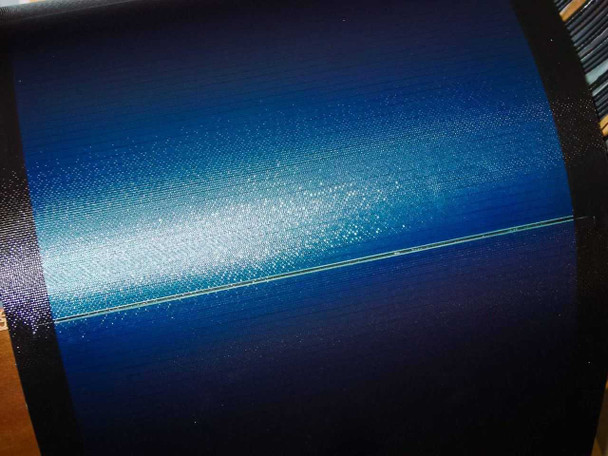

• Cell technology: Amorphous silicon (a-Si) thin-film on flexible stainless steel substrate

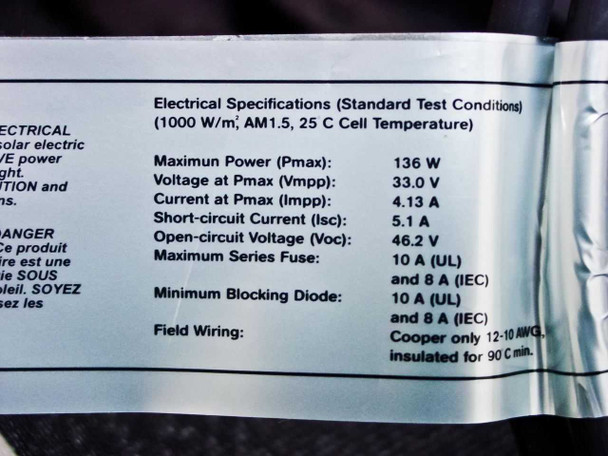

• Power output per panel (Pmax): 136 W (STC: 1000 W/m², AM1.5, 25°C cell temp)
• Voltage at Pmax (Vmpp): 33.0 V
• Current at Pmax (Impp): 4.13 A
• Short-circuit current (Isc): 5.1 A
• Open-circuit voltage (Voc): 46.2 V
• Maximum system voltage: 1000 V (IEC) / 600 V (UL)
• Maximum series fuse: 10 A (UL) / 8 A (IEC)
• Minimum blocking diode: 10 A (UL) / 8 A (IEC)
• Field wiring: Copper only, 12–10 AWG, insulated for 90°C minimum

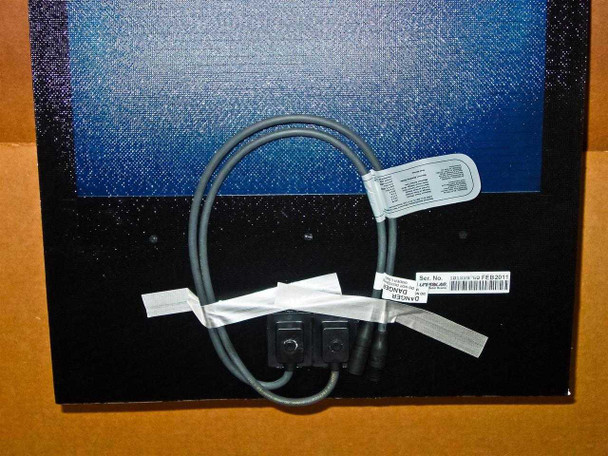

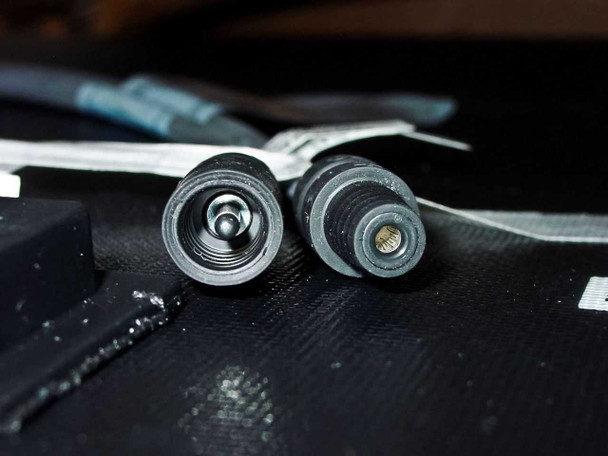

• Connector type: QC Universal quick-connect (male and female ends included)
• Wind resistance: Hurricane Category III (130 MPH) when installed per guidelines
• Certifications: UL Listed, CE, TÜV

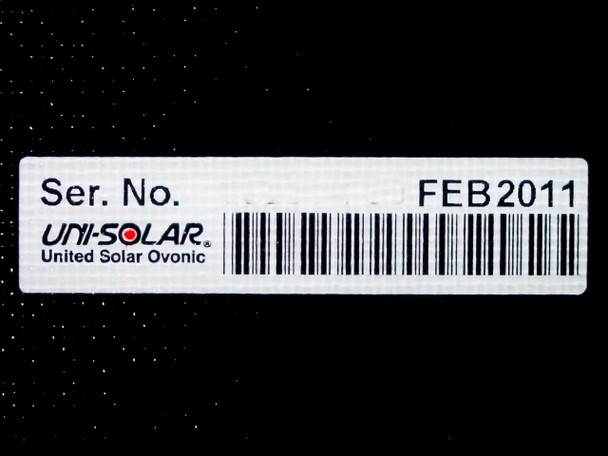

• Manufacture date: February 2011
• Quantity: 30 panels per carton
• Total carton wattage: 4,080 W
• Mounting: Peel-and-stick self-adhesive backing — no penetrations or mounting hardware required
• Battery system compatibility: Configurable for 12V, 24V, or 48V battery banks

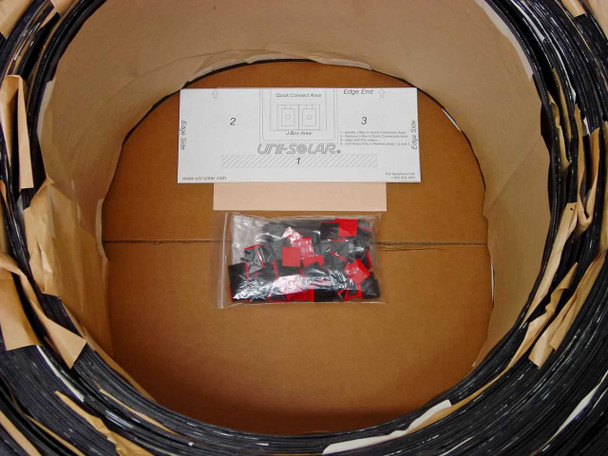

• Includes: 30 × PVL-136 panels, QC Universal quick-connect connectors, installation instruction sheet

Applications

The Uni-Solar PVL series was designed specifically for low-slope and flat roofing systems where conventional rigid crystalline panels cannot be used without costly racking and roof penetrations. The amorphous thin-film cells perform better than crystalline silicon under diffuse light, partial shading, and high ambient temperatures, and because the film uses a multi-junction cell structure, shading of a single cell affects only that cell's output rather than pulling down an entire series string. The peel-and-stick format makes these panels well suited for EPDM, TPO, and PVC membrane roofs as well as standing-seam and corrugated metal roofing — common on commercial, industrial, and agricultural buildings. Their light weight (less than one-fifth that of comparable crystalline panels) also makes them practical for RVs, motor homes, travel trailers, semi-truck trailers, cargo containers, and any flat or gently curved surface at least 18 feet long. Output can be wired to support 12V, 24V, or 48V battery systems for off-grid or hybrid applications. The PVL-136 was Uni-Solar's high-output single-laminate model and was in wide use through the mid-2000s to early 2010s; this stock dates from February 2011.
