Tegal

Tegal 903e IGC-5 PCB Module 99-126-005 Rev P Plasma Etcher Semiconductor Card

(No reviews yet) Write a Review
SKU:
27382
MPN:
99-126-005
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout
  • Tegal 903e IGC-5 PCB module 99-126-005 – top side view showing component layout and edge connector
  • Tegal 903e IGC-5 circuit board 99-126-005 – reverse angle showing large centronics-style connector and terminal blocks

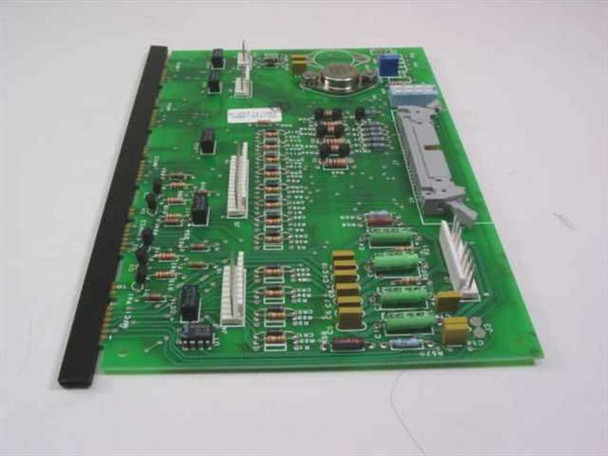

  • Tegal 99-126-005 IGC-5 PCB module – opposite top side showing crystal oscillator, passive components, and card-edge connector

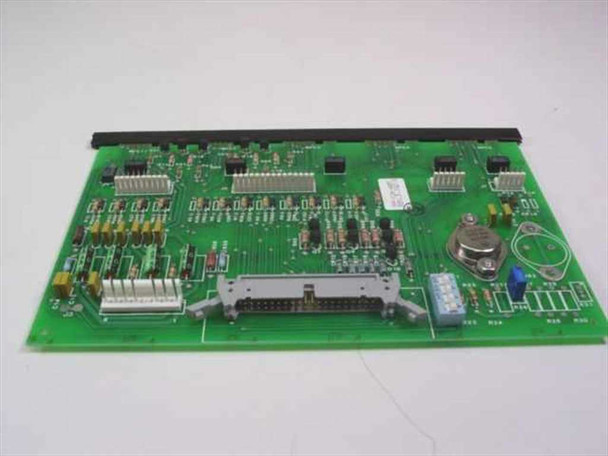

  • Tegal 903e IGC-5 board 99-126-005 – bottom angle view showing screw terminal blocks, TO-3 component, and edge connector
  • Tegal PCB close-up – board silkscreen showing 'TEGAL' brand marking with CR13, CR14, C12 component designators and resistors
  • Tegal 99-126-005 Rev P IGC-5 – close-up of part number label showing '99-126-005 REV.P.IGC-5' printed on white adhesive label
$300.00
Was: $600.00
Current Stock: 1

Sold Out

Description

Tegal 903e IGC-5 PCB Module 99-126-005 Rev P Plasma Etcher Semiconductor Card

PCB module designed for the Tegal 903e plasma etcher system. This circuit board is a core component used in semiconductor wafer processing and plasma etch operations.

Specifications & What's Included

  • Brand: Tegal
  • Model: 903e IGC-5
  • Part Number: 99-126-005
  • Revision: Rev P
  • Type: PCB Module / Circuit Board
  • Application: Plasma Etch / Semiconductor Processing
  • Condition: Used, pulled from working environment

Applications

This module is used in Tegal 903e plasma etching systems for semiconductor wafer processing. The 903e is a single-wafer plasma etcher utilized in semiconductor manufacturing for pattern transfer and material removal processes. The IGC-5 module handles instrumentation and control functions within the etcher system.

Condition: Used
This Tegal 903e IGC-5 PCB module (P/N 99-126-005 Rev P) was pulled from a working plasma etcher system where it was in active use and functional. The board has been inspected and appears to be in good condition. The PCB shows typical light handling marks consistent with in-service use; there are no signs of burns, damaged traces, or broken components visible on either side of the board. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Tegal
Model:
903e
MPN:
99-126-005
Secondary Model:
IGC-5
Hardware Revision:
Rev P
Type:
PCB Module / Circuit Board
SKU:
27382
Compatible With:
Tegal 903e Plasma Etcher
Application:
Plasma Etch / Semiconductor Processing
Form Factor:
PCB Card / Module
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from working Tegal 903e plasma etcher system.
Country/Region of Manufacture:
United States
Condition Notes:
Tegal 903e IGC-5 PCB module 99-126-005 Rev P pulled from a working plasma etcher. Inspected and in good condition — no visible burns or damage. Functional when removed from service.
View AllClose
