SMC CDM2B20-50+30-H Pneumatic Cylinder 20mm Bore 145 PSI w/ Rod End Fittings

(No reviews yet) Write a Review
SKU:
47966
MPN:
CDM2B20-50
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

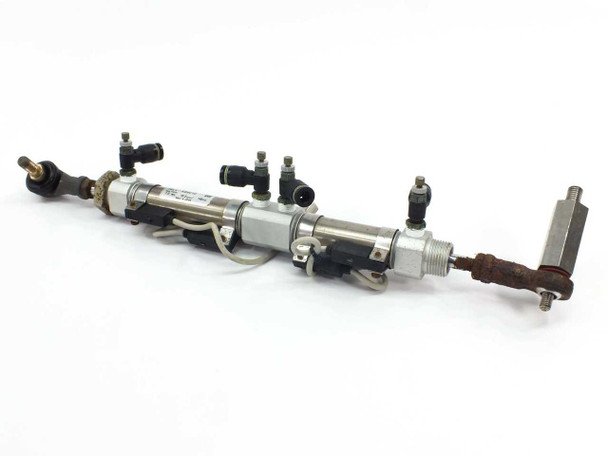

  • SMC CDM2B20-50+30-H pneumatic cylinder full assembly view showing rod ends and push-in fittings on white background

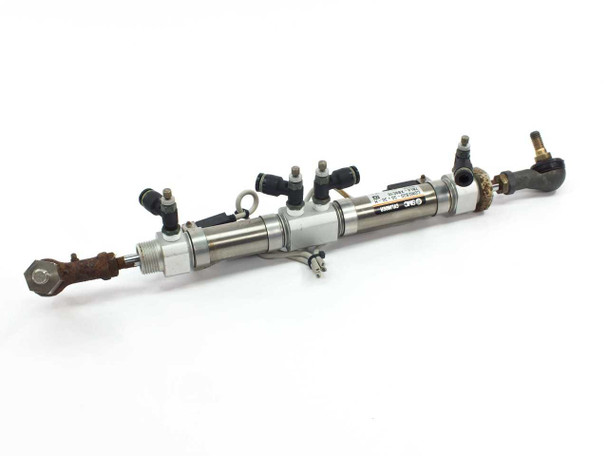

  • SMC CDM2B20-50+30-H pneumatic cylinder side profile view showing cylinder body, rod ends, and multiple push-in fittings
  • SMC CDM2B20-50+30-H cylinder label closeup showing model number, 7BL4-XB9C10, 1.0 MPa 145 PSI max pressure, Made in Japan
  • SMC CDM2B20-50+30-H pneumatic cylinder close-up of left rod end and push-in fittings showing wear and corrosion
  • SMC CDM2B20-50+30-H pneumatic cylinder close-up of right rod end and fittings showing corrosion on rod end hardware
$22.00
Was: $40.00
Current Stock: 2

Sold Out

Description

SMC CDM2B20-50+30-H Pneumatic Cylinder 20mm Bore 145 PSI w/ Rod End Fittings

Double-acting pneumatic cylinder from SMC's CM2/CDM2B series. Rated for 145 PSI (1.0 MPa) and designed for linear actuation in industrial automation and assembly applications.

Specifications & What's Included

  • Bore diameter: 20mm
  • Stroke: 50mm base + 30mm extended
  • Max pressure: 145 PSI (1.0 MPa)
  • Rod end configuration: Clevis/spherical rod ends both ends
  • Push-in pneumatic fittings included
  • Manufactured in Japan

Applications

CDM2B cylinders are used in industrial automation systems for controlled linear motion, clamping, pressing, and assembly operations. These double-acting units integrate with standard pneumatic control systems and are common in manufacturing machinery, material handling equipment, and process automation lines. The rod-end configuration allows direct mechanical coupling to loads and machine elements.

Condition: Used
SMC CDM2B20-50+30-H pneumatic cylinder, 20mm bore, 145 PSI rated. The cylinder body is clean with a fully legible label. Both rod ends show visible surface corrosion and oxidation typical of industrial use. Push-in pneumatic fittings are present and intact. Photos show the actual cosmetic condition; contact us with any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
