SMC CDQ2KB32-35DM CDQ2B32-60DM Compact Pneumatic Cylinder 32mm Bore 145 PSI

(No reviews yet) Write a Review
SKU:
47953
MPN:
CDQ2B32-60DM
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • SMC CDQ2KB32-35DM compact pneumatic cylinder – full assembly side view with push-to-connect fittings installed on top ports

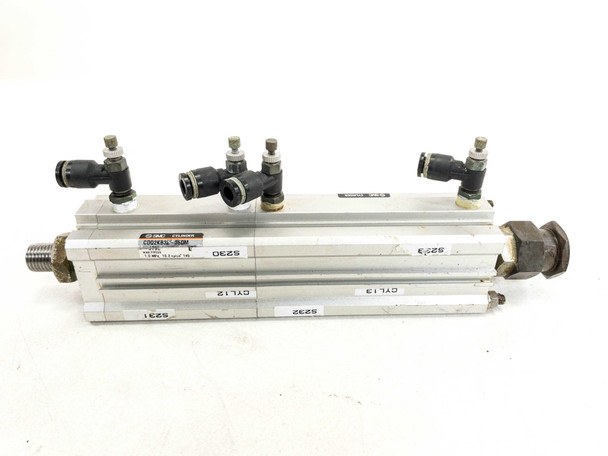

  • SMC CDQ2B32-60DM compact pneumatic cylinder – opposite side full view showing top fittings and threaded rod end
  • SMC compact pneumatic cylinder – angled view showing piston rod end and loose push-to-connect elbow fittings alongside

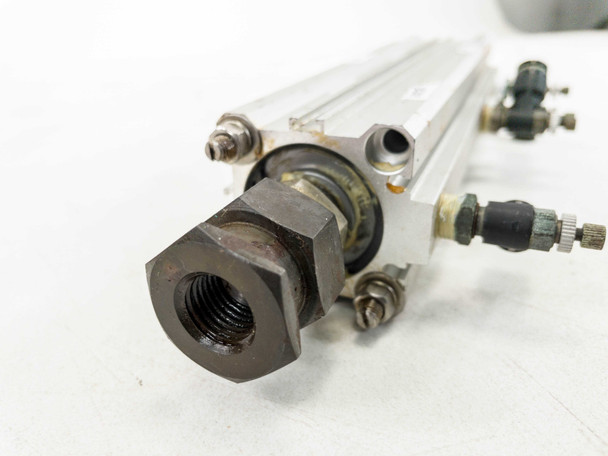

  • SMC CDQ2KB32-35DM pneumatic cylinder – close-up of threaded piston rod end and front cap with nut
  • SMC CDQ2B32-60DM compact cylinder – side view showing inventory sticker labels and push-to-connect fittings
  • SMC CDQ2B32-60DM cylinder – close-up of label showing model number, max pressure 1.0 MPa 10.2 kgf/cm² 145 PSI
  • SMC compact pneumatic cylinder – top view showing dual push-to-connect tee fittings and elbow fitting on port
  • SMC compact pneumatic cylinder – end view detail showing single push-to-connect elbow fitting and threaded rod end

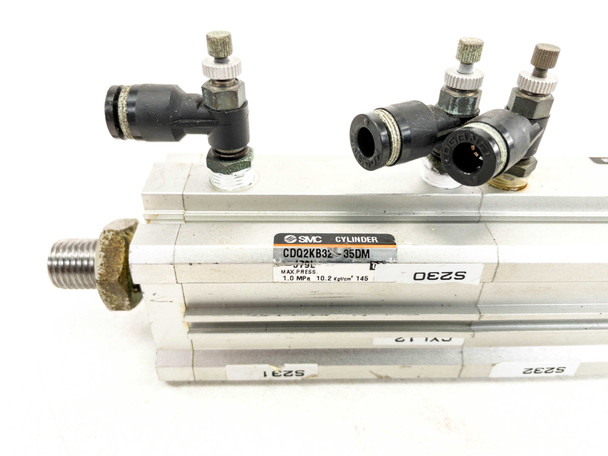

  • SMC CDQ2KB32-35DM cylinder – angled view showing label with model number and max pressure specs, inventory labels visible
  • SMC CDQ2B32-60DM cylinder – close-up of label showing model CDQ2B32-60DM, max press 1.0 MPa 10.2 kgf/cm² 145 PSI
$75.00
Was: $150.00
Current Stock: 3

Sold Out

Description

SMC CDQ2KB32-35DM CDQ2B32-60DM Compact Pneumatic Cylinder 32mm Bore 145 PSI

This listing includes two SMC CDQ2 series compact pneumatic cylinders: the CDQ2KB32-35DM (35mm stroke) and the CDQ2B32-60DM (60mm stroke). Both feature a 32mm bore diameter and are rated to a maximum operating pressure of 1.0 MPa (145 PSI). Push-to-connect pneumatic fittings are installed on the port locations of each cylinder. The CDQ2 series is SMC's widely used family of compact, space-saving air cylinders designed for precise, repeatable linear actuation in automated equipment.

Specifications & What's Included

  • Brand: SMC
  • Series: CDQ2 Compact Cylinder
  • Model 1: CDQ2KB32-35DM — 35mm stroke, 10.25 in extended length
  • Model 2: CDQ2B32-60DM — 60mm stroke, 14.00 in extended length
  • Bore Diameter: 32mm
  • Max Operating Pressure: 1.0 MPa / 10.2 kgf/cm² / 145 PSI
  • Media: Compressed air
  • Rod End: Male threaded piston rod
  • Body Material: Aluminum extrusion
  • Port Fittings: Push-to-connect pneumatic fittings installed (elbow and tee configurations visible)
  • Quantity: 2 cylinders included

Applications

SMC CDQ2 series compact cylinders are among the most widely used pneumatic actuators in industrial automation. They are found in pick-and-place assemblies, clamping fixtures, part ejection systems, packaging machinery, semiconductor handling equipment, and general factory automation where a compact envelope and reliable linear motion are required. The 32mm bore size is a common mid-range selection suited to moderate clamping and push/pull force applications. SMC is a Japanese manufacturer and global market leader in pneumatic components, and the CDQ2 series has been a production staple across a broad range of industries for decades. These cylinders accept standard compressed plant air and are compatible with the wide range of SMC push-to-connect fittings and flow control accessories already installed on this unit.

Condition: Used
These SMC compact pneumatic cylinders (CDQ2KB32-35DM and CDQ2B32-60DM) have been inspected and are in good used condition. The aluminum cylinder bodies are clean and free of cracks or major damage. The piston rod threads show some oxidation and minor surface wear consistent with normal industrial use, and there is light surface oxidation visible on the rod end hardware. Push-to-connect pneumatic fittings are installed on the port locations. Overall the cylinders present well for used industrial components. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
CDQ2KB32-35DM
Secondary Model:
CDQ2B32-60DM
MPN:
CDQ2KB32-35DM
Type:
Compact Pneumatic Cylinder
SKU:
47953
Series:
CDQ2
Bore Size:
32mm
Stroke (CDQ2KB32-35DM):
35mm
Stroke (CDQ2B32-60DM):
60mm
Extended Length (CDQ2KB32-35DM):
10.25 in
Extended Length (CDQ2B32-60DM):
14.00 in
Max Pressure:
1.0 MPa / 10.2 kgf/cm² / 145 PSI
Media:
Compressed Air
Actuator Type:
Double Acting
Rod End:
Male Threaded
Body Material:
Aluminum
Port Type:
Push-to-Connect Pneumatic Fittings
Seller Notes:
Includes push-to-connect pneumatic fittings installed on ports
Country/Region of Manufacture:
Japan
Condition Notes:
SMC CDQ2KB32-35DM & CDQ2B32-60DM compact pneumatic cylinders inspected and in good used condition. Aluminum bodies clean, minor oxidation on rod end hardware, push-to-connect fittings installed. Normal industrial wear.
