SMC CDQ2KB32-60DM-J79L Non-Rotating Pneumatic Cylinder 32mm Bore 60mm Stroke

SMC CDQ2KB32-60DM-J79L Non-Rotating Pneumatic Cylinder 32mm Bore 60mm Stroke

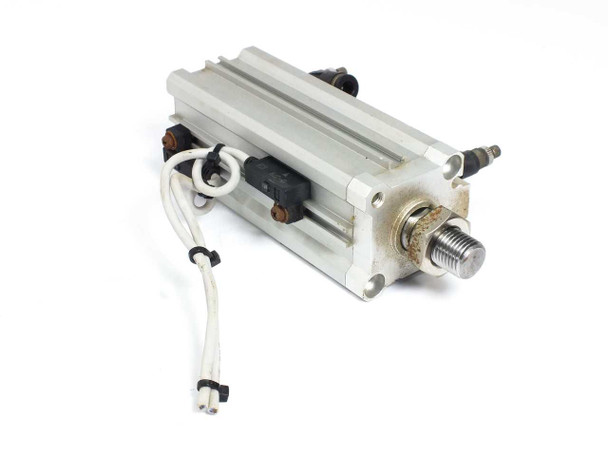

The SMC CDQ2KB32-60DM-J79L is a compact, non-rotating pneumatic cylinder from SMC's CQ2 series. It features a guided, non-rotating rod design that prevents rotation under load, making it well suited to applications where precise angular positioning of the rod end is required. The unit operates as a double-acting, single-rod cylinder and is built around a hard-anodized aluminum body for durability in industrial environments.

Specifications & What's Included

• Model: CDQ2KB32-60DM-J79L
• Series: SMC CQ2 / CDQ2 Compact Cylinder
• Bore Diameter: 32 mm
• Stroke Length: 60 mm
• Rod Diameter: 16 mm
• Action Type: Double Acting
• Rod Type: Single Rod, Non-Rotating
• Maximum Pressure: 1.0 MPa / 145 PSI / 10.2 kgf/cm²

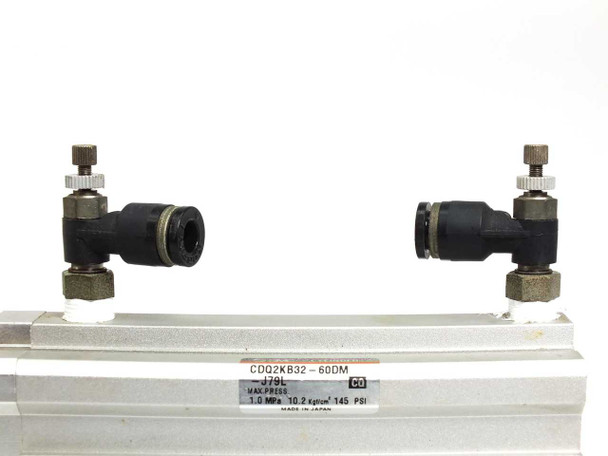

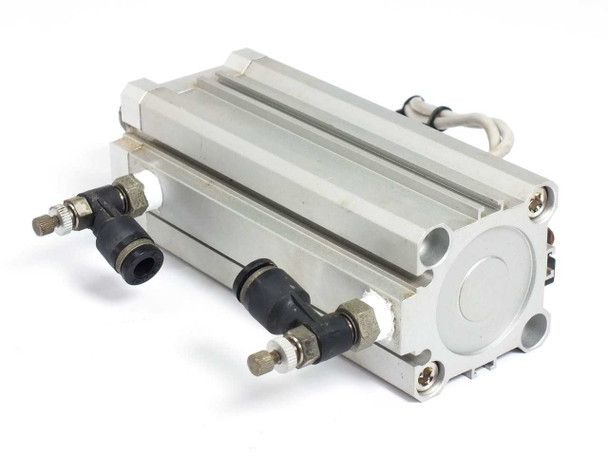

• Port Fittings: Push-to-connect pneumatic elbow fittings attached (both ports)
• Auto-Switch: Wiring leads/auto-switch attached to cylinder body
• Country of Manufacture: Japan

Applications

SMC's CQ2/CDQ2 series compact non-rotating cylinders are widely used in factory automation, assembly machinery, pick-and-place systems, and semiconductor handling equipment where a small footprint and controlled rod orientation are needed. The non-rotating feature eliminates the need for external rotation stops or guides, simplifying fixture design. These cylinders are common in printing machinery, packaging lines, and precision tooling jigs where the end effector or tool mount must stay in a fixed angular position throughout the stroke. SMC is a Japanese manufacturer and one of the leading global suppliers of pneumatic components; the CQ2 series has been a standard workhorse cylinder in light-to-medium industrial automation for decades and remains in current production and widespread use.
