SMC CDQ2KB32-70DM-J79L Non-Rotating Pneumatic Cylinder 32mm Bore 70mm Stroke

(No reviews yet) Write a Review
SKU:
48731
MPN:
CDQ2KB32-70DM-J79L
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • SMC CDQ2KB32-70DM-J79L non-rotating compact pneumatic cylinder — front-left view showing threaded rod end and finned aluminum body with wiring lead
  • SMC CDQ2KB32-70DM-J79L compact cylinder — bottom view showing position sensor and wiring lead attached to cylinder body
  • SMC CDQ2KB32-70DM-J79L cylinder — close-up of label showing model number, max pressure 1.0 MPa 10.2 kgf/cm² 145 PSI, and Made in Japan marking

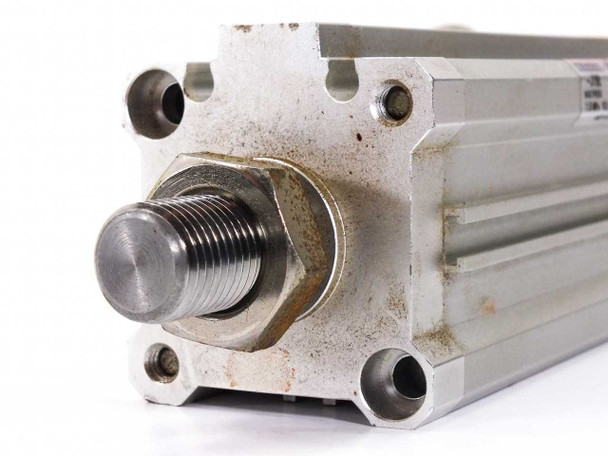

  • SMC CDQ2KB32-70DM-J79L compact cylinder — close-up of threaded non-rotating rod end showing wear and surface oxidation on rod tip
  • SMC CDQ2KB32-70DM-J79L non-rotating cylinder — opposite side view showing full body profile and label with model and pressure ratings
$60.00
Was: $125.00
Current Stock: 1

Sold Out

Description

SMC CDQ2KB32-70DM-J79L Non-Rotating Pneumatic Cylinder 32mm Bore 70mm Stroke

Double-acting compact pneumatic cylinder with 32mm bore and 70mm stroke. Non-rotating single rod design operates on compressed air at up to 1.0 MPa. Position sensor with wiring lead is attached.

Specifications & What's Included

  • Bore diameter: 32mm
  • Stroke length: 70mm
  • Rod diameter: 16mm (non-rotating)
  • Max operating pressure: 1.0 MPa / 145 PSI
  • Action: Double acting
  • Mounting: Compact body (CDQ2KB)
  • Position sensor and wiring lead attached

Applications

SMC CDQ2 compact cylinders are used in industrial automation, machine tooling, packaging equipment, and material handling systems. The non-rotating rod design suits applications requiring linear motion without rotational force. These cylinders integrate into pneumatic control systems and work with standard compressed air infrastructure common in manufacturing facilities.

Condition: Used
This SMC CDQ2KB32-70DM-J79L Non-Rotating Compact Pneumatic Cylinder has been inspected and is in good used condition. The aluminum body is intact with light surface marks and general handling wear consistent with prior use. The threaded rod end shows some surface oxidation and grime at the tip, visible in the photos. The position sensor and wiring lead are attached and present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
CDQ2KB32-70DM-J79L
MPN:
CDQ2KB32-70DM-J79L
Type:
Non-Rotating Compact Pneumatic Cylinder
SKU:
48731
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes attached position sensor wiring lead as shown in photos.
Country/Region of Manufacture:
Japan
Bore Diameter:
32mm
Stroke Length:
70mm
Rod Diameter:
16mm
Max Operating Pressure:
1.0 MPa / 10.2 kgf/cm² / 145 PSI
Action Type:
Double Acting
Rod Type:
Single Rod, Non-Rotating
Series:
CDQ2 / CQ2 Compact Series
Mounting Style:
Compact Body (CDQ2KB)
Fluid Medium:
Compressed Air
Form Factor:
Compact Body
Condition Notes:
SMC CDQ2KB32-70DM-J79L Non-Rotating Compact Pneumatic Cylinder. Inspected and in good used condition. Aluminum body shows light handling wear; rod tip has surface oxidation. Position sensor and wiring lead attached and present.
